Description
Seco
Indexable Slotting Cutter
MSRP: $1400
- Connection Type Arbor
- Cutting Width (mm) 20.50
- Cutting Width (Inch) 5/32
- Maximum Depth of Cut (Decimal Inch) 0.8070
- Hole Diameter (Inch) 3/4
- Hole Diameter (Mm) ( – 0 Decimals) 19.05
- Hole Diameter (Decimal Inch) 0.7500
- Cutter Diameter (Decimal Inch) 3.0000
- Cutter Diameter (Inch) 3
- Cutter Diameter (mm) 76.20
- Cutting Direction Right Hand
- Number Of Cutter Inserts 5
- Compatible Insert Style SNHQ
- Compatible Insert Size Code 1102..
- Tooth Type Staggered
- Rake Negative (Axial); Negative (Radial)
- Series R335.19
- Toolholder Style R335.19
- Hub Diameter (Decimal Inch) 1.5750
- Hub Diameter (mm) 40.00
- Keyway Width (Decimal Inch) 0.3210
- Maximum RPM 15200
- Tool Application Side Milling; Disc Milling; Slotting
- Tool Performance General Purpose
- Primary Workpiece Material Stainless Steel; Steel
- Primary Workpiece Material Code P
- Maximum Cutting Width (Decimal Inch) 0.1560
- Radius No
- Lead Angle 90
- UNSPSC Code 23241629
- Cutter Body Width (Decimal Inch) 0.1560

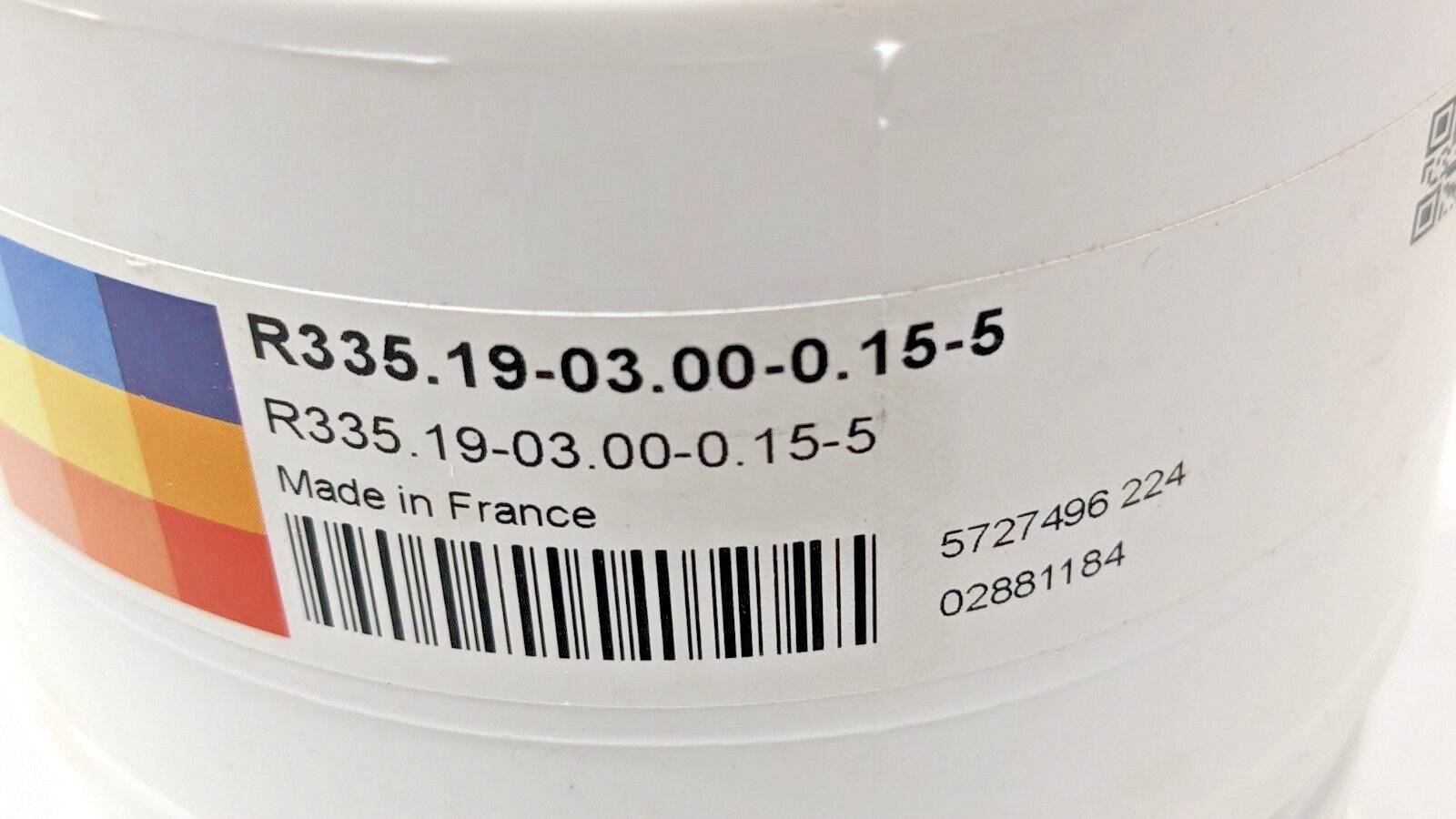

- Manufacturers Catalog Number R335.19-03.00-0.15-5
- Number Of Teeth 10
- Coolant Through No
- Complete Insert Compatibility SNHQ1102..L+R; 335.19-1102
*OPEN BOX. Slotting cutter appears to be in great condition, however it may have been used for testing or demo purposes. Does not include inserts, comes with the accessories you see in photos only. WARRANTY NOT INCLUDED. SOLD AS IS.
Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
September 06 2024
VM13426
VM13426
Cab Zeus Bin 7
BRAND: Seco
MSRP: $1400
INCLUDED ANGLE: 90 degrees
MATERIAL: na
COUNTRY/REGION OF MANUFACTURE: France
MILL CUTTER TYPE: Indexable Slotting Cutter
CUTTING/HEAD DIAMETER: 3 in
SHANK DIAMETER: na
LOCATION: VM13426CabZeusBin7
