Description
SECO
APFT 1604PDTL-D15 Carbide Milling Inserts QTY 10
MSRP: $270
- Insert Size 1604
- Insert Size Code APFT16
- Insert Material Carbide
- Manufacturer’s Grade MP1500
- Coated Coated
- Coating TiCN/Al2O3
- Width (Decimal Inch) 0.3750
- Length (Decimal Inch) 0.6690
- Manufacturer Grade MP1500
- Thickness (Decimal Inch) 0.1870
- Thickness Range (Decimal Inch) 0.1850 – 0.2000
- Chipbreaker D15
- Length Range (Decimal Inch) 0.6500 – 0.7000
- Coating Process CVD
- Number Of Cutting Edges 2
- Insert Shape Parallelogram
- Primary Workpiece Material Code H; P
- Iso Code APFT1604PDTL-D15
- Standards ISO
- Corner Radius (Decimal Inch) 0.0310
- Primary Workpiece Material Universal
- Relief Angle 11.0?
- Rake Angle 8
- Rake Positive
- Included Angle 85
- ISO Number APFT1604PDTL-D15
- Style Parallelogram
- Material Carbide
- Insert Style APFT
- Shape Parallelogram

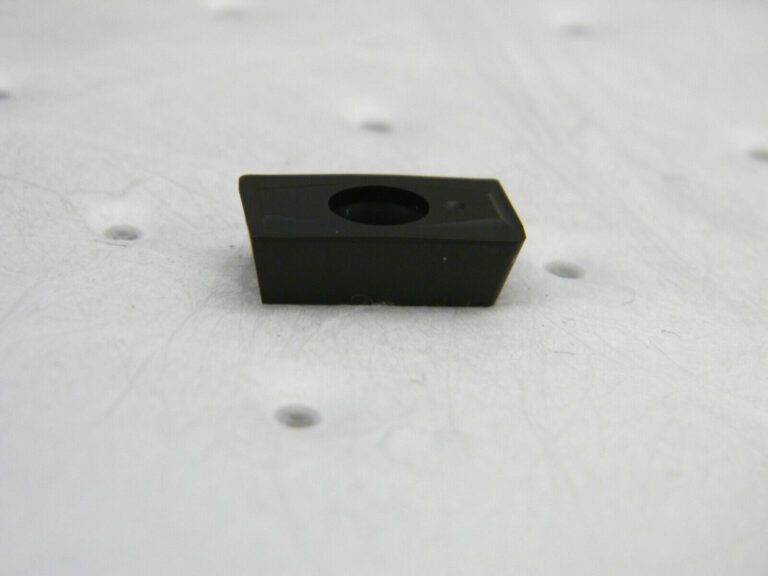

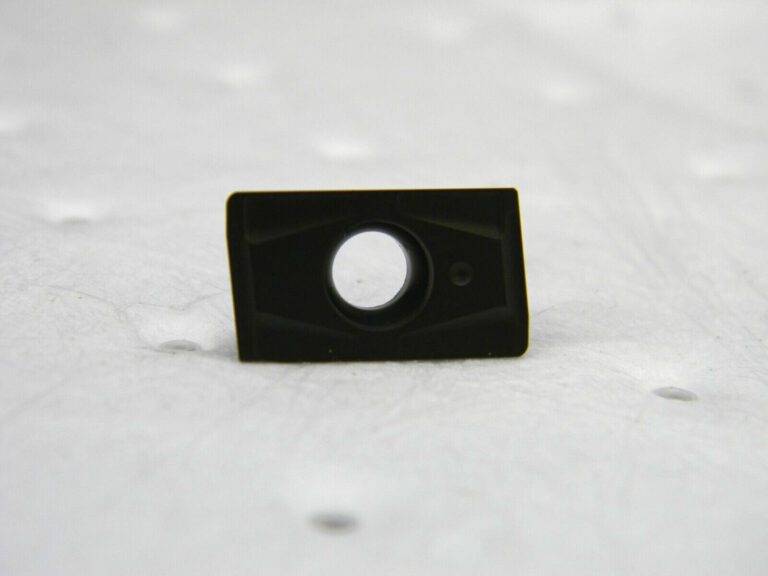

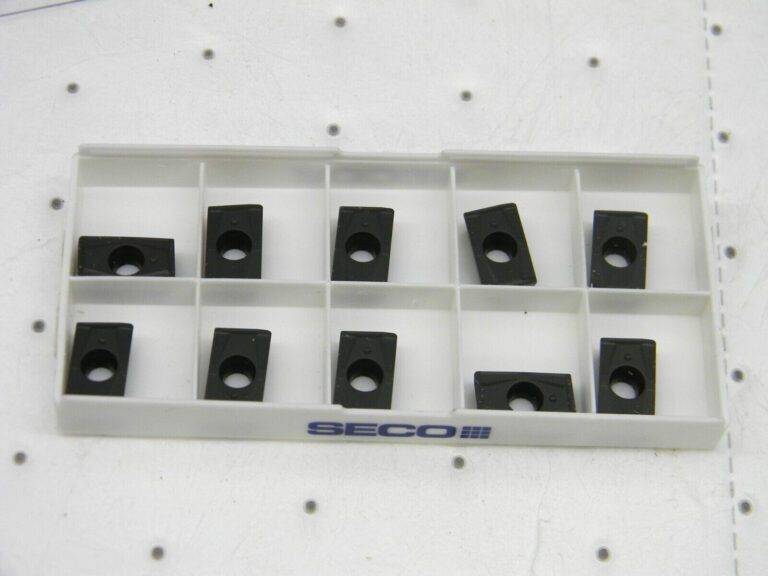

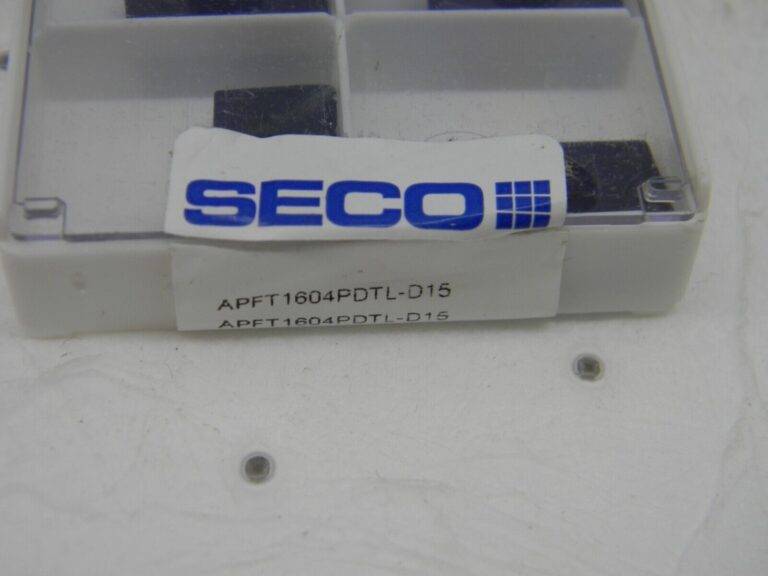

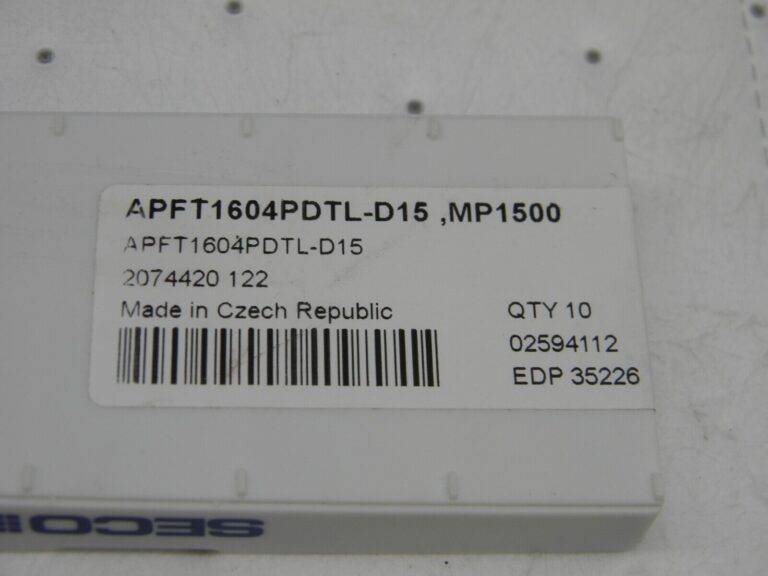

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Nov 23 22
HS046
Marley96
BRAND: SECO
MSRP: $270
INSERT MATERIAL: Carbide
MPN: 02594112
INSERT TYPE: Milling Insert
