Description
SECO
10pc Turning Inserts: TPMR321-M3 TP25, Carbide 03280023
MSRP: $160
- ANSI Insert Code TPMR321
- ISO Insert Code TPMR160304
- Relief Angle 11
- Insert Style TPMR
- Corner Radius (Inch) 1/64
- Corner Radius (Decimal Inch) 0.0157
- Included Angle 60
- Manufacturer Grade TP25
- Coating/Finish TiCN; Al2O3; Cr
- Wiper Edge No
- Insert Hand Neutral
- Insert Thickness (Decimal Inch) 0.1301
- Series TPMR-M3
- Inscribed Circle (Decimal Inch) 0.3750
- Inscribed Circle (Inch) 3/8
- Insert Material Carbide
- Insert Shape T – Triangle
- Chip Breaker Operation Medium Machining; Finishing
- Grade Characteristics Stainless Steel (M) – High Toughness; Steel (P) – Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) – High Toughness
- Side Clearance Positive
- Number Of Cutting Edges 3
- Insert Shape Code T
- Maximum Depth of Cut (Decimal Inch) 0.6339
- Insert Holding Method Clamp
- Clearance Code P
- Tolerance Code M
- Coating Process CVD
- Length Range (Decimal Inch) 0.6000 – 0.6500
- Rake Positive
- Insert Length (Decimal Inch) 0.6496
- Primary Workpiece Material Steel
- Primary Workpiece Material Code P; K; M
- Secondary Workpiece Material Stainless Steel; Cast Iron
- Secondary Workpiece Material Code K; M
- Iso Code TPMR160304-M3
- Standards ISO; ANSI
- Manufacturers Catalog Number 03280023
- Material Grade P35; P30; P20
- Proprietary Coating Designation Multilayer Coating
- Lead Angle 60
- Coating Classification CVD
- Chip Breaker M3
- Rake Angle 17
- Cutting Edge Style Honed; Chamfered
- Industry Standard Number TPMR321-M3
- Width (Decimal Inch – 4 Decimals) 0.6496
- Multi-Use Tool Yes
- Full Radius No
- Multi-Use Application Facing; Turning; Back Turning; Boring
- ANSI Size Code 321
- ISO Size Code 160304
- UNSPSC Code 23242105
- Insert Size Code 321
- Country of Origin Sweden
- Ordered as Part # 03280023
(Description).

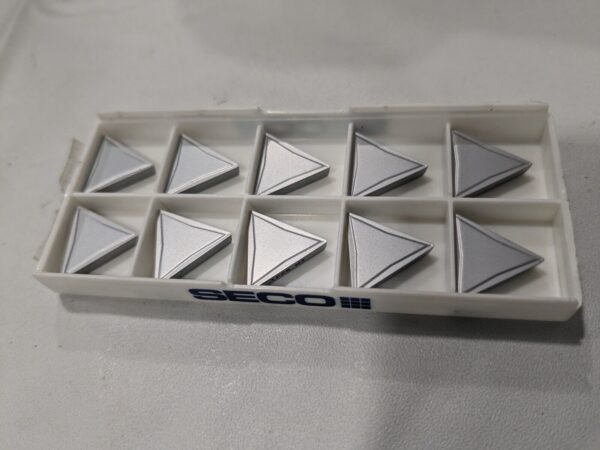

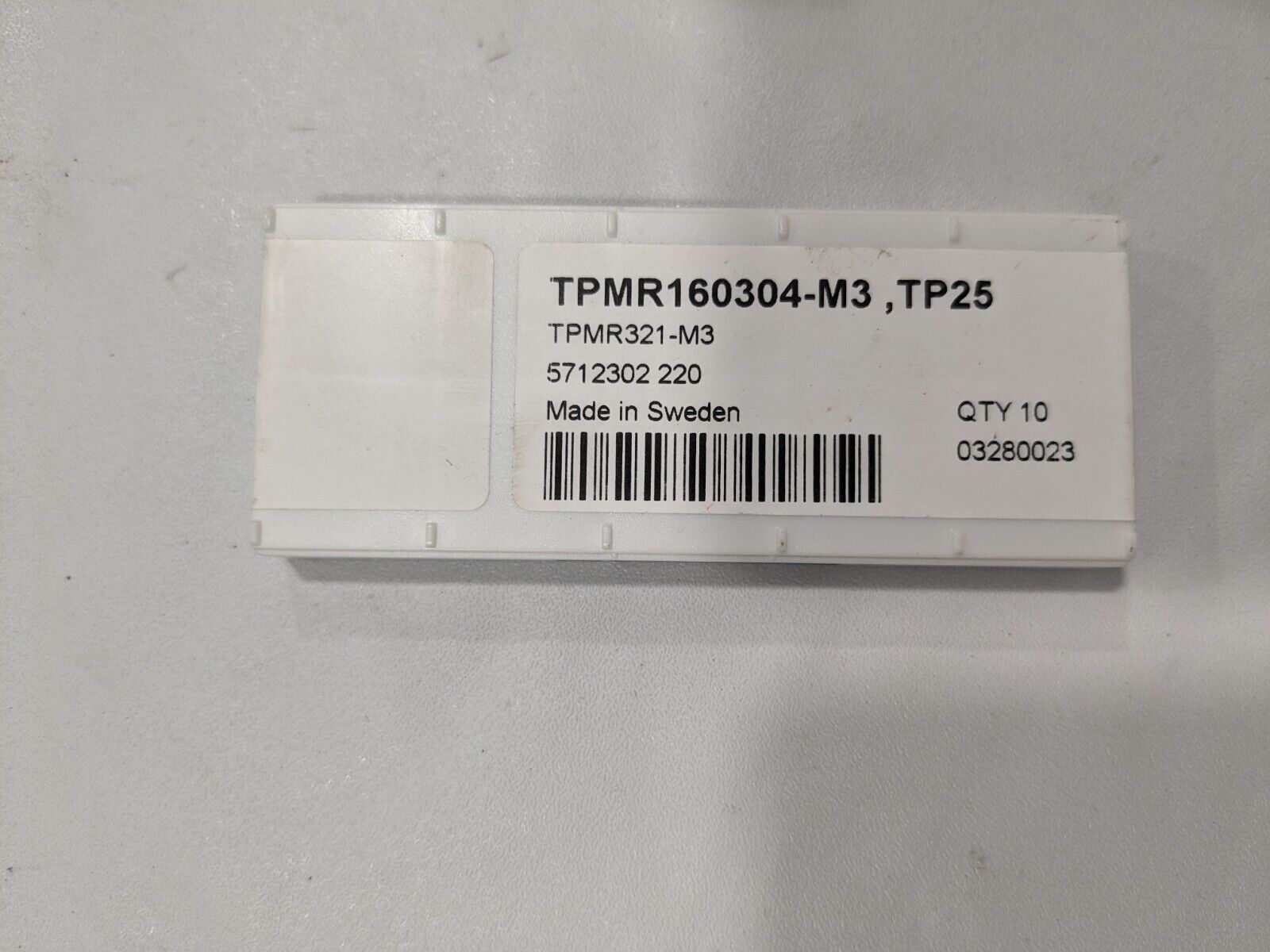

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
January 30th 2025
HS 8373
Henry 57
BRAND: SECO
UNIT TYPE: Unit
INSERT MATERIAL: Carbide
MPN: 03280023
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: Unknown
UNIT QUANTITY: see description
CALIFORNIA PROP 65 WARNING: See description
