Description
Sandvik Coromant
Carbide Turning Insert DNMG432-QM 4305: QTY 5
MSRP: $138.00
- Insert Style DNMG
- ANSI Size Code 432
- Insert Shape D – Diamond (Rhombic) 55-Deg
- Included Angle 55-Deg
- Inscribed Circle (mm) 12.70
- Inscribed Circle (Inch) 1/2 / 0.5000
- Corner Radius (Inch) 1/32 / 0.0313
- Corner Radius (mm) 0.79
- Insert Material Carbide
- Manufacturer Grade 4305
- Coating/Finish TiCN; TiN; AI2O3
- Relief Angle 0
- Wiper Edge No
- Insert Thickness (Inch) 3/16 / 0.1875
- Insert Thickness (mm) 4.76
- Insert Hand Neutral
- Series T-Max P
- Grade Characteristics Steel (P) – High Wear-Resistance
- Chip Breaker Operation Medium Machining; Roughing
- Number Of Cutting Edges 4
- Side Clearance Negative
- Insert Shape Code D
- Hole Diameter (Decimal Inch) 0.2030
- Hole Diameter (Mm) ( – 0 Decimals) 5.16
- ISO Insert Code DNMG150408
- ANSI Insert Code DNMG432
- Insert Holding Method Pin; Clamp
- Clearance Code N
- Tolerance Code M
- Coating Process CVD
- Insert Length (Decimal Inch) 0.5789
- Insert Length (mm) 14.70
- Primary Workpiece Material Steel
- Primary Workpiece Material Code P
- Secondary Workpiece Material Cast Iron
- Secondary Workpiece Material Code K
- Iso Code DNMG 15 04 08-QM 4305
- Chip Breaker QM
- Insert Size Code 432

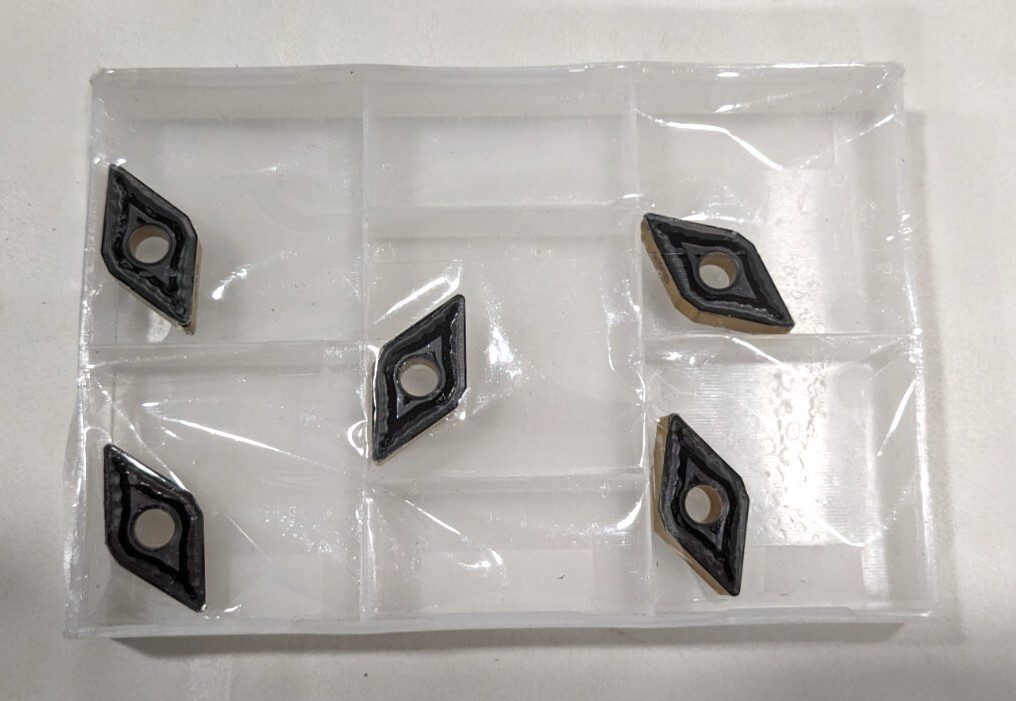

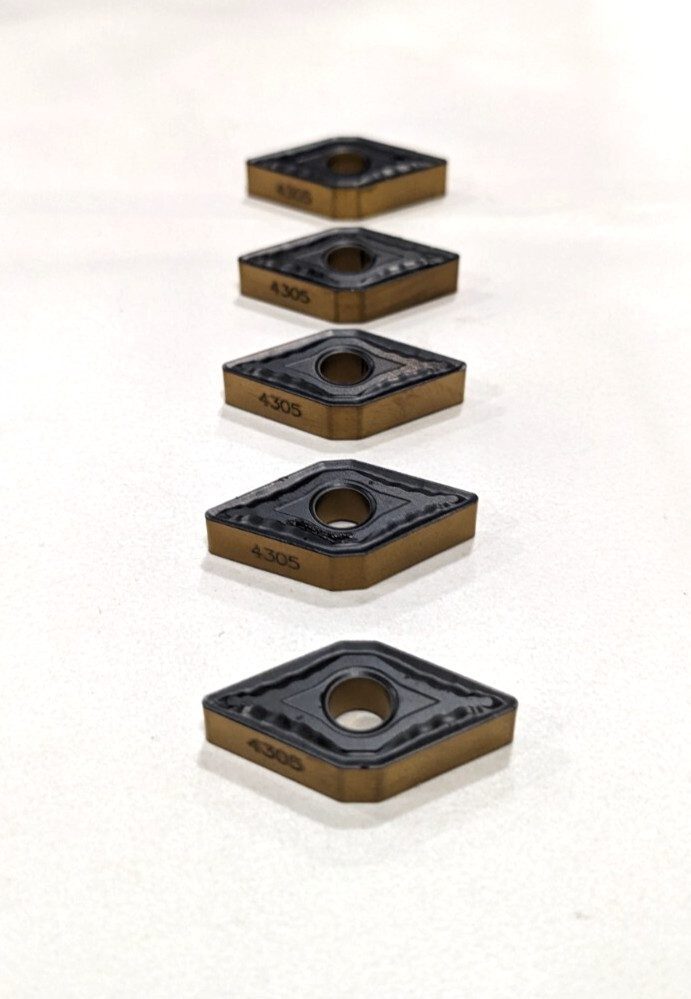

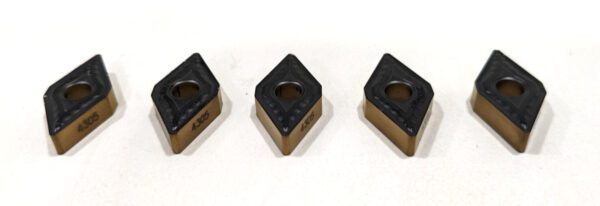

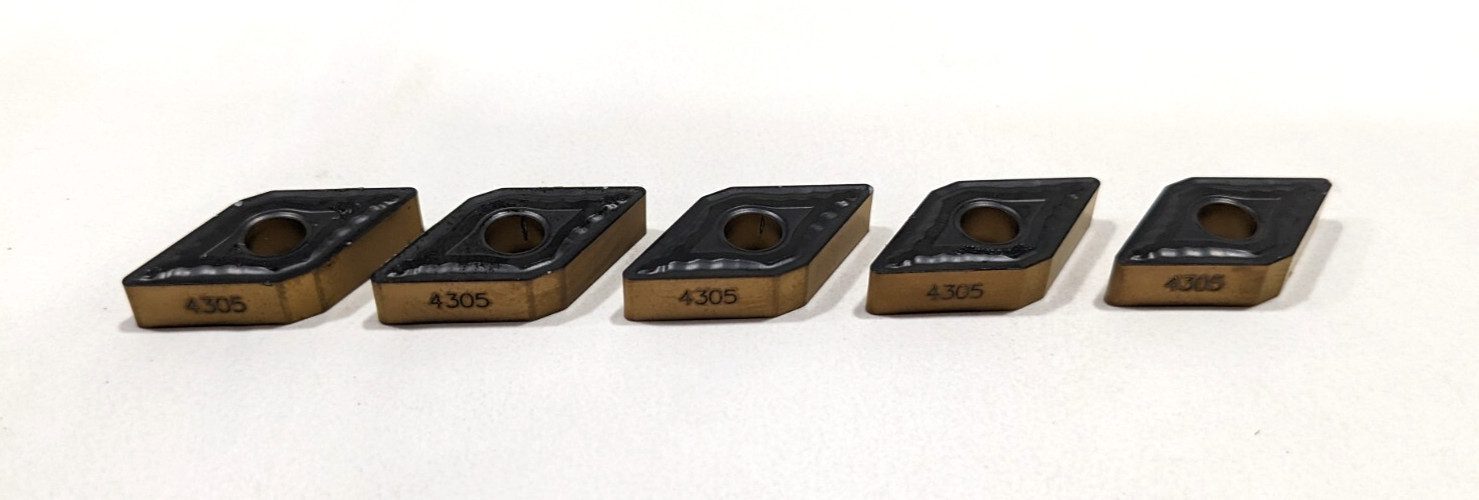

*This listing is for a NEW 5 PACK of Sandvik Turning Inserts DNMG432-QM 4305.
You will receive exactly what is shown in our photos.
SOLD AS IS, WITHOUT WARRANTY.
Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
May 16, 2025
MJ301
ICE 31
BRAND: Sandvik Coromant
MSRP: $138.00
INSERT MATERIAL: Carbide
MPN: 6707408
INSERT TYPE: Turning Insert
LOCATION: MJ301ICE31
