Description
KYOCERA Turning Inserts qty 10: WBGT1211LF TN60, Cermet TSJ03720
MSRP: $230
- Insert Style WBGT
- Insert Size Code 1211
- Insert Shape Trigon 80°
- Included Angle 80
- Inscribed Circle (Decimal Inch) 0.1563
- Corner Radius (Decimal Inch) 0.0156
- Insert Material Cermet
- Manufacturer Grade TN60
- Coating/Finish TiCN; NbC
- Relief Angle 5
- Wiper Edge No
- Insert Thickness (Decimal Inch) 0.0625
- Insert Hand Left Hand
- Number Of Cutting Edges 3
- Insert Shape Code W
- Corner Radius (Inch) 1/64
- Hole Diameter (Decimal Inch) 0.0906
- Maximum Depth of Cut (Decimal Inch) 0.1313
- Inscribed Circle (Inch) 5/32
- Insert Holding Method Screw
- Insert Thickness (Inch) 1/16
- Clearance Code B
- Tolerance Code G
- Series ISOI
- Coating Process Uncoated
- Length Range (Decimal Inch) 0.3000 – 0.4000
- Rake Positive
- Insert Length (Decimal Inch) 0.3940
- Primary Workpiece Material Steel
- Primary Workpiece Material Code P
- Secondary Workpiece Material Stainless Steel
- Iso Code WBGT060104L-F
- Standards ISO; ANSI
- Manufacturers Catalog Number TSJ03720
- Material Grade P01; P10; P20
- UNSPSC Code 23242105
- Coating Classification Uncoated
- Chip Breaker F
- Rake Angle 15
- Cutting Edge Style Sharp
- Industry Standard Number WBGT1211LFTN60
- Width (Decimal Inch – 4 Decimals) 0.394
- Multi-Use Tool Yes
- Full Radius No
- Multi-Use Application Internal Facing; Boring

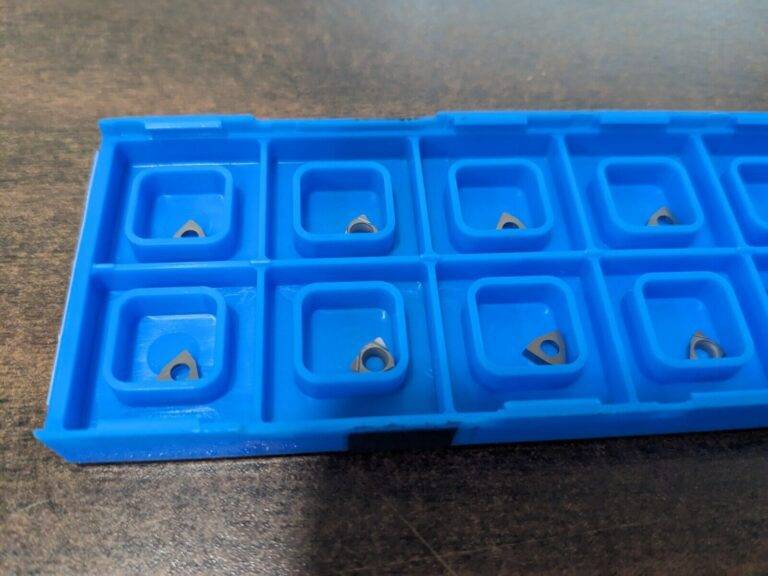

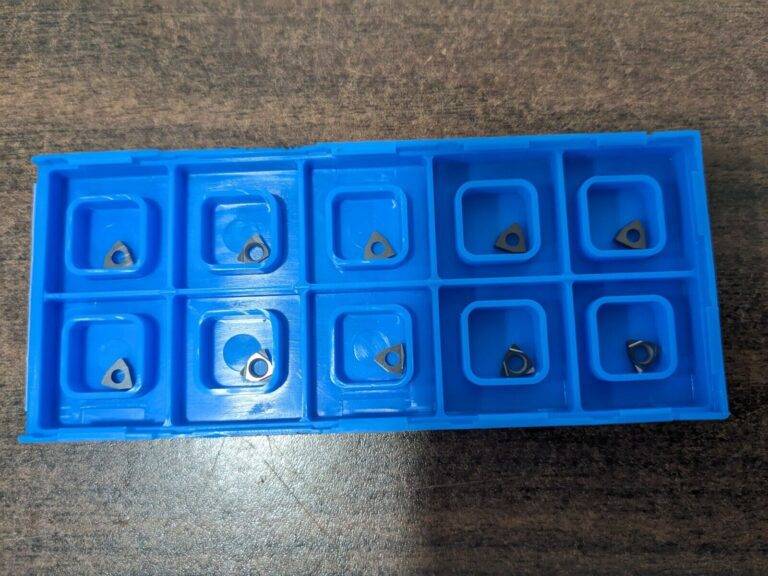

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
apr 08 24
HS5007
bw2-10
BRAND: Kyocera
INSERT MATERIAL: Cermet
MPN: TSJ03720
INSERT TYPE: Turning Insert
