Description
KYOCERA
Turning Insert: TPGR221LA TN60, Cermet qty 10 TSJ02720
MSRP: $140
- Insert Style TPGR
- Insert Size Code 221
- Insert Shape Triangle
- Included Angle 60
- Inscribed Circle (Decimal Inch) 0.2500
- Corner Radius (Decimal Inch) 0.0156
- Insert Material Cermet
- Manufacturer Grade TN60
- Coating/Finish TiCN; NbC
- Relief Angle 11
- Insert Thickness (Decimal Inch) 0.1250
- Insert Hand Left Hand
- Number Of Cutting Edges 3
- Insert Shape Code T
- Corner Radius (Inch) 1/64
- Inscribed Circle (Inch) 1/4
- Insert Holding Method Clamp
- Insert Thickness (Inch) 1/8
- Clearance Code P
- Tolerance Code G
- Series ISOI
- Coating Process Uncoated
- Length Range (Decimal Inch) 0.4000 – 0.5000
- Rake Positive
- Insert Length (Decimal Inch) 0.4330
- Primary Workpiece Material Steel
- Primary Workpiece Material Code P
- Secondary Workpiece Material Stainless Steel
- Secondary Workpiece Material Code M
- Iso Code TPGR110304L-A
- Standards ISO; ANSI
- Material Grade C3; C4; C6; C7; C8; C2
- UNSPSC Code 23242105
- Chip Breaker A
- Rake Angle 17

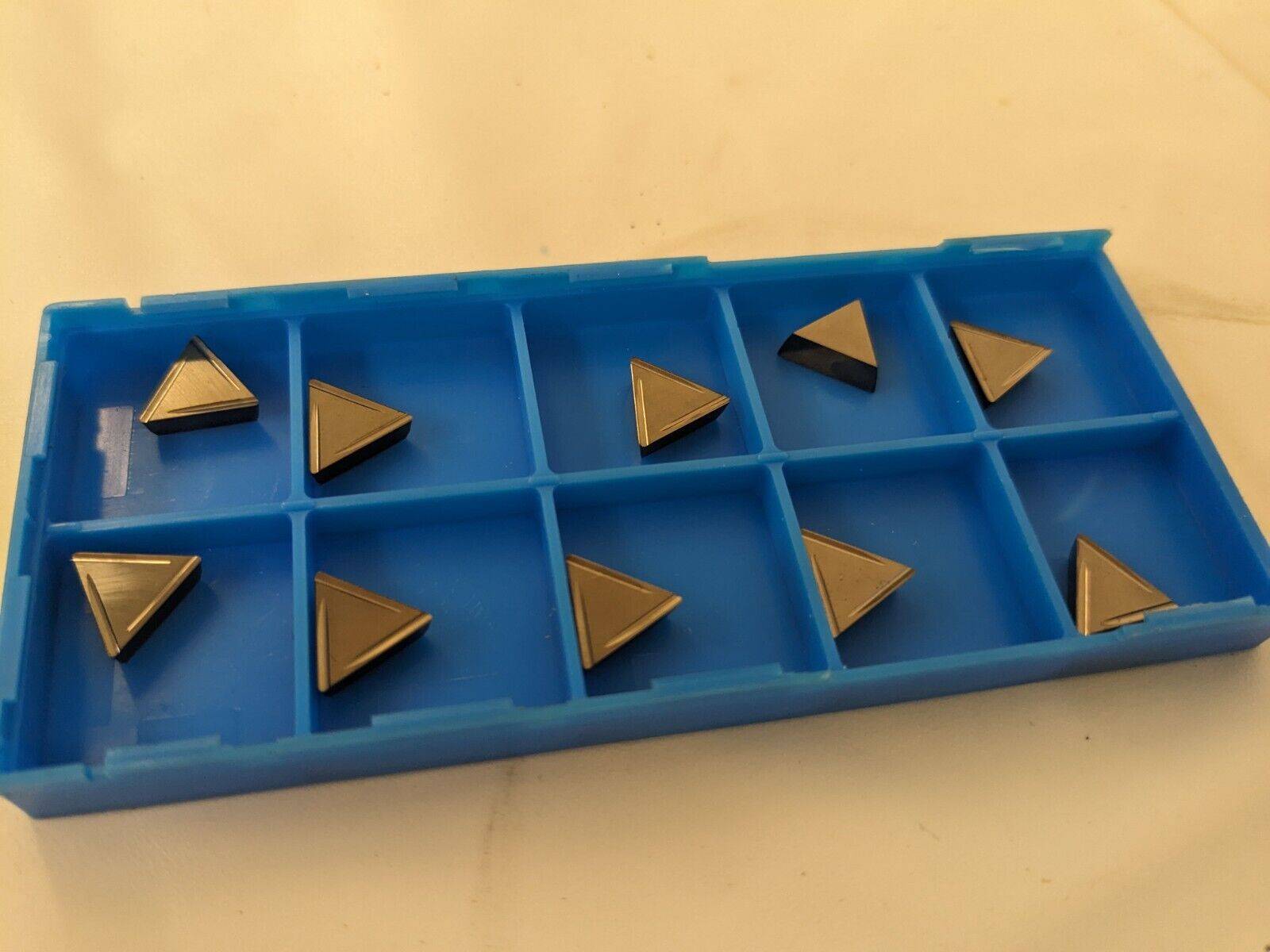

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
NOV 17 23
HS3635
TURTLE 30
BRAND: Kyocera
INSERT MATERIAL: Cermet
MSRP: $140
MPN: TSJ02720
INSERT TYPE: Turning Insert
