Description
Kennametal
1 Lot of 5 Turning Inserts
MSRP: $100.00
- ANSI Insert Code CCMT2152
- ISO Insert Code CCMT060208
- Relief Angle 7
- Insert Style CCMT
- Corner Radius (Inch) 1/32
- Corner Radius (Decimal Inch) 0.0313
- Included Angle 80
- Manufacturer Grade KCS10
- Coating/Finish AlTiN
- Wiper Edge No
- Insert Hand Neutral
- Insert Thickness (Inch) 3/32
- Insert Thickness (Decimal Inch) 0.0938
- Series Screw-On
- Inscribed Circle (Decimal Inch) 0.2500
- Inscribed Circle (Inch) 1/4
- Insert Material Carbide
- Insert Shape C – Diamond (Rhombic) 80-Deg
- Chip Breaker Operation Finishing
- Grade Characteristics Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) – High Wear-Resistance; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
- Side Clearance Positive
- Number Of Cutting Edges 2
- Insert Shape Code C
- Hole Diameter (Decimal Inch) 0.1102
- Hole Diameter (Mm) ( – 0 Decimals) 2.80
- Maximum Depth of Cut (Decimal Inch) 0.0845
- Insert Holding Method Screw
- Width (Inch) 1/4
- Clearance Code C
- Tolerance Code M
- Coating Process PVD
- Length Range (Decimal Inch) 0.0000 – 0.3000
- Rake Positive
- Insert Length (Decimal Inch) 0.2539
- Insert Length (mm) 6.45
- Primary Workpiece Material Stainless Steel; Superalloys & Titanium
- Primary Workpiece Material Code P; S; H; K; M; N
- Secondary Workpiece Material Code P; K; N
- Standards ISO; ANSI
- Manufacturers Catalog Number 3769292
- Material Grade C3; C4
- Coating Classification PVD
- Chip Breaker FP
- Rake Angle 15
- Cutting Edge Style Honed
- Industry Standard Number CCMT2152FP
- Width (Decimal Inch – 4 Decimals) 0.2500
- Multi-Use Tool Yes
- Full Radius No
- Multi-Use Application Facing; Turning; Boring
- ANSI Size Code 2152
- ISO Size Code 060208
- UNSPSC Code 23242105
- Insert Size Code 2152
These items appear to be new and in good condition. SOLD AS IS.

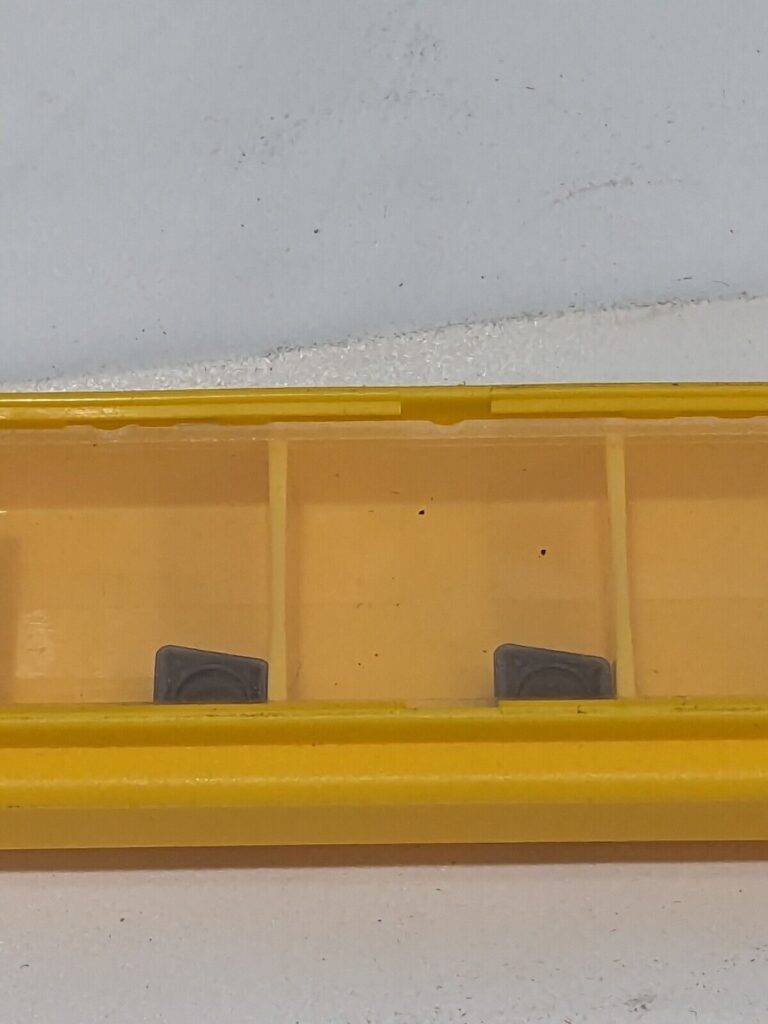

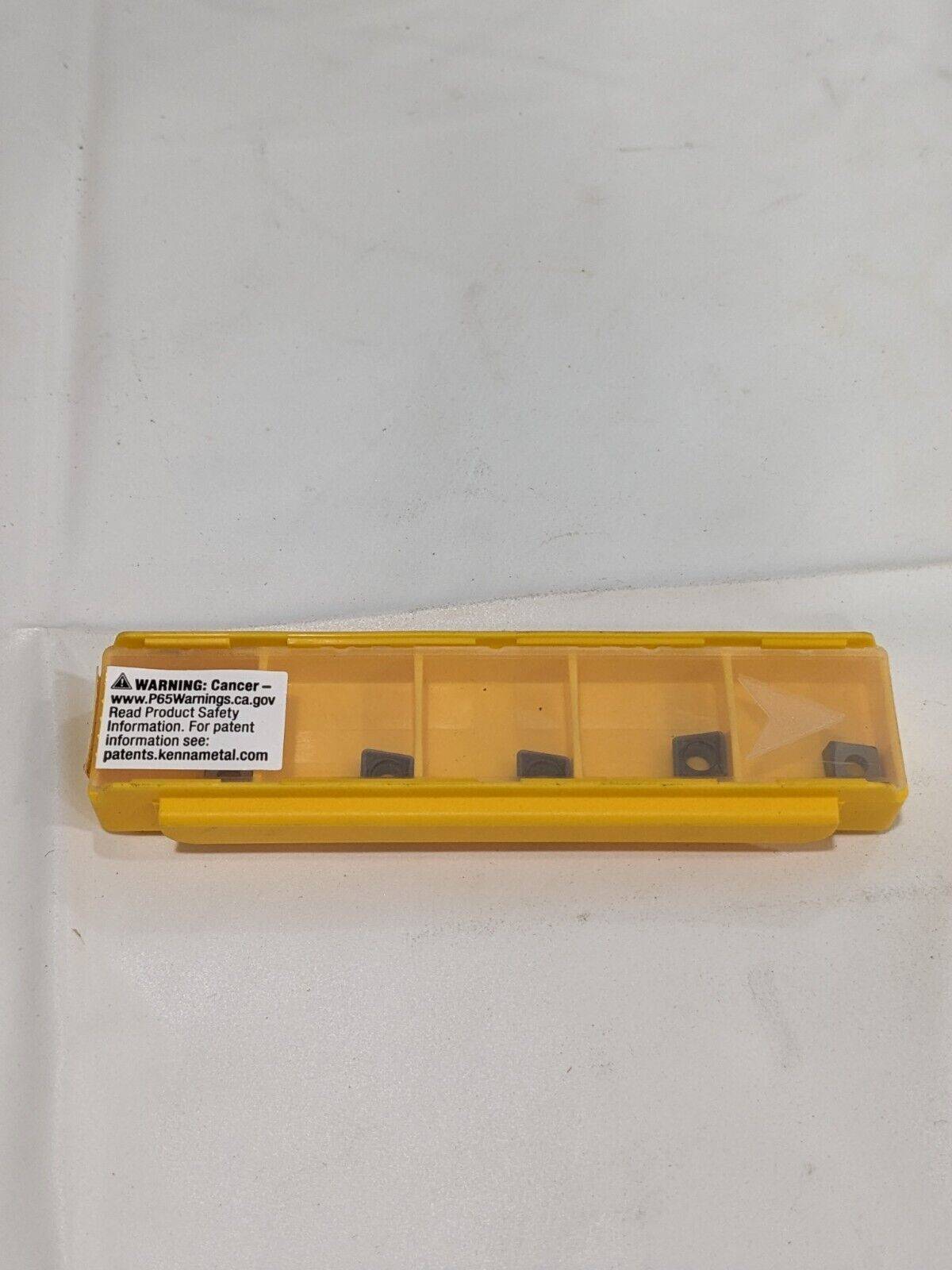

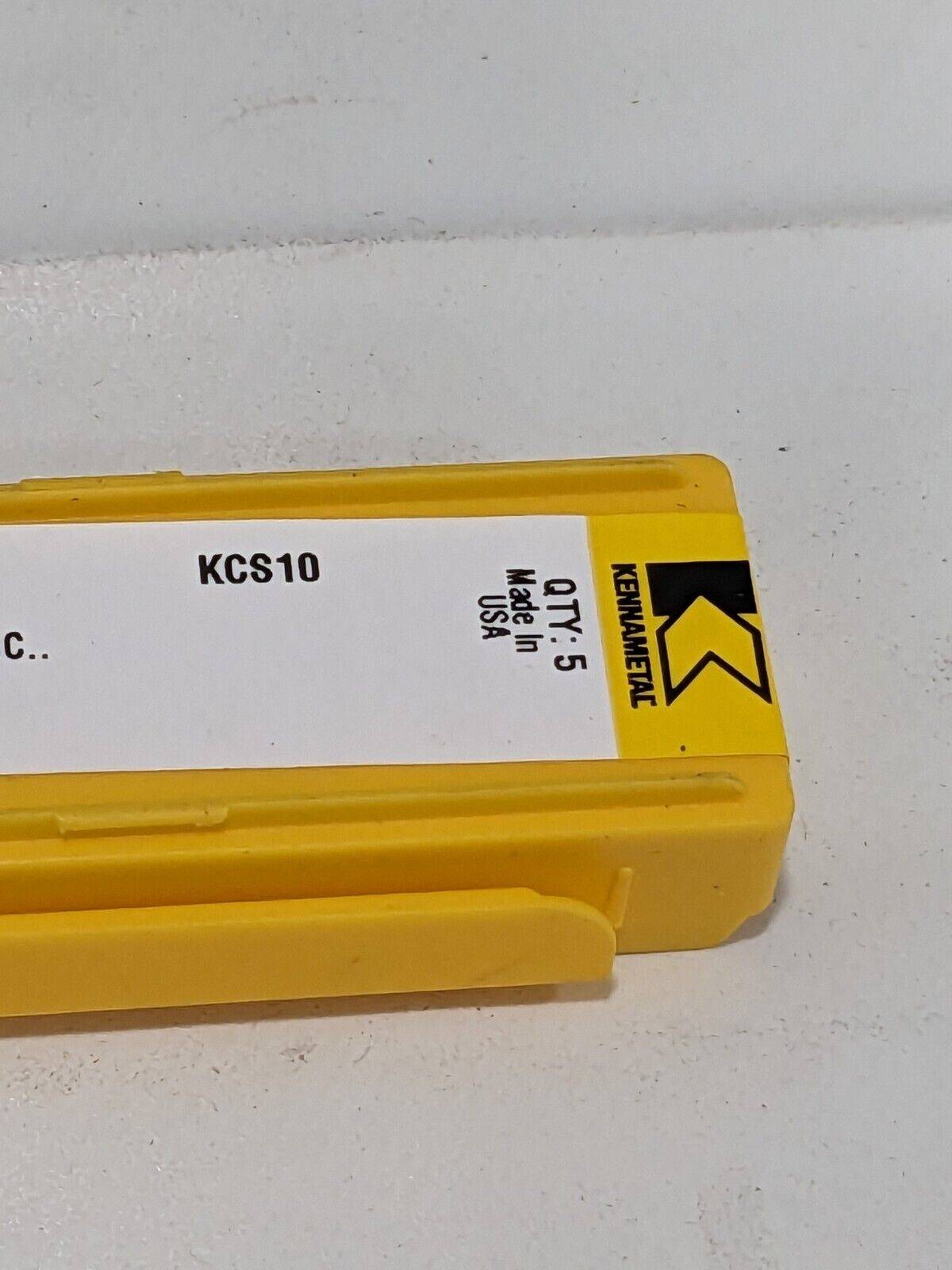

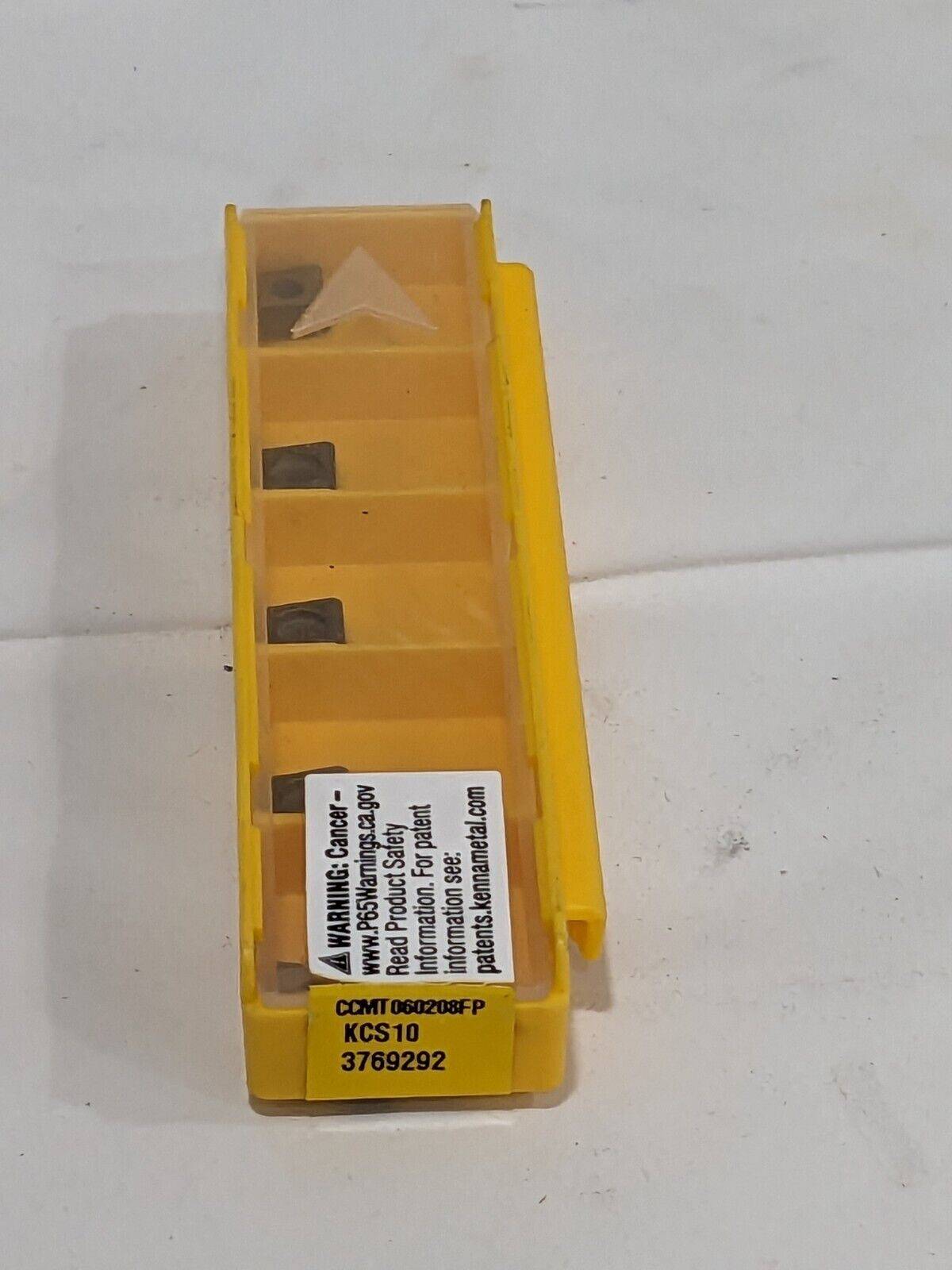

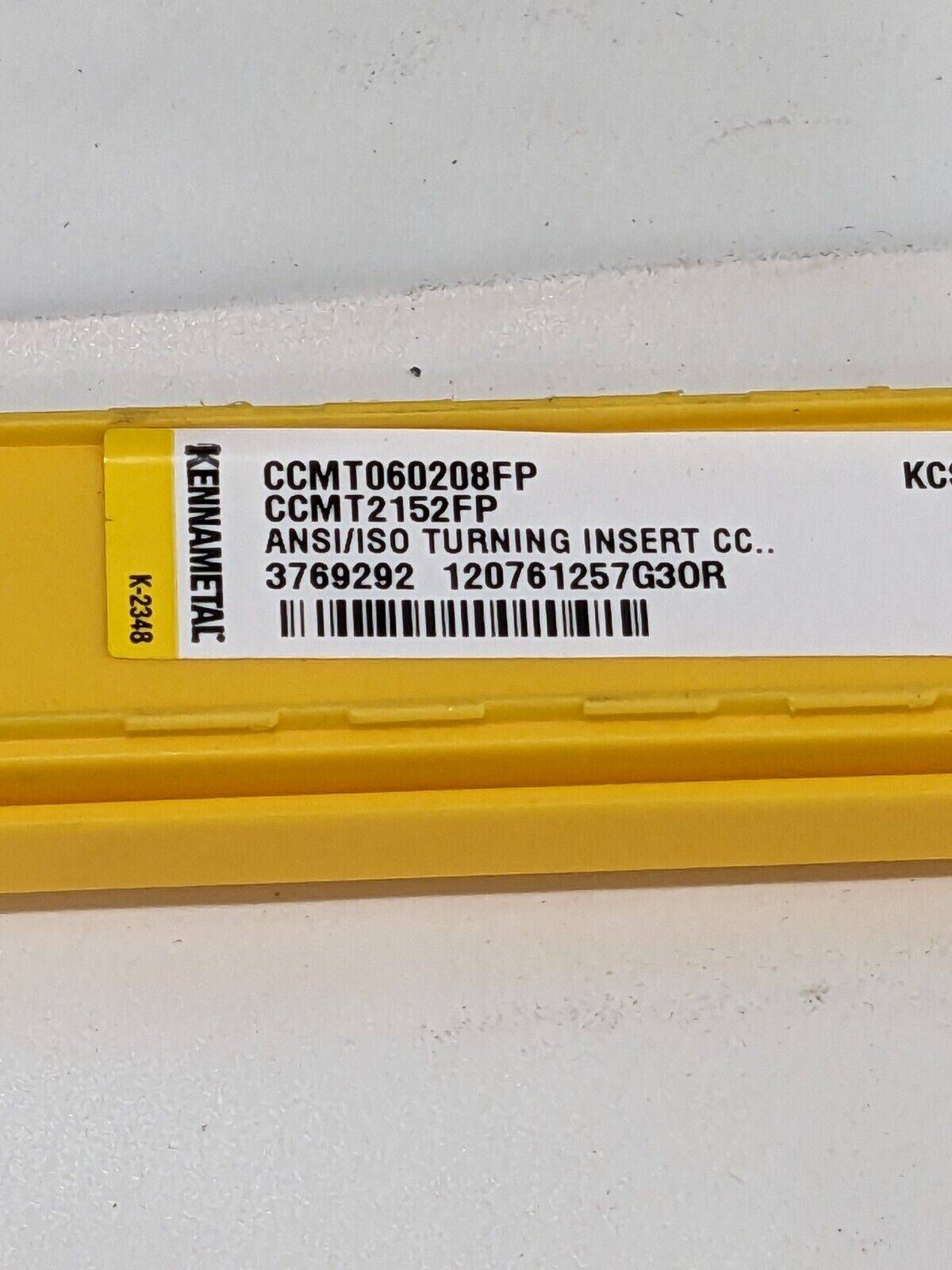

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
February 19 2025
TB 18853
BW 1 Bin 26
BRAND: Kennametal
MSRP: $100.00
UNIT TYPE: Unit
INSERT MATERIAL: Carbide
MODEL: 3769292
MPN: Does Not Apply
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: Unknown
UNIT QUANTITY: N/A
CALIFORNIA PROP 65 WARNING: N/A
LOCATION: TB18853BW1Bin26
