Description
Kennametal
One Pack of 5 Carbide Turning Inserts
- Insert Style: SCMT
- Insert Size: 32.51
- Material: Carbide
- Inscribed Circle (Inch) : 3/8
- Thickness (Inch) : 5/32
- Corner Radius (Inch) : 1/64
- Manufacturer’s Grade: KC9320
- Coating: TiCN/Al2O3
- Material Grade: C3/C4
- Chip Breaker: LF
- Hole Diameter (mm): 4.40
- Hole Diameter (Decimal Inch): 0.1732
- Rake: Positive
- Rake Angle: 5
- Relief Angle: 7
- Coating Process: CVD
- Included Angle: 90
- Series: Screw-On
- Maximum Depth of Cut (mm) : 1.25
- Maximum Depth of Cut (Decimal Inch): 0.0492
- Insert Holding Method: Screw
- Shape: Square

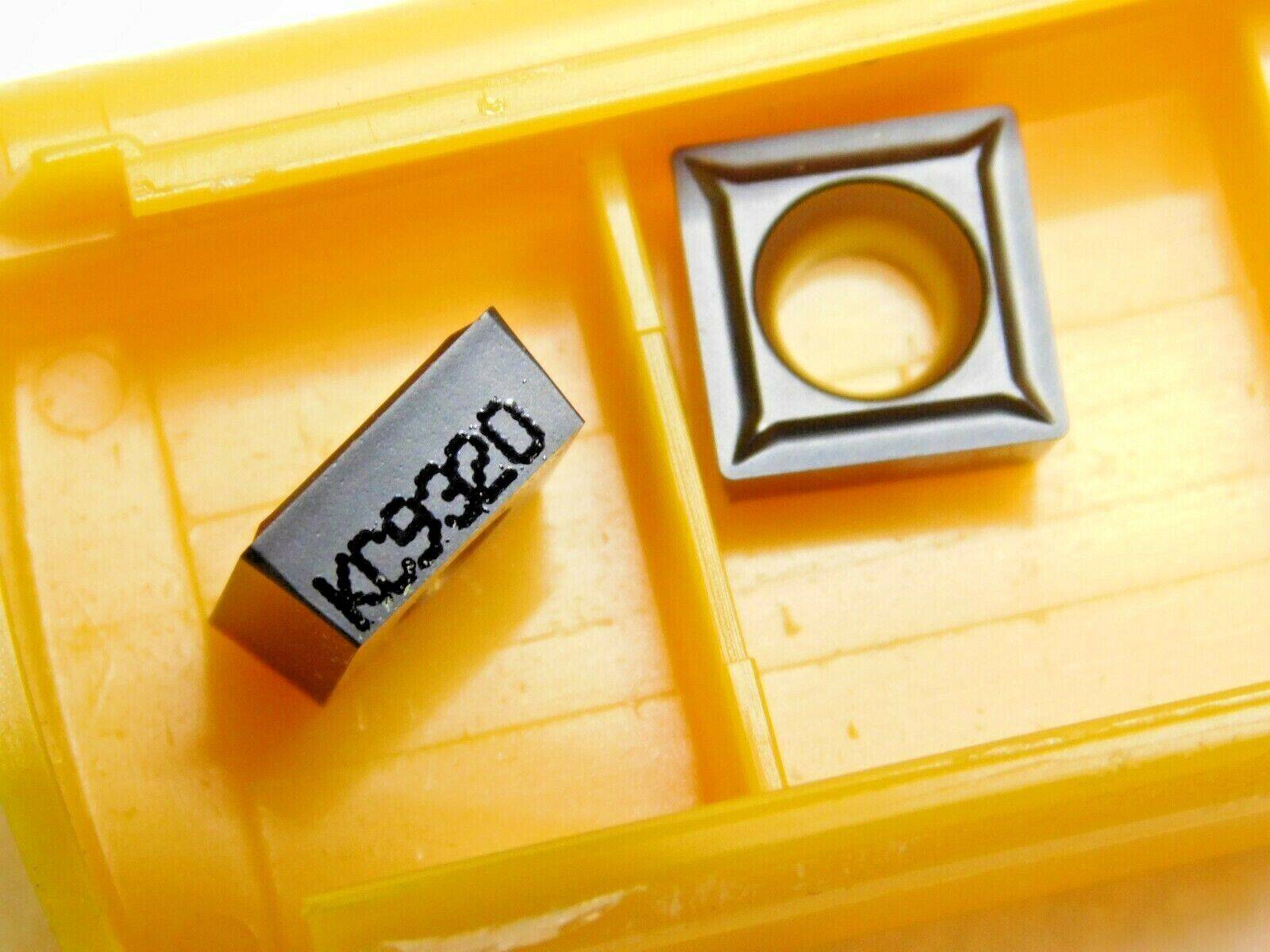

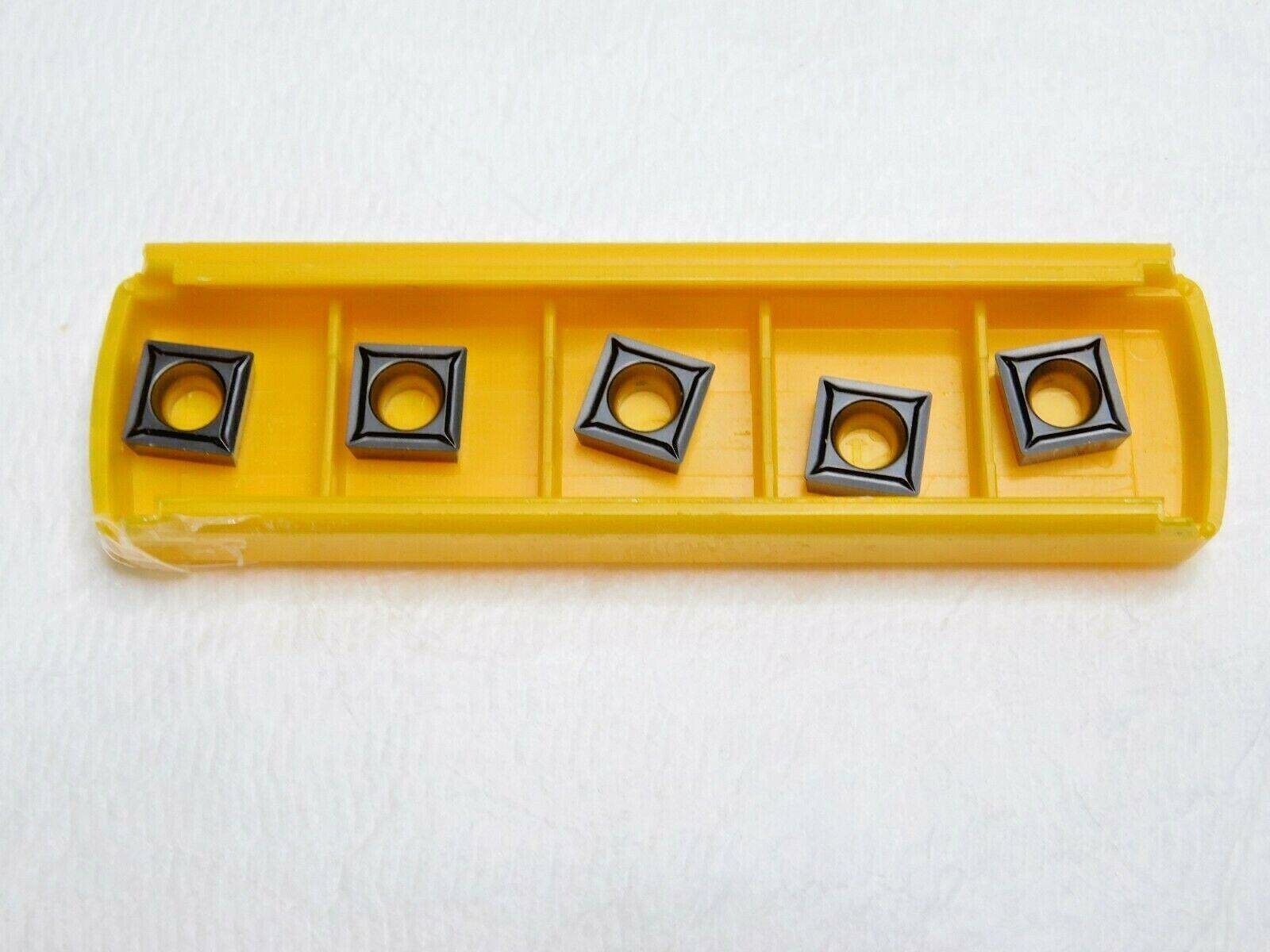

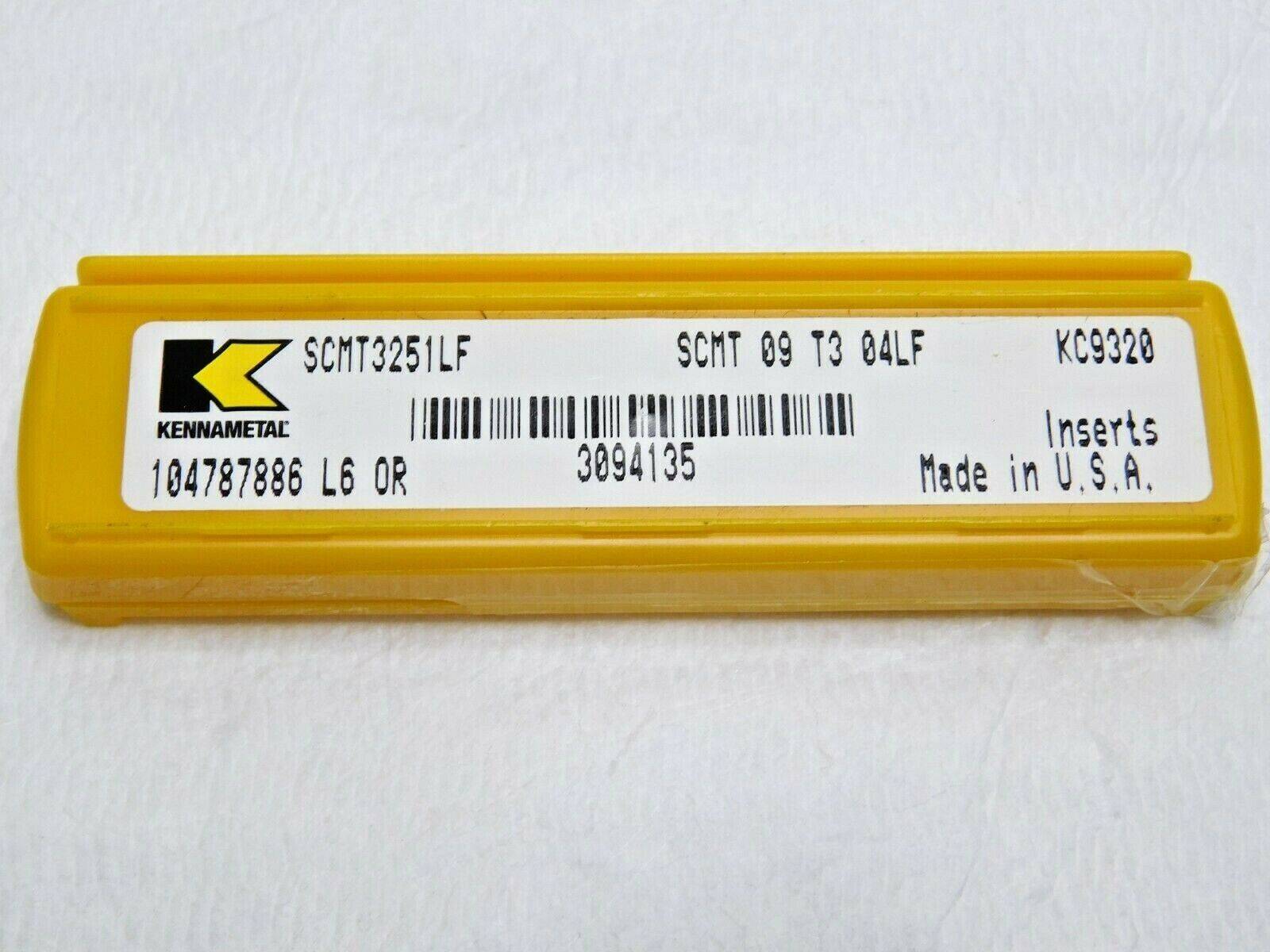

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
March 29 21
VM9790
Cab Chuck Bin 82
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: United States
MODEL: 3094135
MSRP: $50
GRADE: KC9320
MPN: Does Not Apply
BRAND: Kennametal
INSERT MATERIAL: Carbide
LOCATION: VM9790cabchuckbin82
