Description
BRAND Kennametal
Item
- specs
Thread Size (Inch) 7/16-20
Chamfer Plug
Thread Limit H3
Number of Flutes 3
Material Vanadium High Speed Steel
Finish/Coating AlCrTiN
Thread Direction Right Hand
Flute Direction Left Hand
Through Coolant NonThrough Coolant
Overall Length (Decimal Inch) 3.1600
Overall Length (Inch) 3-5/32
Overall Length (mm) 80.30
Helix Angle 10
Thread Standard UNF
Thread Length (Decimal Inch) 0.7100
Thread Length (mm) 18.00
Flute Type Slow Spiral
Series/List T690
Neck Length (Decimal Inch) 0.7800
Tapping Depth (Decimal Inch) 1.4900
Tapping Depth (mm) 38.00
Shank Diameter (Decimal Inch) 0.3230
Shank Diameter (mm) 8.20
Material Application Nickel Alloys
(Description).

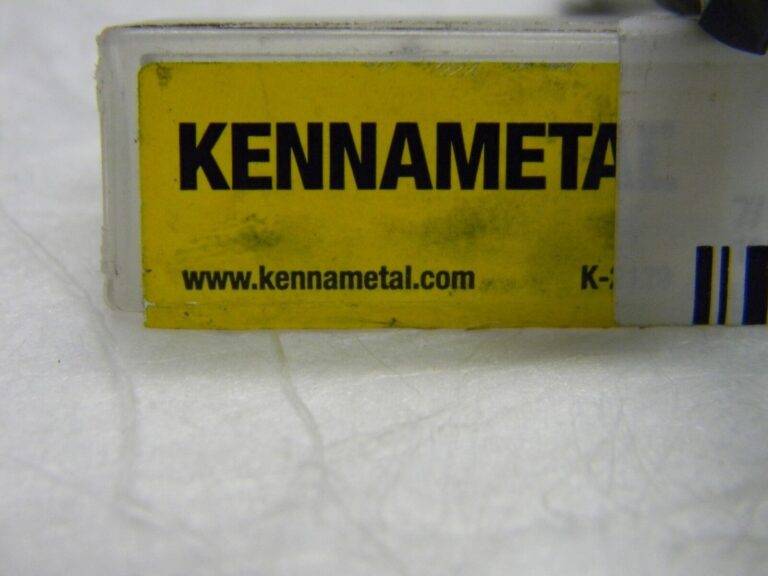

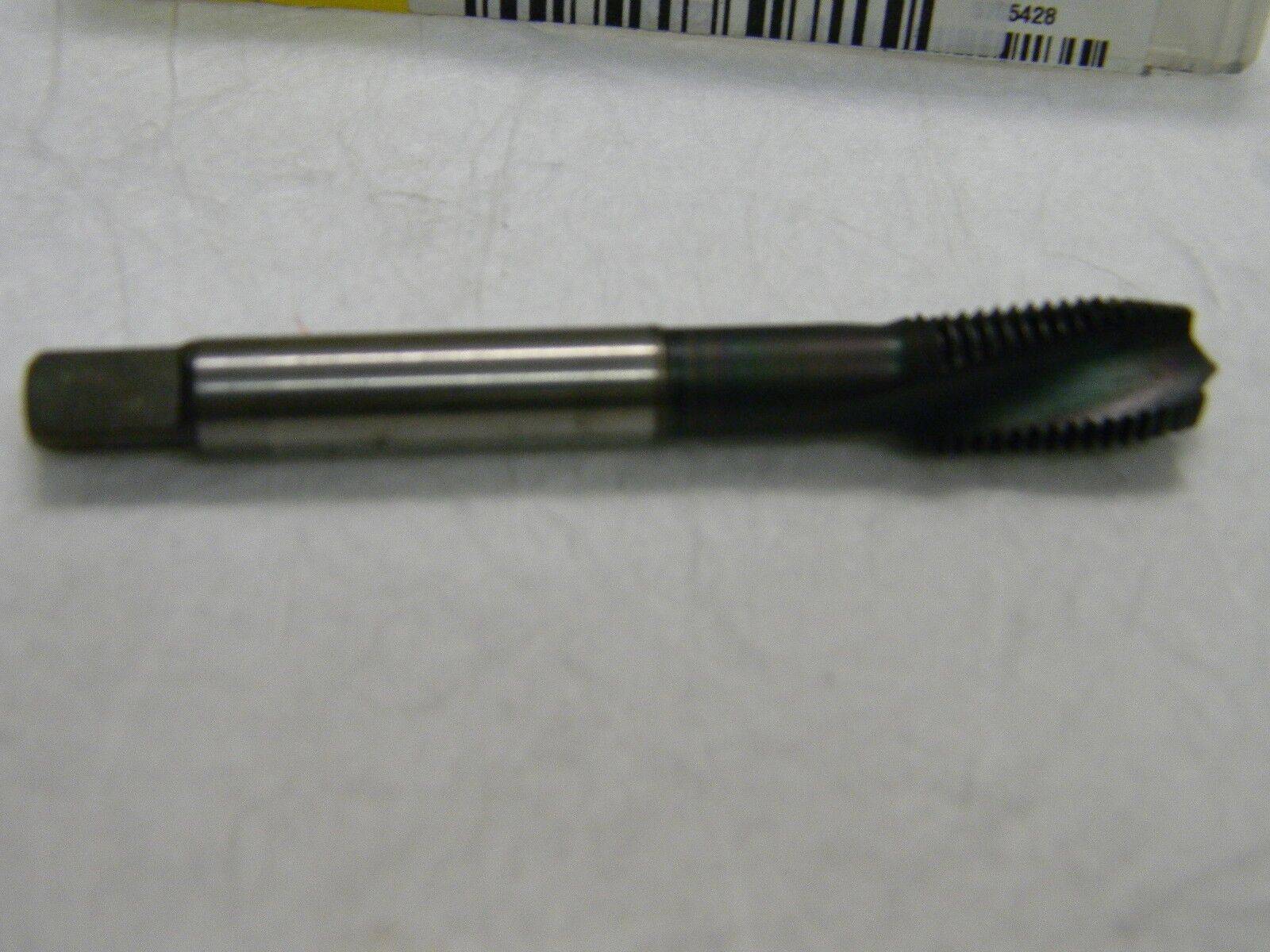

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date Nov 01 21
Lister# CM 11274
Loc XX 1
MSRP: 50.00
COUNTRY/REGION OF MANUFACTURE: United States
MPN: 5705428
BRAND: Kennametal
