Description
Widia GTD
MSRP: $150
Model: 86528
Description:
Thread Size (mm) :M3x0.50
Chamfer:Modified Bottoming
Class of Fit:6H
Thread Limit:D3
Number of Flutes:3
Material:Vanadium High Speed Steel
Finish/Coating:Nitride
Thread Direction:Right Hand
Flute Direction:Right Hand
Through Coolant:NonThrough Coolant
Overall Length (Decimal Inch):2.2100
Helix Angle:45
Thread Standard:Metric Coarse
Thread Length (Decimal Inch):0.4330
Flute Type:Fast Spiral
Series/List:EM-AL
Neck Length (Decimal Inch):0.2760
Shank Diameter (Decimal Inch):0.1410
Material Application:Copper; Magnesium Alloy; Non-Ferrous Metals; Wrought Aluminum; Zinc

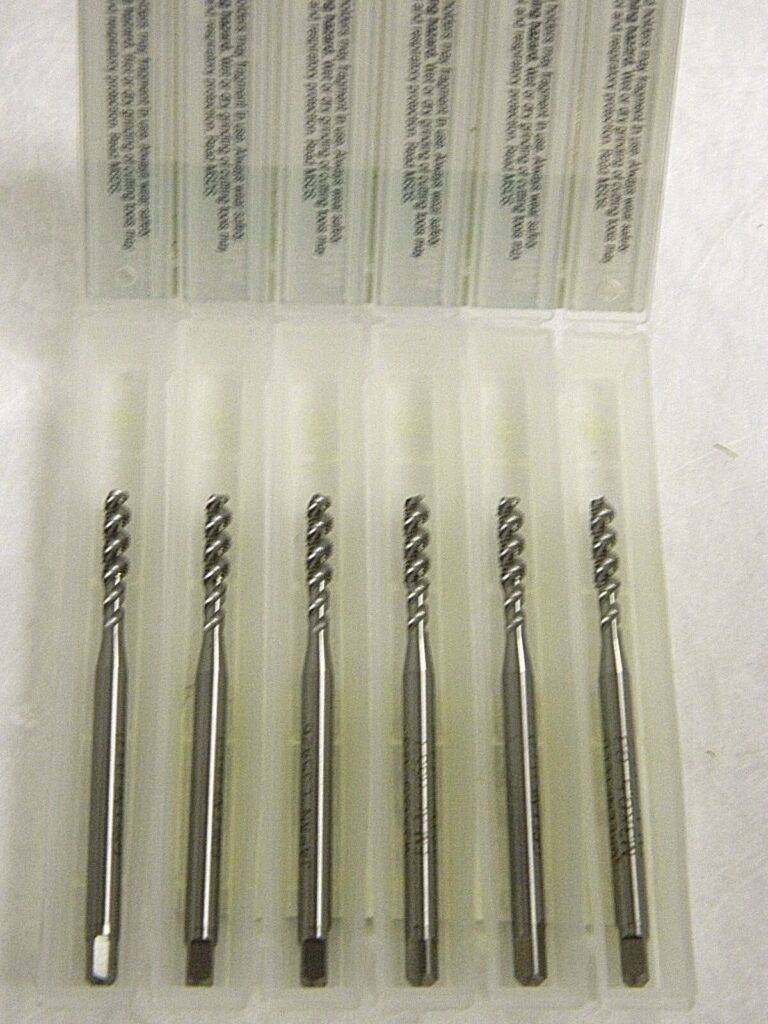

This listing is for One Lot of 6 Spiral Flute Taps that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Vivian Sept 2617
VM1187
Cab Pete Bin 46
TAP TYPE: Spiral Flute Tap
LOCATION: VM1187cabpetebin46
COUNTRY/REGION OF MANUFACTURE: Japan
MPN: Does Not Apply
BRAND: Widia GTD
MSRP: $150
MODEL: 86528
