ISCAR
HCP 0984-IQ IC908 Carbide Replaceable Tip Drill 5567365
MSRP: $160
- Tip Material Solid Carbide
- Manufacturer Grade IC908
- Material Grade Submicron
- Cutting Direction Right Hand
- Series HCP-IQ
- Coating Process PVD
- Insert Geometry P
- Insert Seat Size 25
- Functional Length (Decimal Inch) 0.3460
- Primary Workpiece Material Cast Iron; Steel
- Primary Workpiece Material Code P; K
- Secondary Workpiece Material Hard Material; Stainless Steel; Superalloys & Titanium
- Secondary Workpiece Material Code S; H; M
- Standards ISO 13399
- Height (Decimal Inch) 0.571
- Height (mm) 14.5
- Overall Length/Projection (Decimal Inch) 0.5710
- Cutting Diameter (mm) 25.00
- Web Thinning Web Thinned
- Drill Point Angle 137
- Flute Type Spiral
- Insert Holding Method Twist
- ISO Number HCP 250-IQ
- Coolant Through No
- Cutting Diameter (Decimal Inch) 0.9840
- Point Type Self Centering
- Cutting Diameter (Inch) 63/64
- Spiral Type Slow
- Style Deep Hole; Self-Centering
- Applications Drilling
- Coating/Finish TiAlN
- Included Angle Degree 137
- Number Of Flutes 2

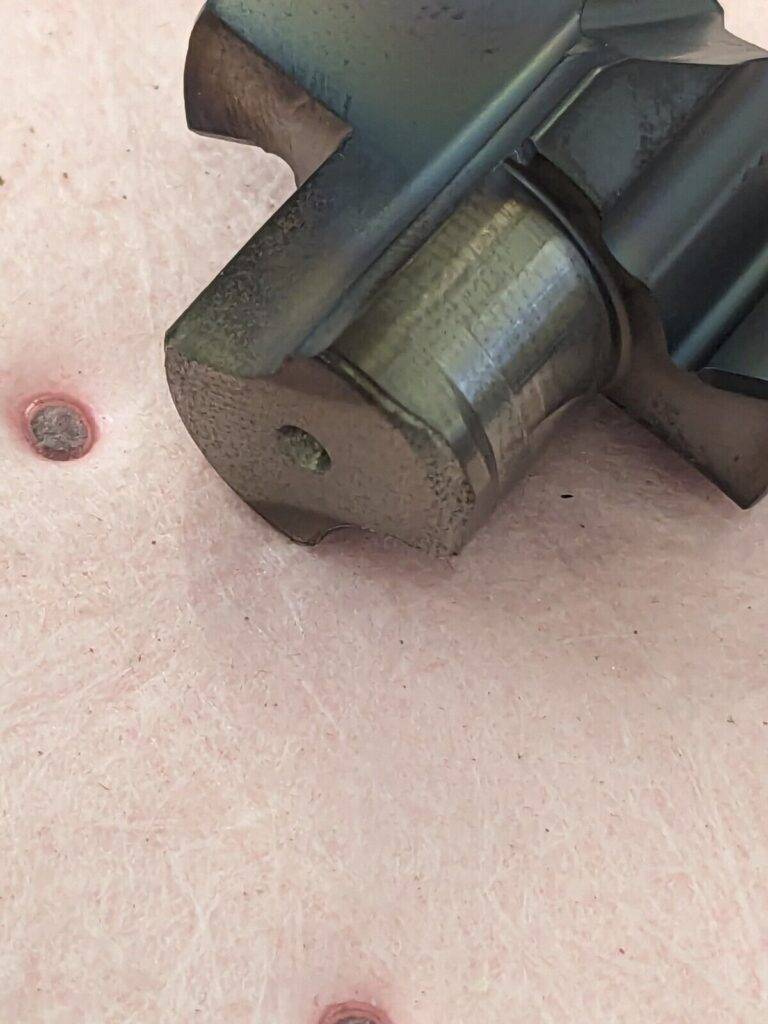

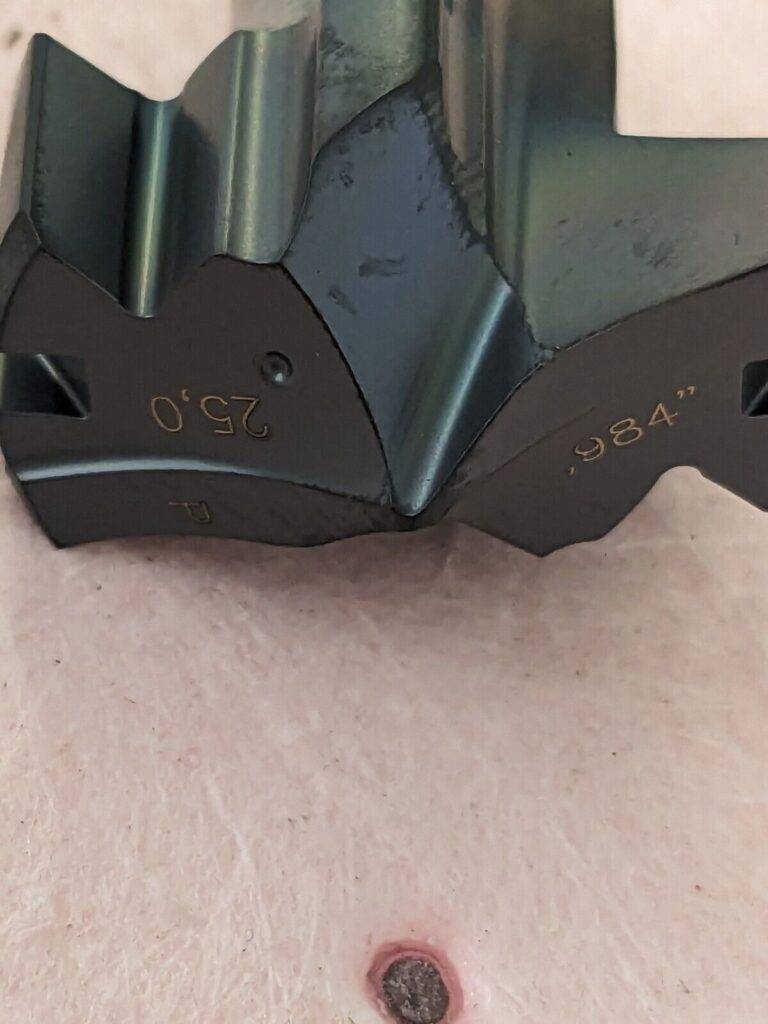

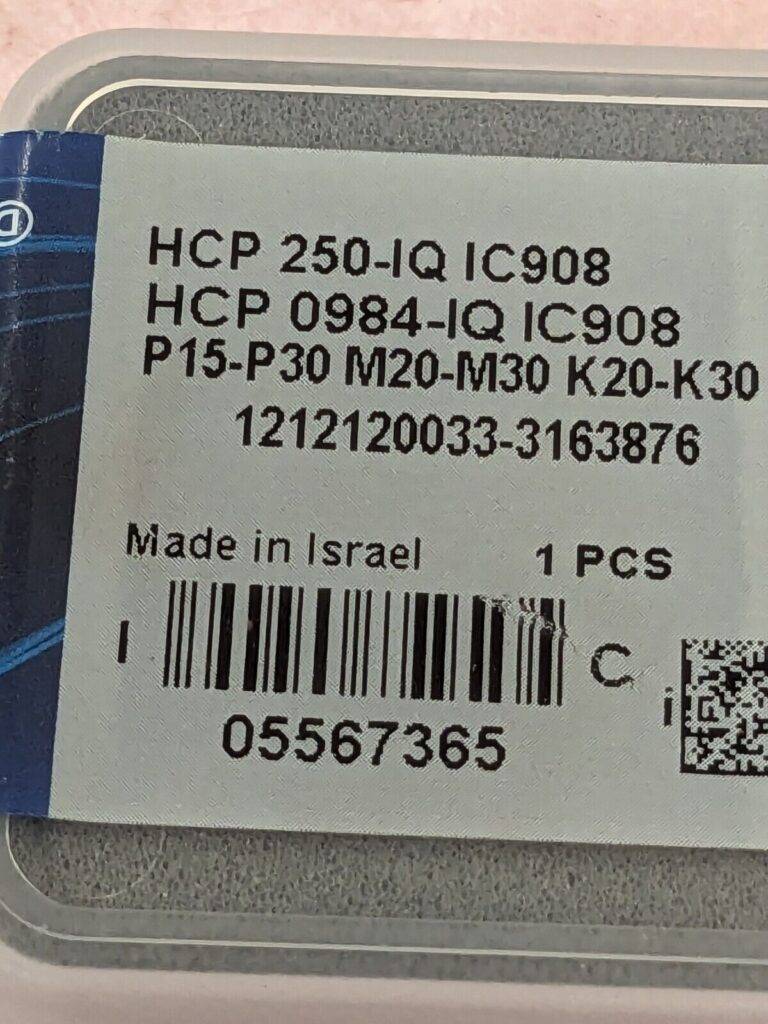

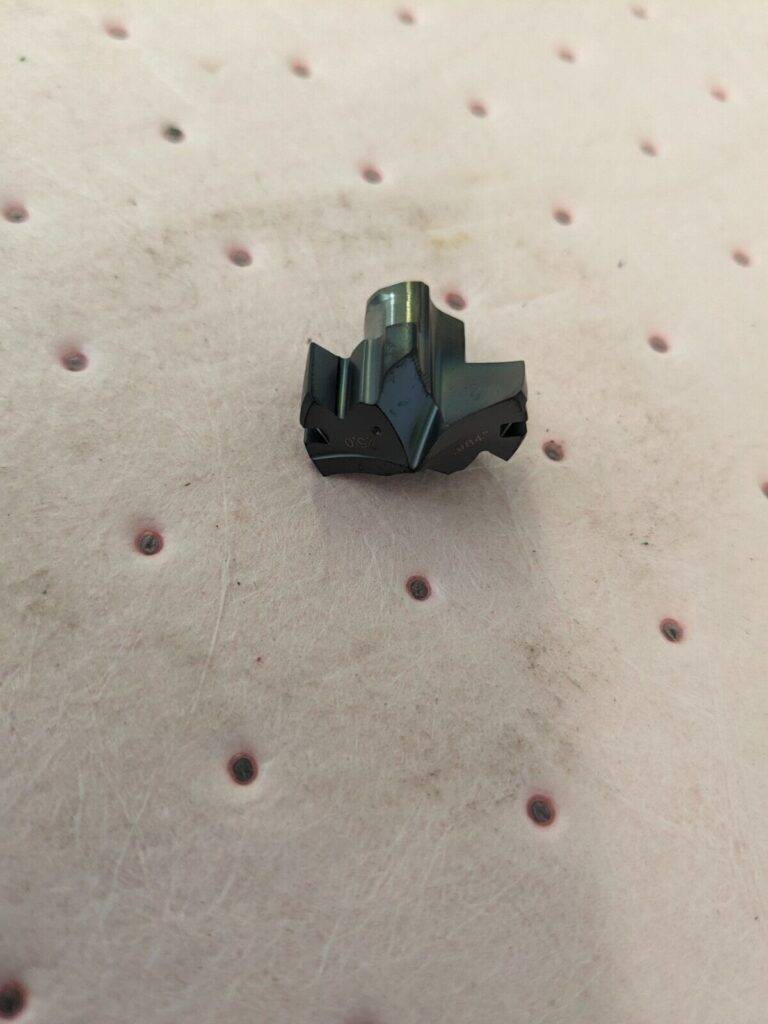

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
oct 13 23
HS3553
crab87
BRAND: ISCAR
INSERT MATERIAL: Carbide
MPN: 5567365
MSRP: $160
