Iscar

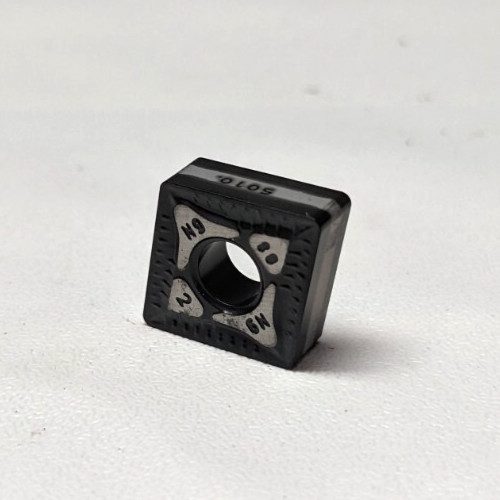

Carbide Turning Insert CNMG 432-GN IC5010  *QTY 5*

MSRP: $90.00

• ANSI Insert Code     CNMG432
• ISO Insert Code    CNMG120408
• Relief Angle     0
• Insert Style    CNMG
• Corner Radius (Inch)   1/32
• Corner Radius (Decimal Inch)    0.0315
• Included Angle   80
• Manufacturer Grade    IC5010
• Coating/Finish         TiCN; TiN; Al2O3
• Insert Thickness (Inch)      3/16
• Insert Thickness (Decimal Inch)   0.1874
• Series     Isoturn
• Inscribed Circle (Decimal Inch)   0.5000
• Inscribed Circle (Inch)    1/2
• Insert Material         Carbide
• Insert Shape       C – Diamond (Rhombic) 80-Deg
• Chip Breaker Operation         Medium Machining; Roughing
• Grade Characteristics   Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance    Negative
• Insert Shape Code        C
• Maximum Depth of Cut (mm)       4.50
• Maximum Depth of Cut (Decimal Inch)      0.1772
• Insert Holding Method     Pin; Clamp
• Clearance Code    N
• Tolerance Code   M
• Coating Process      CVD
• Insert Length (Decimal Inch)      0.5079
• Insert Length (mm)      12.90
• Primary Workpiece Material      Cast Iron
• Primary Workpiece Material Code       K
• Iso Code        ISO 13399
• Standards  ISO 13399
• Chip Breaker      GN
• ANSI Size Code    432
• ISO Size Code   120408
• Country of Origin      Israel

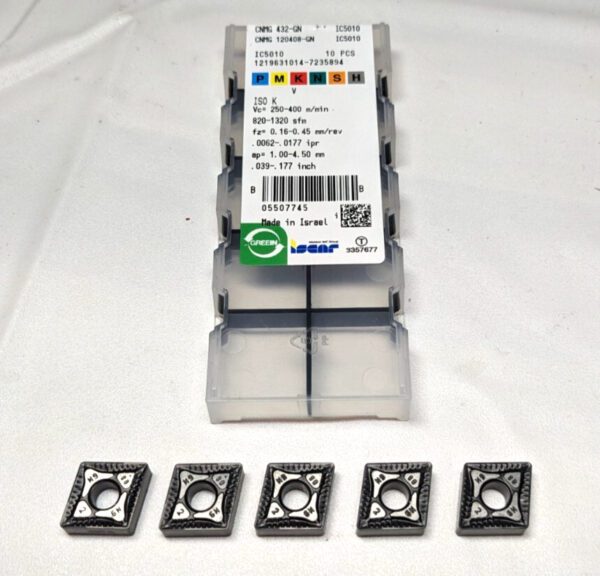

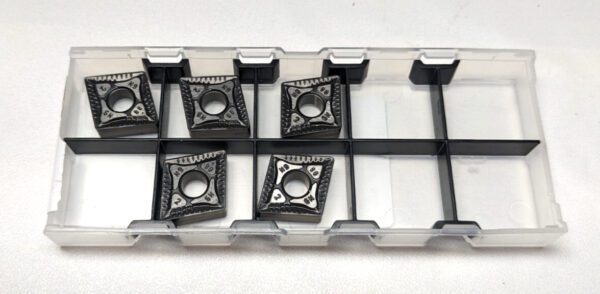

*This sale is for a NEW 5 PACK of carbide inserts.  You will receive exactly what is shown in our pictures.  SOLD AS IS, WITHOUT WARRANTY.

Please review photos, comes as shown.
