Description
Iscar

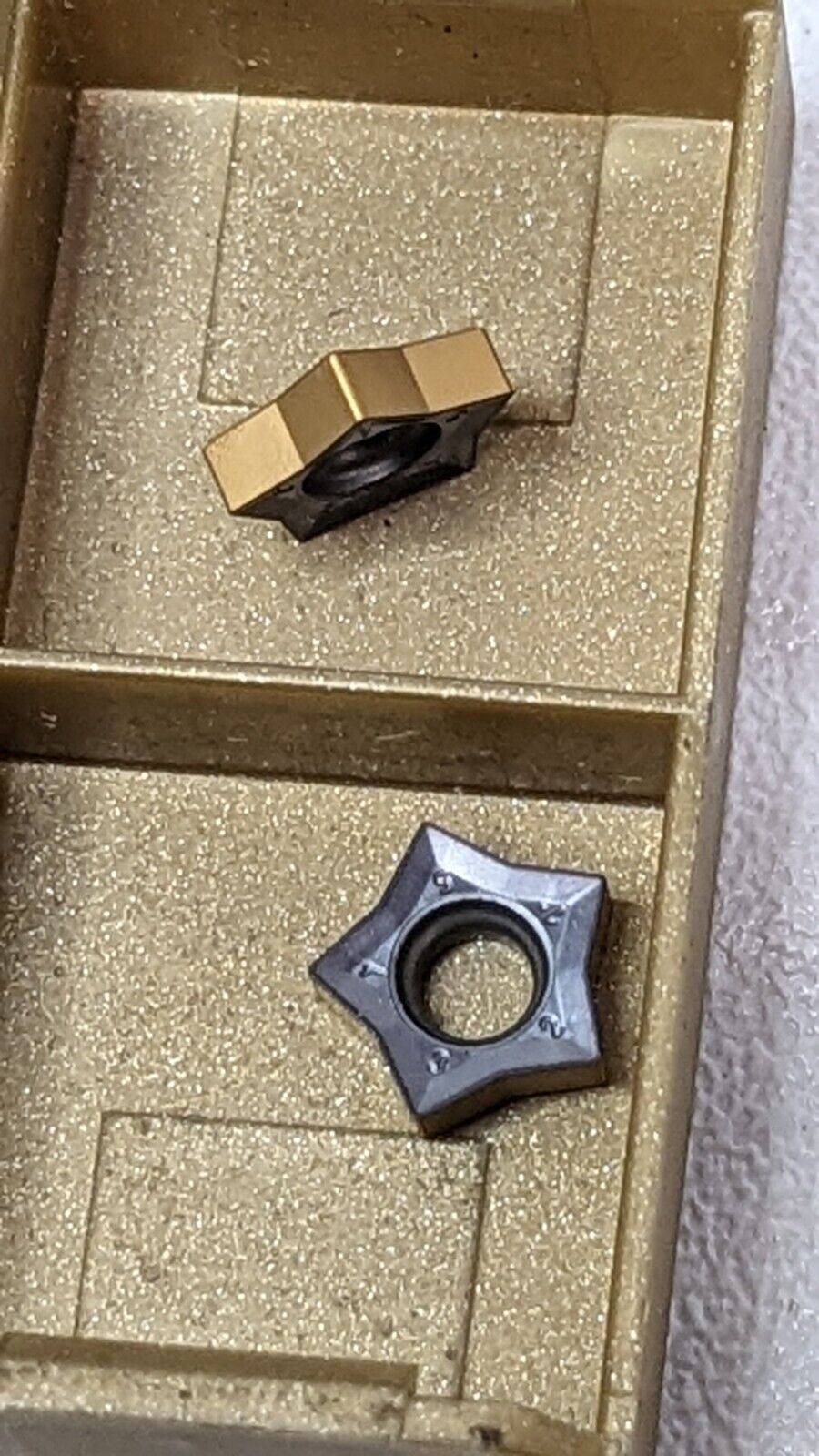

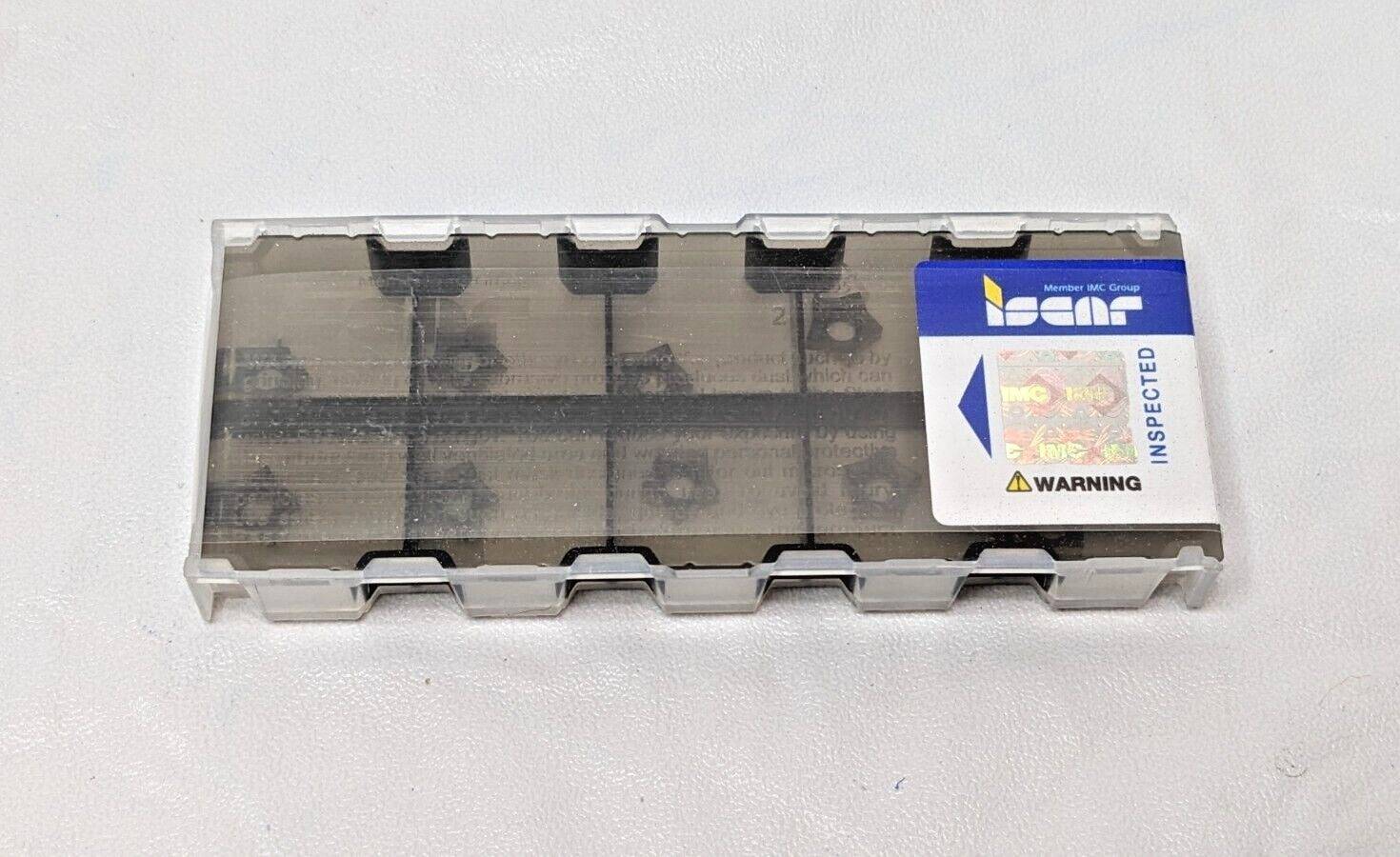

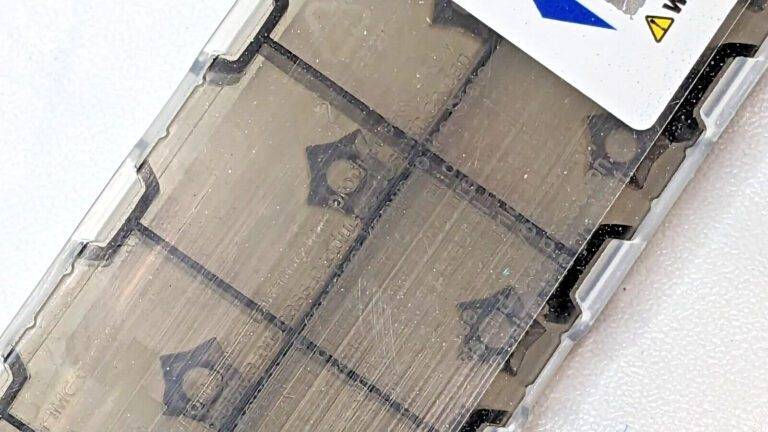

One Pack of 10 Carbide Pentagonal Milling Inserts
MSRP: $175
- Corner Radius (RE) 0.2 mm
- Cutting Direction (HAND) Right Hand
- Cutting Edge Effective Length (LE) 1.5 mm
- Inscribed Circle Diameter (IC) 6 mm
- Insert Included Angle (EPSR) 90 Degrees
- Insert Length (INSL) 2.3 mm
- Insert Thickness (S) 2.1 mm
- Maximum Feed per Tooth (fz(max)) 0.12 mm/tooth
- Minimum Feed per Tooth (fz(min)) 0.07 mm/tooth
- Pentagonal inserts with 5 front and 5 back cutting edges for upper and bottom chamfering.
Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
November 20 2024
VM13683
Cab Rugrat Bin 9
BRAND: ISCAR
MSRP: $176
INSERT MATERIAL: Carbide

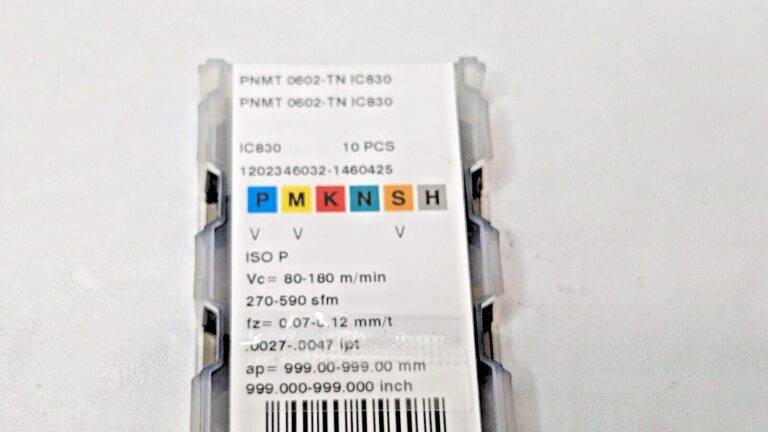

MODEL: PNMT 0602-TN IC830

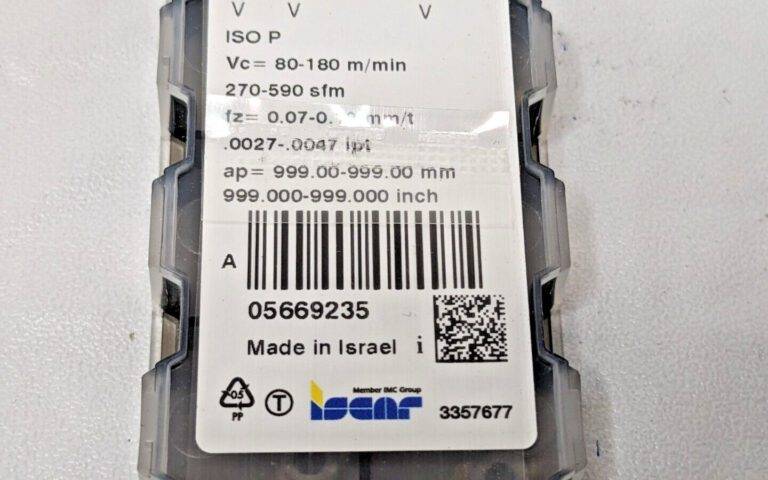

MPN: 5669235
INSERT TYPE: Milling Insert
COUNTRY/REGION OF MANUFACTURE: Israel
LOCATION: VM13683CabRugratBin9
