Description
Hertel
MSRP: $210.00
Model: 39270327
Description:
Drill Style HID
Drill Diameter (mm) 25.00
Drill Diameter (Inch) 0.9843
Drill Diameter (Decimal Inch) 0.9843
Maximum Drill Depth (mm) 75.00
Maximum Drill Depth (Decimal Inch) 2.9528
Maximum Drill Depth (Inch) 2.953
Shank Type Straight
Shank Diameter (mm) 25.00
Shank Diameter (Decimal Inch) 0.9843
Shank Diameter (Inch) 0.9843
Cutting Direction Right Hand
Through Coolant Through Coolant
Drill Depth by Diameter Ratio 3xD
Toolholder Material Steel
Number of Drill Inserts 2
Maximum Drill Diameter (Decimal Inch) 1.0140
Overall Length/Projection (mm) 96.00
Overall Length/Projection (Decimal Inch) 3.7795
Insert Compatibility (Outside or Peripheral) None
Insert Compatibility HPMT074006-GP
Flute Length (mm) 78.00
Flute Length (Decimal Inch) 3.0709
Body Length (Decimal Inch) 5.9843
Body Length (mm) 152.00
Shank Length (mm) 56.00
Shank Length (Decimal Inch) 2.2047
Collar Diameter (mm) 37.00
Collar Diameter (Decimal Inch) 1.4567
Radius (Decimal Inch) 0.0236

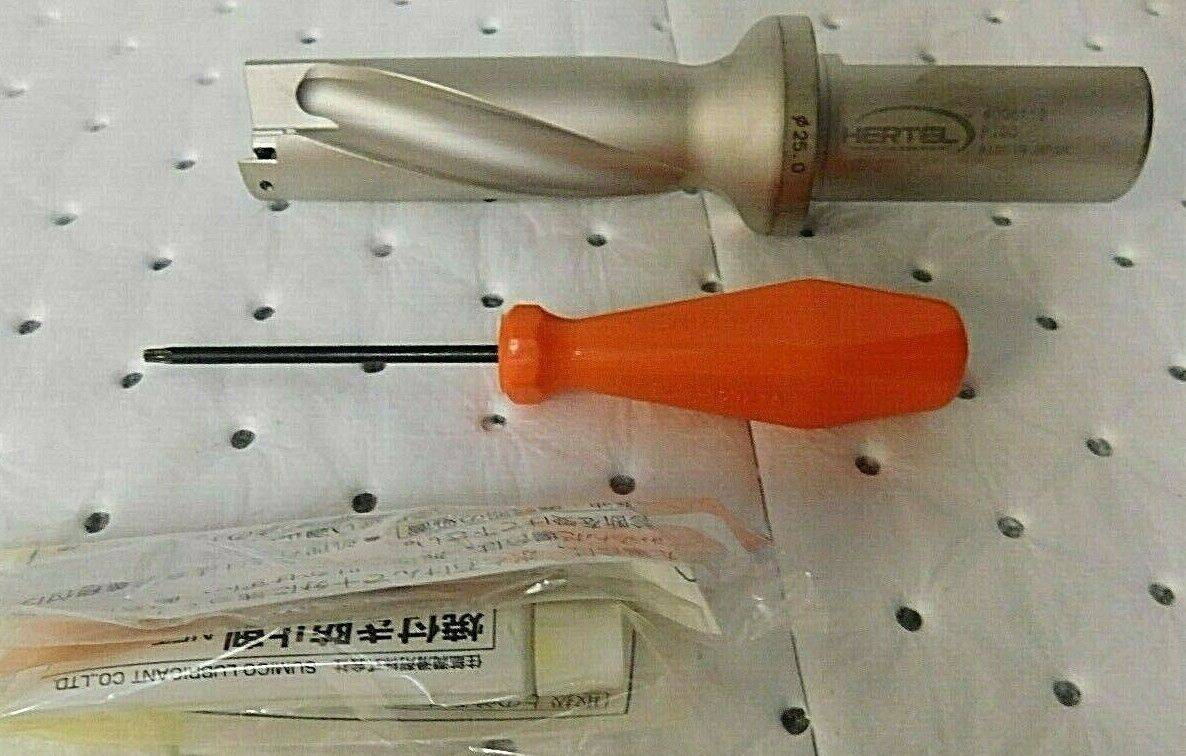

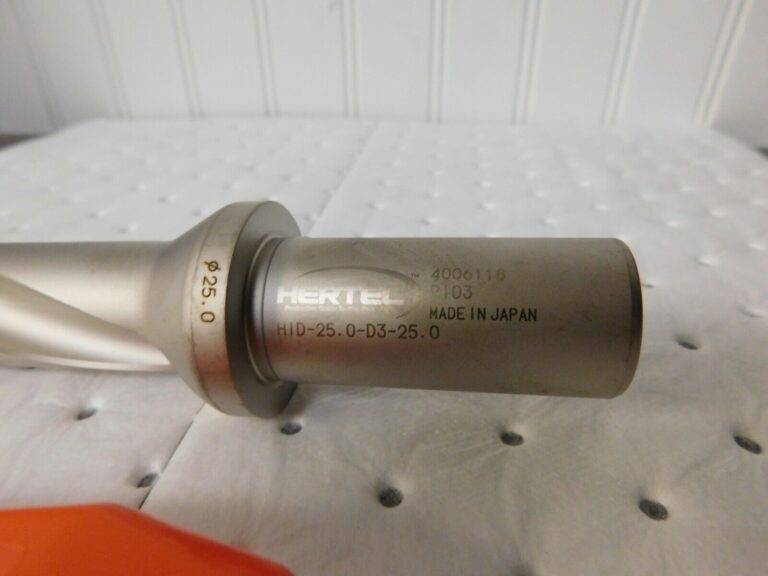

This listing is for One Indexable Insert Drill that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Cristy September 12 2019
CM 4554
SD2
LOCATION: CM4554SD2
COUNTRY/REGION OF MANUFACTURE: Japan
MSRP: 210.00
MPN: Does Not Apply
BRAND: Hertel
