Hertel 3.3071″ Max Drill Depth 4Xd 0.8268″ Diam Indexable Insert Drill 39270442

$95.94

Hertel
MSRP: $220.00
Model: 39270442

Description:


Drill Style HID
Drill Diameter (mm) 21.00
Drill Diameter (Inch) 0.8268
Drill Diameter (Decimal Inch) 0.8268
Maximum Drill Depth (mm) 84.00
Maximum Drill Depth (Decimal Inch) 3.3071
Maximum Drill Depth (Inch) 3.307
Shank Type Straight
Shank Diameter (mm) 25.00
Shank Diameter (Decimal Inch) 0.9843
Shank Diameter (Inch) 0.9843
Cutting Direction Right Hand
Through Coolant Through Coolant
Drill Depth by Diameter Ratio 4xD
Toolholder Material Steel
Number of Drill Inserts 2
Maximum Drill Diameter (Decimal Inch) 0.8520
Overall Length/Projection (mm) 102.00
Overall Length/Projection (Decimal Inch) 4.0157
Insert Compatibility (Outside or Peripheral) None
Insert Compatibility HPMT063306-GP
Flute Length (mm) 87.00
Flute Length (Decimal Inch) 3.4252
Body Length (Decimal Inch) 6.2205
Body Length (mm) 158.00
Shank Length (mm) 56.00
Shank Length (Decimal Inch) 2.2047
Collar Diameter (mm) 33.00
Collar Diameter (Decimal Inch) 1.2992
Radius (Decimal Inch) 0.0236

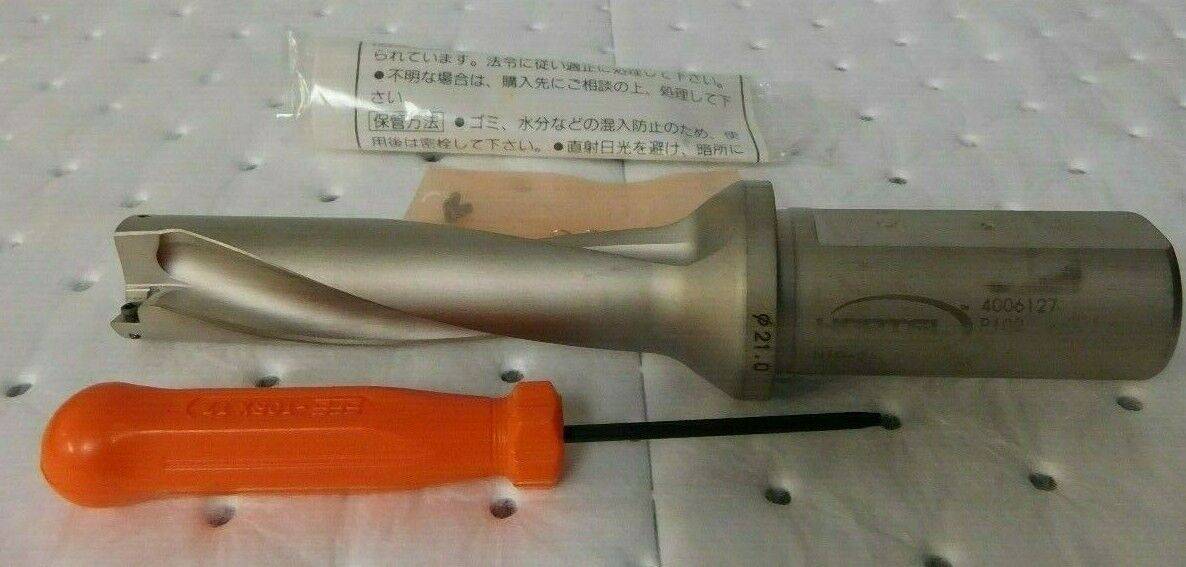

This listing is for One Indexable Insert Drill that is in the picture as well as described. Please ask any questions prior to buying!


Florida customer’s are required to pay a 7% sales tax.



Cristy September 12 2019

CM 4555
SE3

LOCATION: CM4555SE3
COUNTRY/REGION OF MANUFACTURE: Japan
MSRP: 220.00
MPN: Does Not Apply
BRAND: Hertel

5 in stock

SKU: Nov1320CM4555SE3 Category:

Description

Hertel
MSRP: $220.00
Model: 39270442

Description:


Drill Style HID
Drill Diameter (mm) 21.00
Drill Diameter (Inch) 0.8268
Drill Diameter (Decimal Inch) 0.8268
Maximum Drill Depth (mm) 84.00
Maximum Drill Depth (Decimal Inch) 3.3071
Maximum Drill Depth (Inch) 3.307
Shank Type Straight
Shank Diameter (mm) 25.00
Shank Diameter (Decimal Inch) 0.9843
Shank Diameter (Inch) 0.9843
Cutting Direction Right Hand
Through Coolant Through Coolant
Drill Depth by Diameter Ratio 4xD
Toolholder Material Steel
Number of Drill Inserts 2
Maximum Drill Diameter (Decimal Inch) 0.8520
Overall Length/Projection (mm) 102.00
Overall Length/Projection (Decimal Inch) 4.0157
Insert Compatibility (Outside or Peripheral) None
Insert Compatibility HPMT063306-GP
Flute Length (mm) 87.00
Flute Length (Decimal Inch) 3.4252
Body Length (Decimal Inch) 6.2205
Body Length (mm) 158.00
Shank Length (mm) 56.00
Shank Length (Decimal Inch) 2.2047
Collar Diameter (mm) 33.00
Collar Diameter (Decimal Inch) 1.2992
Radius (Decimal Inch) 0.0236

This listing is for One Indexable Insert Drill that is in the picture as well as described. Please ask any questions prior to buying!


Florida customer’s are required to pay a 7% sales tax.



Cristy September 12 2019

CM 4555
SE3

LOCATION: CM4555SE3
COUNTRY/REGION OF MANUFACTURE: Japan
MSRP: 220.00
MPN: Does Not Apply
BRAND: Hertel
