HARVEY TOOL
Square End Mill: 5/64″ Dia 2 Fl Solid Carbide 72078-C4
MSRP: $30
- Mill Diameter (Decimal Inch) 0.0780
- Mill Diameter (Inch) 5/64
- Number Of Flutes 2
- End Mill Material Solid Carbide
- Length of Cut (Decimal Inch) 0.2340
- Length of Cut (Inch) 15/64
- Shank Diameter (Inch) 1/8
- Shank Diameter (Decimal Inch) 0.1250
- Overall Length (Decimal Inch) 1.5000
- Overall Length (Inch) 1-1/2
- Single Or Double End Single
- Coating/Finish Family PVD Diamond
- Centercutting Yes
- Cutting Direction Right Hand
- Flute Direction Right Hand
- Extended Reach No
- Coolant Through No
- Helix Angle 30
- Primary Workpiece Material Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; CFRP Materials; Steel
- Primary Workpiece Material Code P; C; K; M; N
- Coating/Finish Amorphous Diamond
- Variable Helix No
- Variable Index No
- Chipbreaker No
- Flute Type Spiral
- Length Of Cut Range (Decimal Inch) 0.2000 – 0.3000
- Series Miniature End Mills – Square – Stub & Standard
- System Of Measurement Fractional Inch
- UNSPSC Code 27112803
- Country of Origin UNITED STATES
- Ordered as Part # 72078-C4

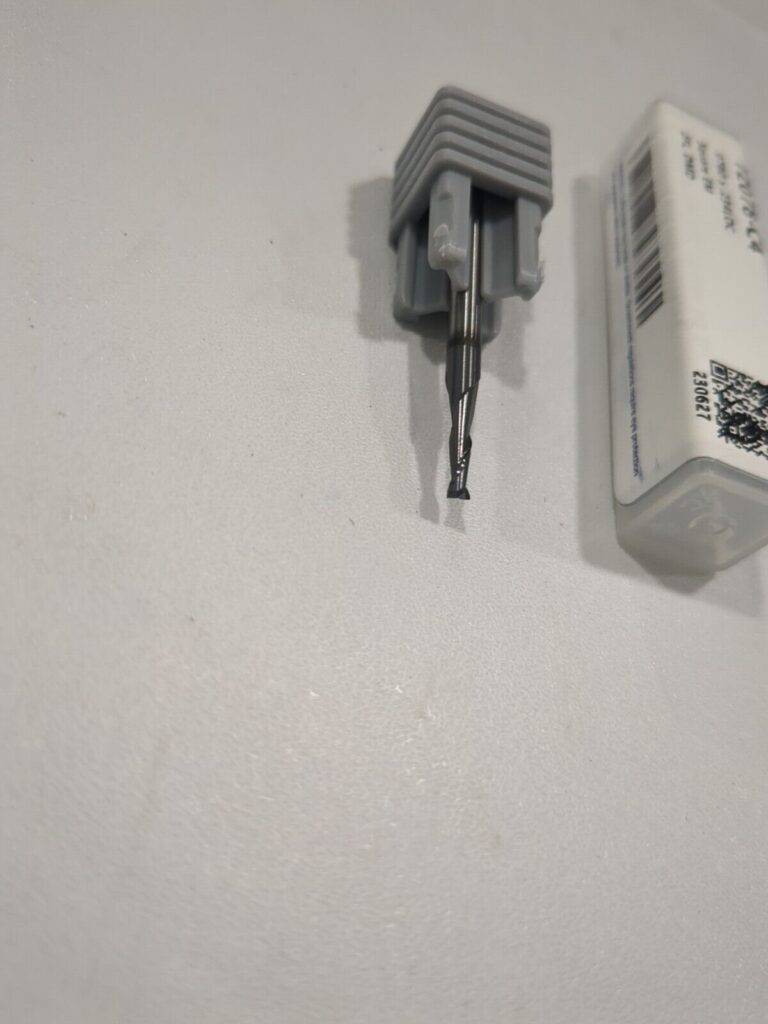

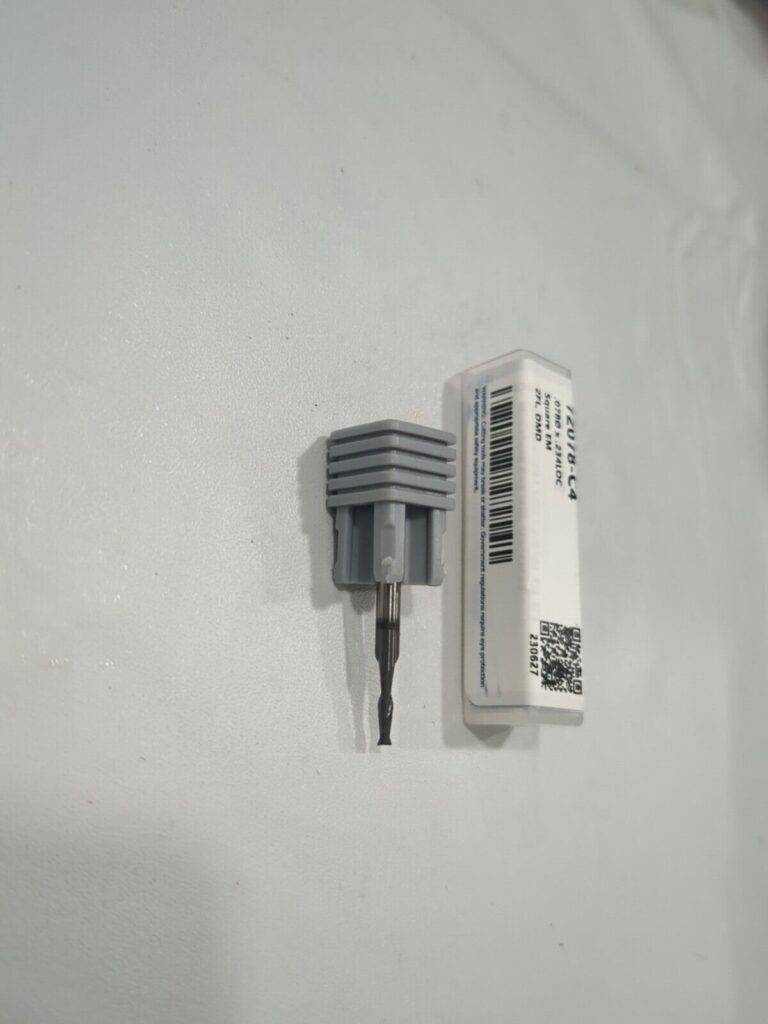

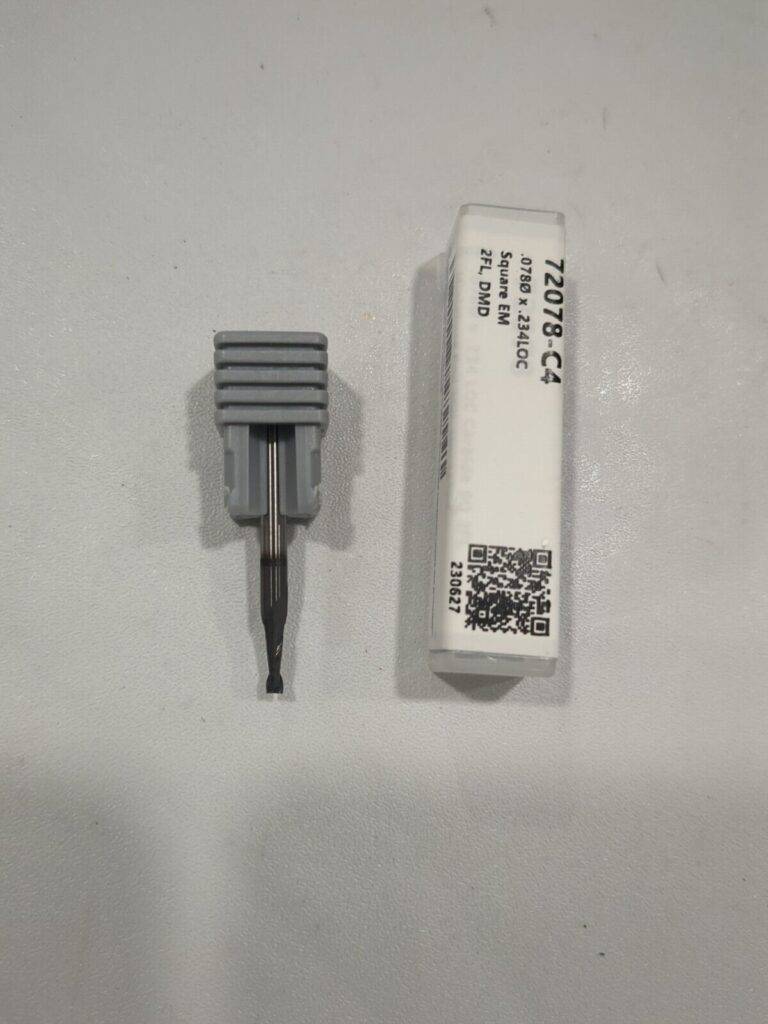

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
January 17th 2025
HS 8231
Polar 16
NUMBER OF FLUTES: See description
END MILL TYPE: Square End Mill
OVERALL LENGTH: See description
MATERIAL: Solid Carbide
MPN: 72078-C4
MILL DIAMETER: 5/64 in
SHANK DIAMETER: See description
CALIFORNIA PROP 65 WARNING: See description
BRAND: Harvey Tool
END TYPE: See description
UNIT TYPE: Unit
COUNTRY/REGION OF MANUFACTURE: United States
UNIT QUANTITY: see description
LENGTH OF CUT: See description
