Description
SECO
5mm Diam 3 Flute Solid Carbide 0.2mm Corner Radius End Mill 00022005
MSRP: $110
- Mill Diameter (mm) 0.1969in; 5.0mm
- Mill Diameter (Inch) 0.1969in; 5.0mm
- Mill Diameter (Decimal Inch) 0.1969; 0.1969in; 5.0mm
- End Type Corner Radius
- Radius 0.008in; 0.2mm
- Corner Radius (mm) 0.200
- Corner Radius (Decimal Inch) 0.008in; 0.2mm; 0.0079
- Mill Diameter 0.1969in; 5.0mm
- Number of Flutes 3
- Length Of Cut 0.2362in; 6.0mm
- Material Solid Carbide
- End Mill Material Solid Carbide
- Finish/Coating MEGA
- Shank Diameter (mm) 6.00
- Overall Length (mm) 65.0mm
- Overall Length (Inch) 65.0mm
- Centercutting Yes
- Flute Type Spiral
- Cutting Direction Right Hand
- Helix Angle 40.00
- Shank Diameter 6.0mm
- Neck Diameter 0.181in; 4.6mm
- Reach Length 0.8661in; 22.0mm
- Overall Length 65.0mm
- Maximum Helix Angle 40?
- Corner Radius Tolerance +0.05/-0.05 mm
- Mill Diameter Tolerance -0.02/-0.04 mm
- Shank Diameter Tolerance h5
- Through Coolant No
- Primary Workpiece Material Code K; M; N; P; S
- Maximum Tir 0.0004in; 0.0100mm
- Reach Length (mm) 0.8661in; 22.0mm
- Reach Length (Decimal Inch) 0.8661in; 22.0mm
- Neck Diameter (mm) 0.181in; 4.6mm
- Neck Diameter (Decimal Inch) 0.181in; 4.6mm
- Series JH910
- Single or Double End Single
- Length Type Long
- Flute Direction Right Hand
- Mill Diameter Tolerance (mm) -0.02/-0.04
- Mill Diameter Tolerance (Decimal Inch) -0.02/-0.04 mm
- Corner Radius Tolerance (mm) +0.05/-0.05
- Corner Radius Tolerance (Decimal Inch) +0.05/-0.05 mm
- Shank Diameter Tolerance (mm) h5
- Extended Reach Yes
- Additional Information No
- Shank Type Cylindrical
- Series/List JH910

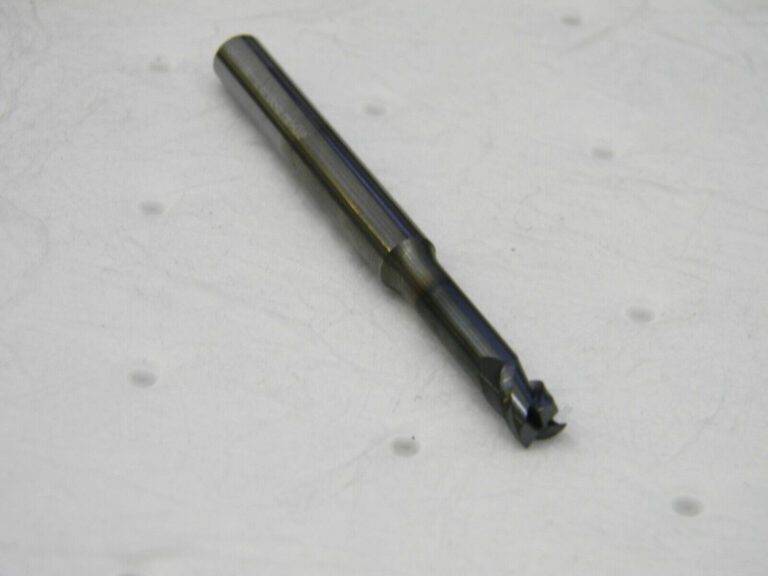

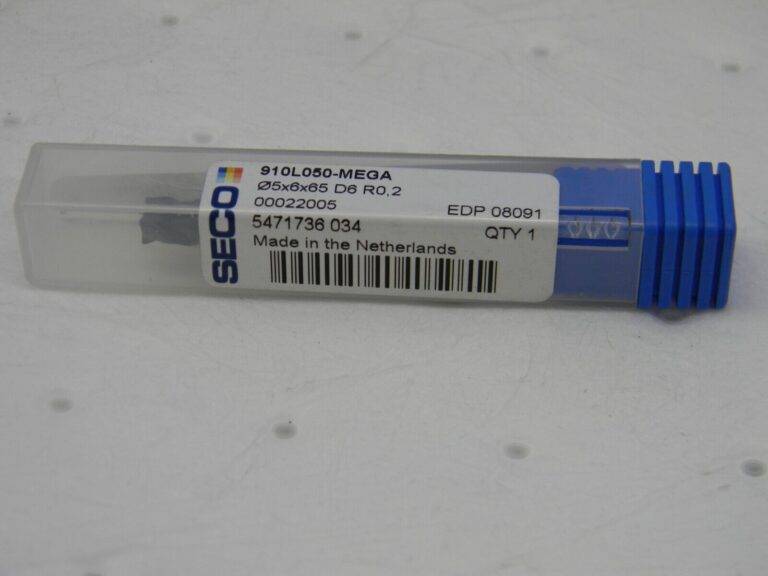

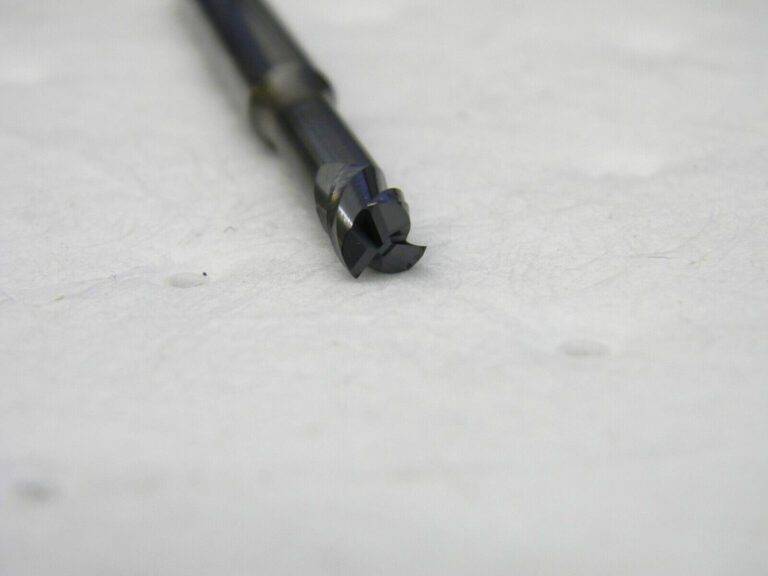

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Nov 29 22
HS095
ice 24
END TYPE: Corner Radius
NUMBER OF FLUTES: 3
MSRP: $110
MPN: 00022005
