Description
DE-STA-CO
Standard Straight Line Action Clamp 614-M
MSRP: $300
- Load Capacity (Lb. – 3 Decimals) 1124.05
- Load Capacity (N) 5000.00
- Load Capacity 5000 N; 1124.05 lb
- Plunger Travel (Decimal Inch) 1.2600
- Plunger Travel 32 mm; 1.26 in
- Plunger Travel (mm) 32.00
- Plunger Shape Round
- Plunger Thread Style Internal
- Plunger Thread Size M8x1.25
- Plunger Centerline Height (mm) 17.53
- Plunger Centerline Height (Decimal Inch) 0.6900
- Plunger Centerline Height 0.69 in; 17.53 mm
- Plunger Diameter (mm) 8.89
- Plunger Diameter (Decimal Inch) 0.3500
- Base Style Flanged
- Handle Style Straight
- Clamp Material Carbon Steel
- Material Carbon Steel
- Overall Length (Decimal Inch) 5.7000
- Overall Height (Mm – 5 Decimals) 152.40
- Overall Height (Decimal Inch) 6.0000
- Base Length (mm) 92.96
- Base Length (Decimal Inch) 3.6600
- Base Width (Inch) 1.3800
- Base Width 35.05
- Handle Color Red
- Width Distance Between Mount Holes (Decimal Inch) 0.9400
- Width Distance Between Mount Holes (mm) 23.88
- Mounting Hole Diameter (mm) 5.59
- Jam Nut Height (Decimal Inch) 0.3100
- Jam Nut Height (mm) 7.87
- Jam Nut Hex Size (mm) 36.07
- Jam Nut Hex Size (Decimal Inch) 1.4200
- Jam Nut Thread Size M24x1.5
- Number Of Mounting Holes 2

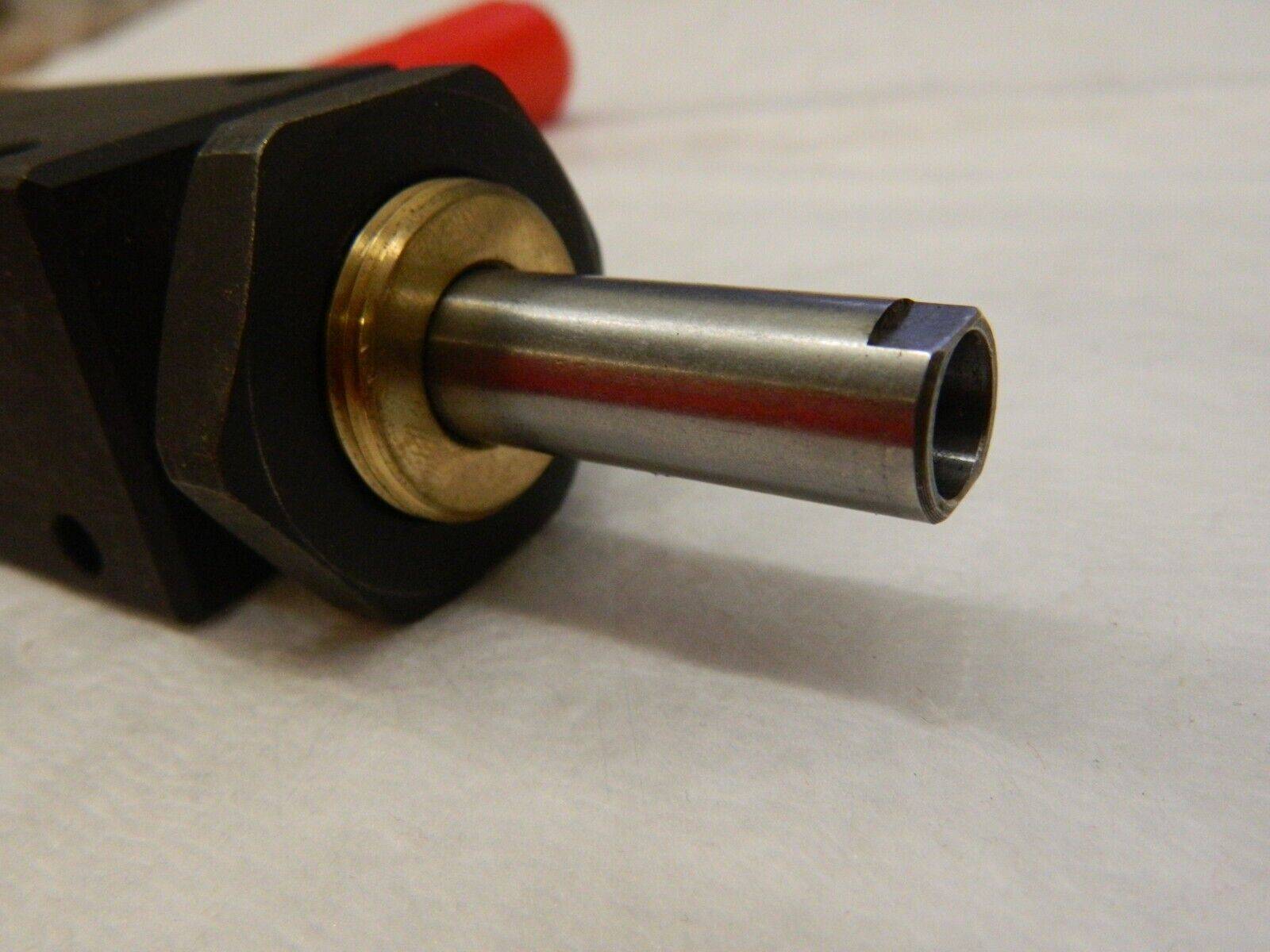

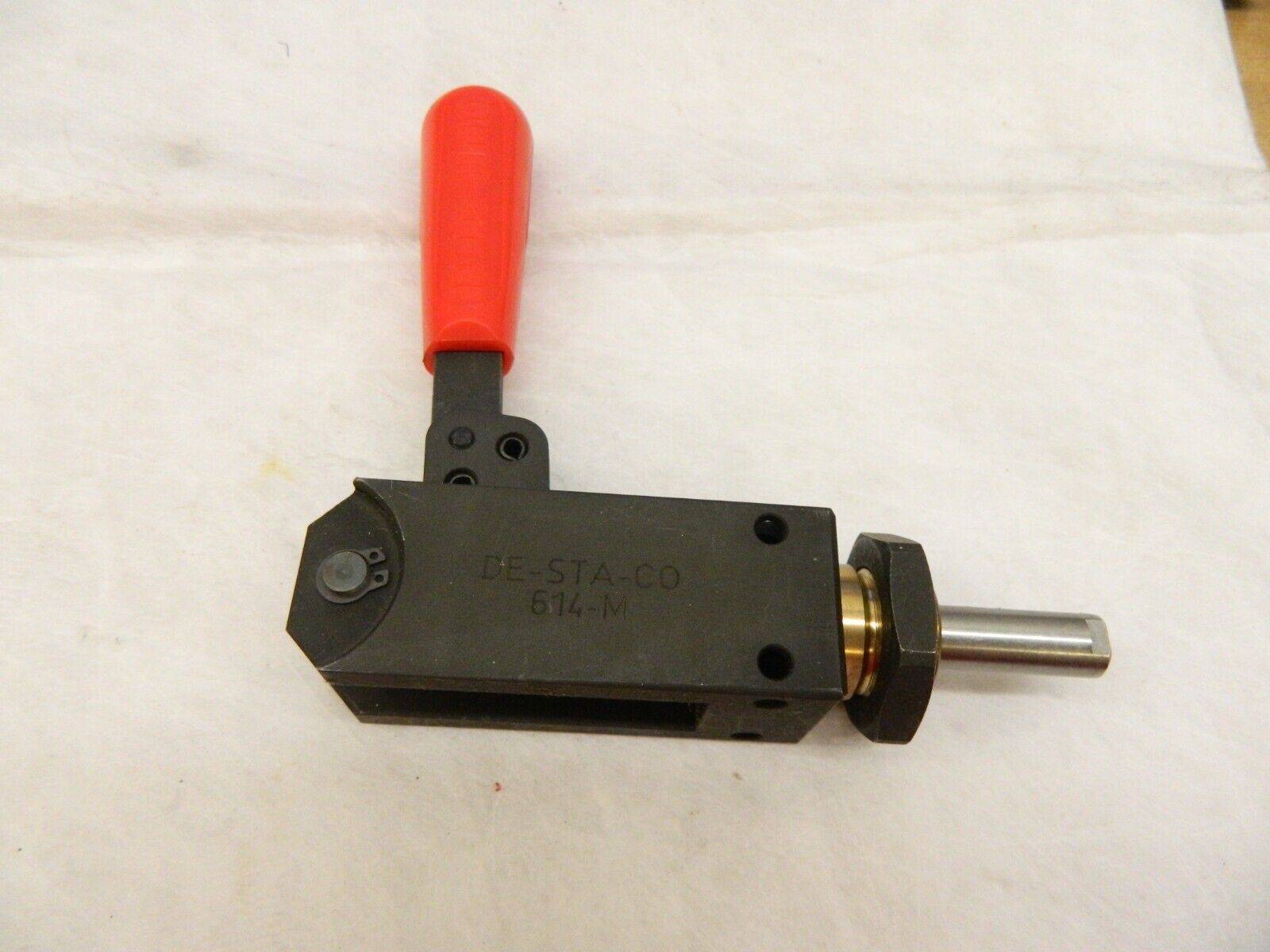

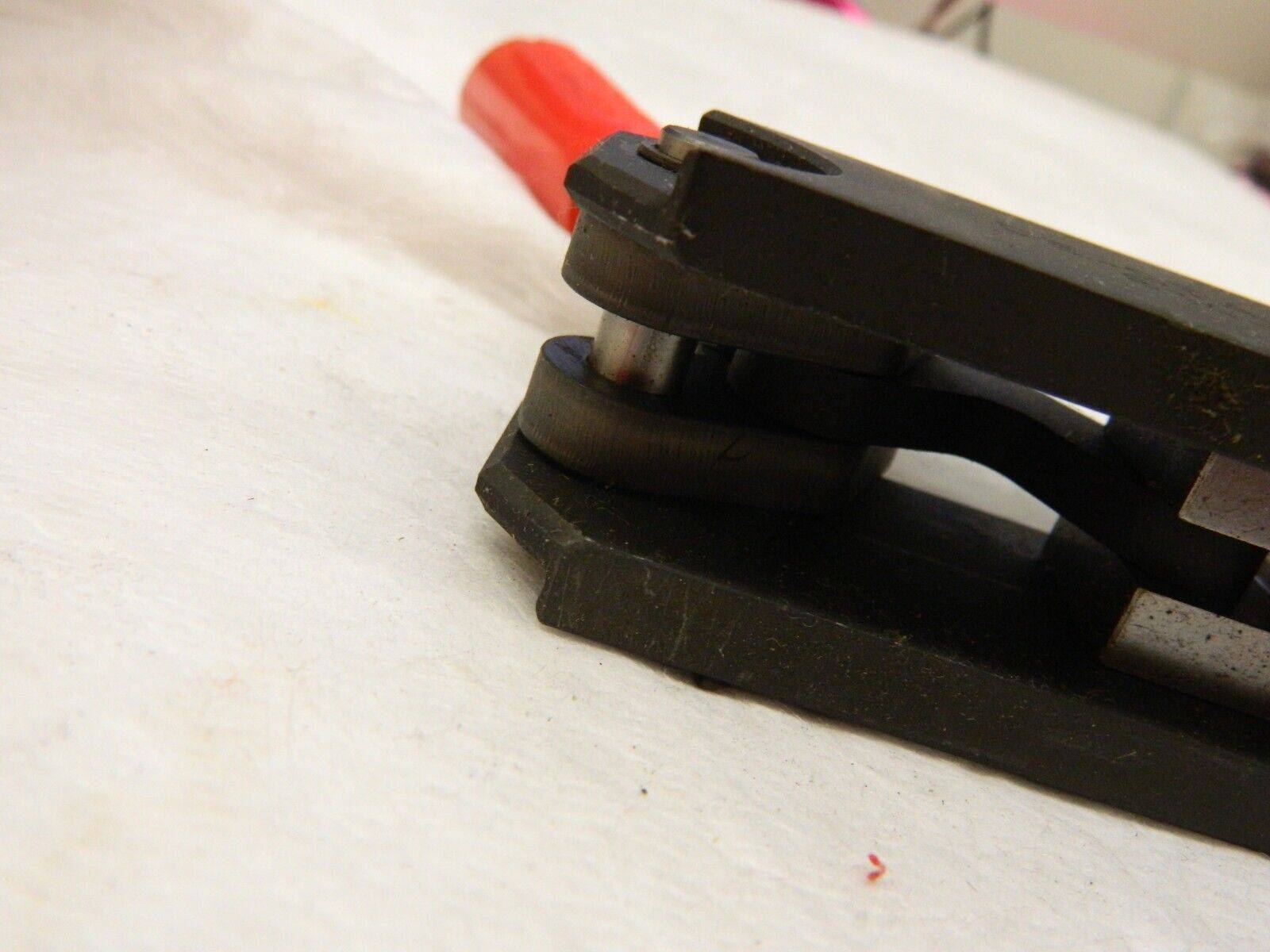

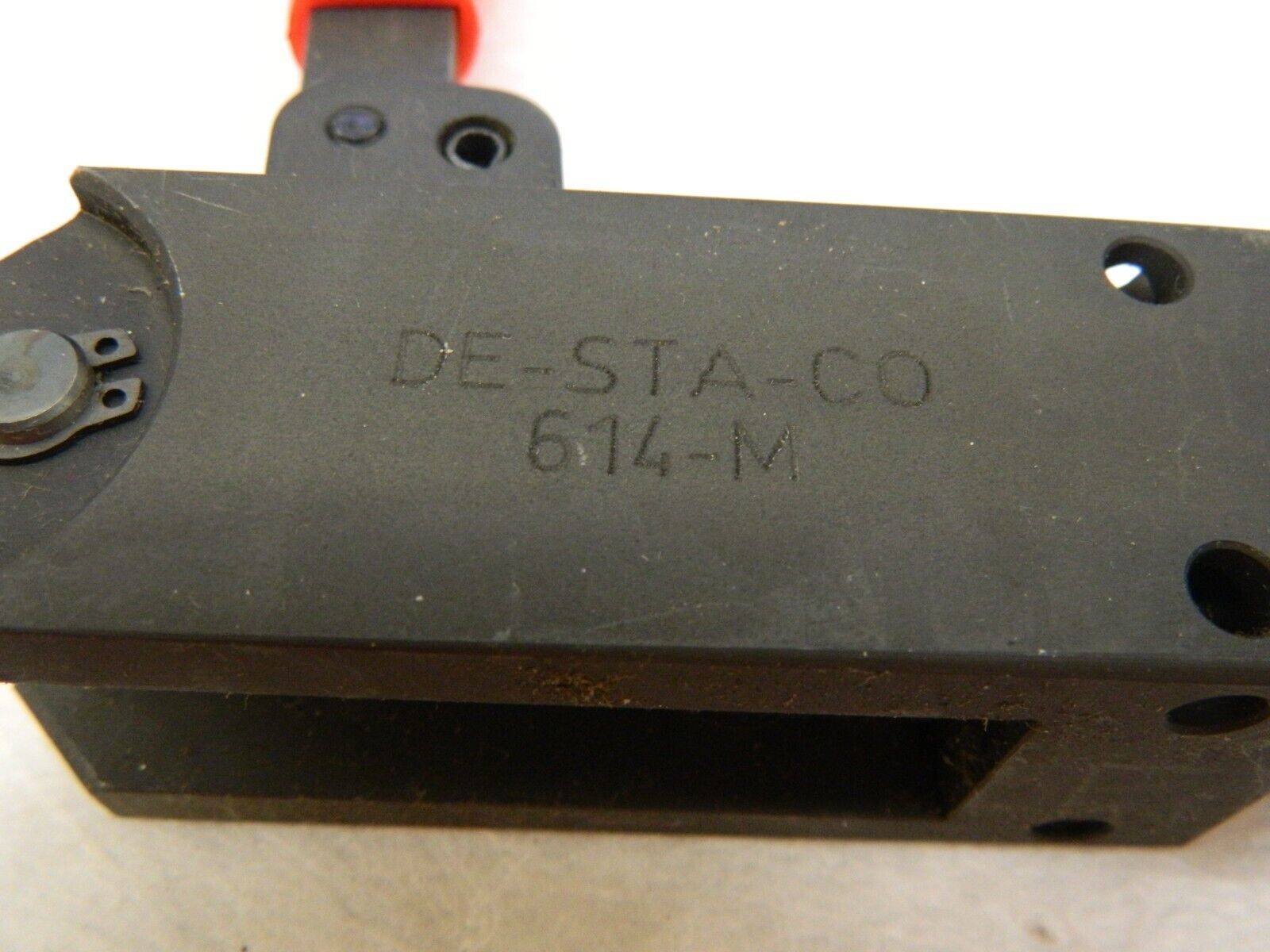

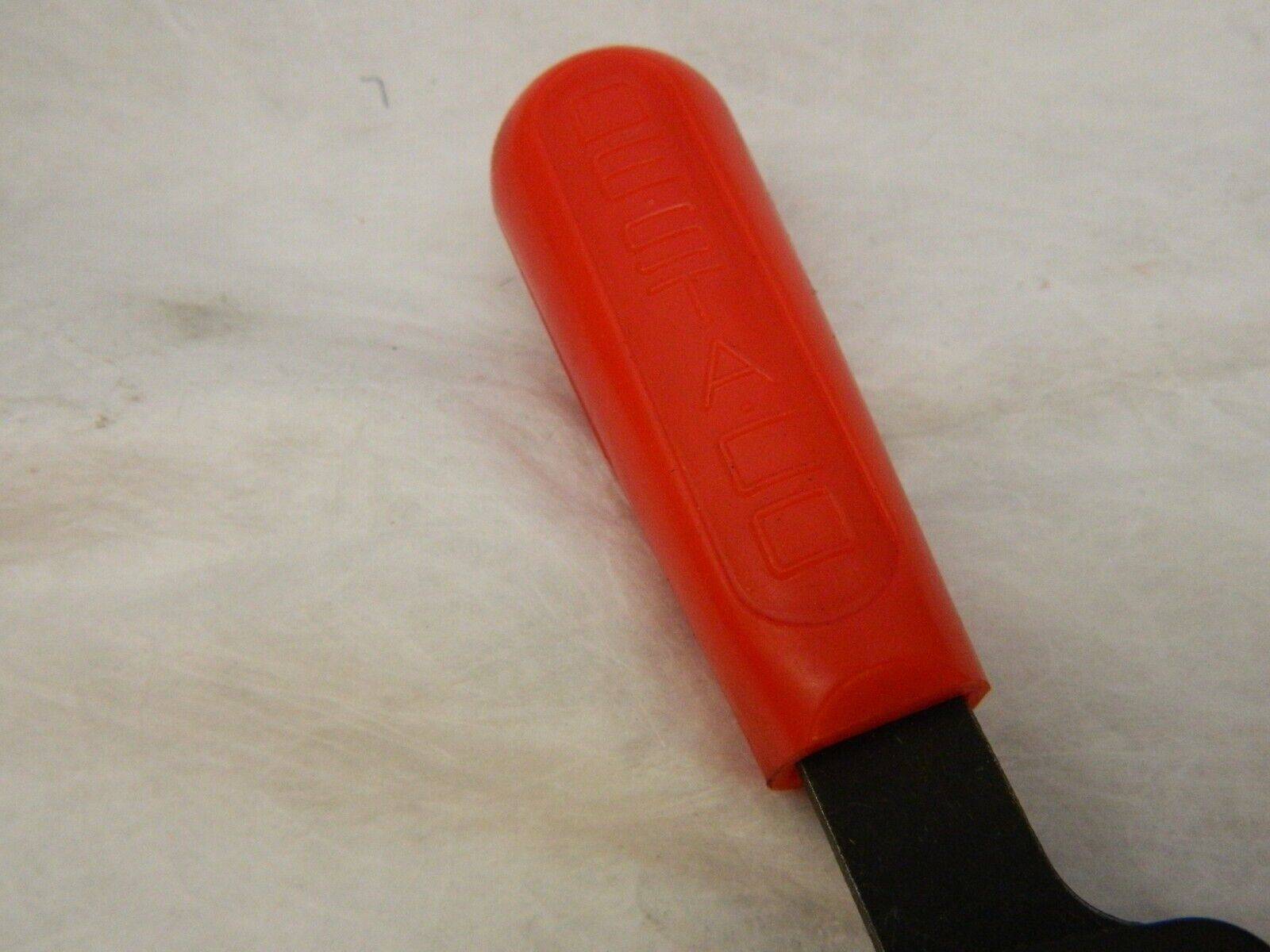

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Feb 20 23
HS1194
R1 Bin6
BRAND: DESTACO
MSRP: $300
MPN: 614-M
