Description
BRAND De-StaCo
Item QTY 2
- specs
- Handle Orientation: Vertical
- Bar Style: U-Bar
- Base Style: Flanged
- Bar End Type: Open
- Holding Capacity (N): 1670.00
- Holding Capacity (Lb.): 375.43
- Length Distance Between Mount Holes (mm) :19.05
- Length Distance Between Mount Holes (Decimal Inch): 0.75
- Width Distance Between Mount Holes (mm): 31.75
- Width Distance Between Mount Holes (Decimal Inch): 1.2500
- Height Under Bar (mm): 31.75
- Height Under Bar (Decimal Inch): 1.2500
- Overall Height (mm): 176.02
- Overall Height (Decimal Inch): 6.9300
- Base Length (mm): 35.05
- Base Length (Decimal Inch): 1.3800
- Base Width (mm): 43.94
- Base Width (Decimal Inch): 1.7300
- Handle Style: Straight
- Material: Carbon Steel
- Handle: Color Red
- Number of Mounting Holes: 4
- Mounting Hole Diameter (mm): 7.11
- Mounting Hole Diameter (Decimal Inch): 0.2800
- Front of Base To Tip Of Toggle Bar (mm): 97.54
- Front of Base To Tip Of Toggle Bar (Decimal Inch): 1.8100
- Bar Opening ( ): 99.00
- Handle Movement ( ): 57.00
- Maximum Mechanical Advantage: 4:1; 7:1
- Spindle Thread Size: 5/16; M8
- Spindle Travel (mm): 74.68
- Spindle Travel (Decimal Inch): 2.9400
- Bar Width (Decimal Inch): 0.6300
- Bar Width (mm): 16.00
- Includes: Flanged Washers
(Description).

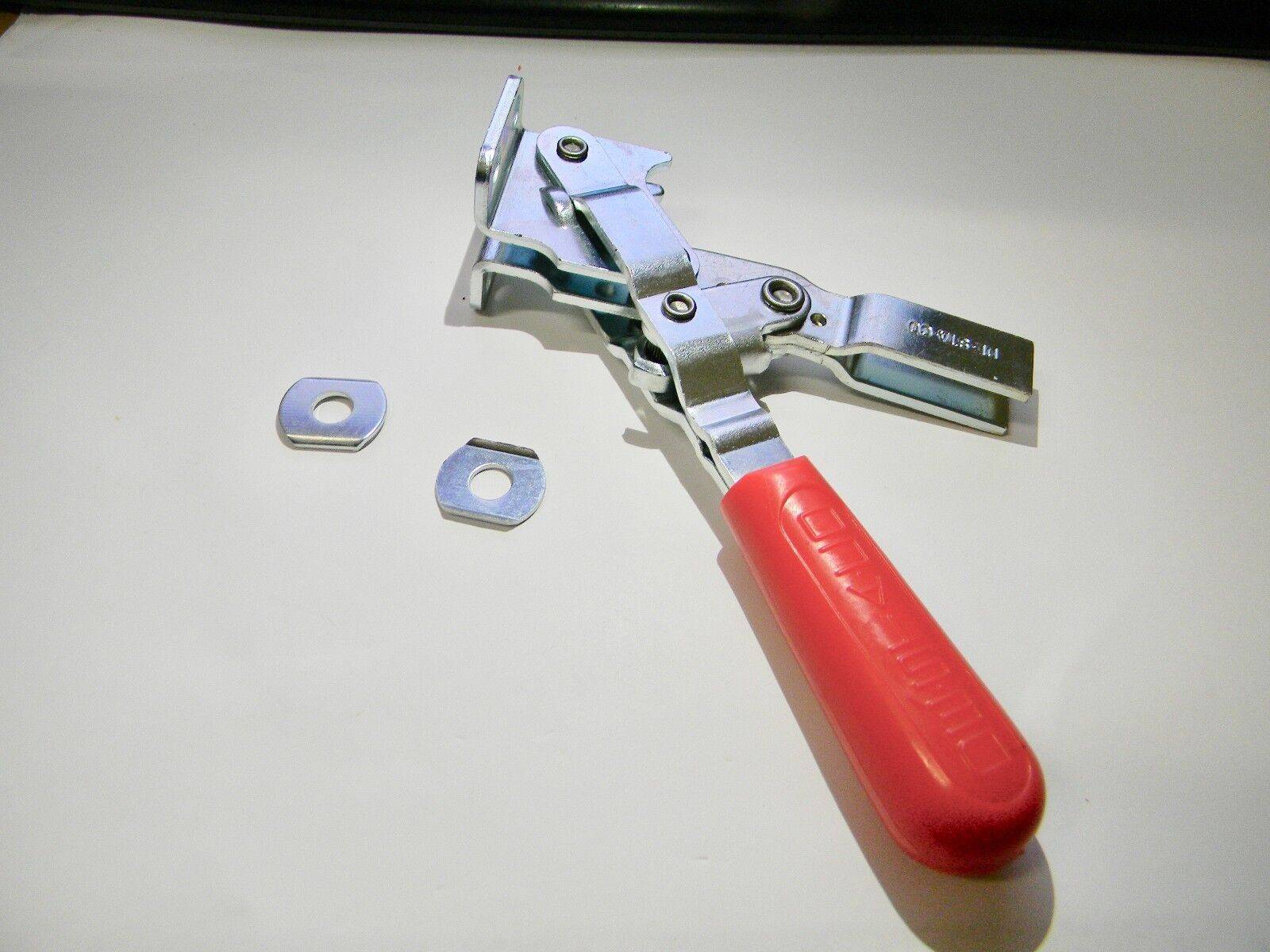

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date March 29 21
Lister# CM 9914
Loc Chris 105
COUNTRY/REGION OF MANUFACTURE: Unknown
MODEL: 207-U-L
MPN: Does Not Apply
CLAMP TYPE: Manual Hold-Down Toggle Clamp
BRAND: De-Sta-Co
