Description
DE-STA-CO

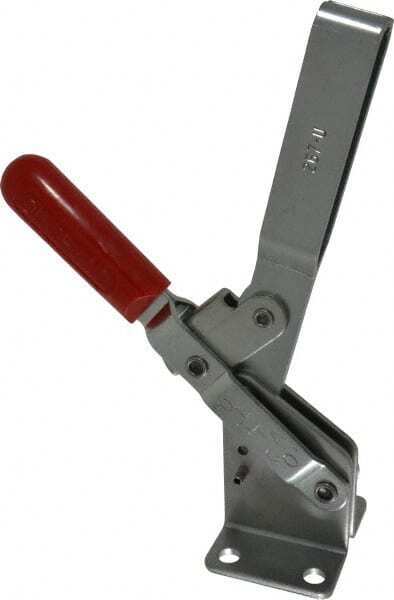

Manual Hold-Down Toggle Clamp 1,200 lb cap. U-Bar Flanged Base 267-U
MSRP: $80
- Handle Orientation Vertical
- Bar Style U-Bar
- Base Style Flanged
- Bar End Type Fixed Spindle
- Holding Capacity (N) 5340.00
- Holding Capacity (Lb.) 1200.00
- Length Distance Between Mount Holes (mm) 50.80
- Length Distance Between Mount Holes 2 in
- Length Distance Between Mount Holes (Inch) 2.0
- Width Distance Between Mount Holes (mm) 69.85
- Width Distance Between Mount Holes 69.85 mm
- Width Distance Between Mount Holes (Decimal Inch) 2.7500
- Height Under Bar (Decimal Inch) 3.0800
- Height Under Bar (mm) 78.23
- Overall Length (Decimal Inch) 8.8700
- Overall Height (Decimal Inch) 11.9700
- Overall Height (Mm – 5 Decimals) 304.04
- Base Length (mm) 76.20
- Base Width (Inch) 3.7400
- Base Width 95.00
- Handle Style Straight
- Material Carbon Steel
- Handle Material Carbon Steel
- Handle Color Red
- Mounting Hole Diameter (mm) 8.89
- Mounting Hole Diameter (Decimal Inch) 0.3500
- Bar Opening (Degrees) 140
- Handle Movement (Degrees) 72
- Maximum Mechanical Advantage 18:01
- Spindle Thread Size M16x2
- Spindle Travel (Inch) 3.9200
- Spindle Travel (mm) 99.57
- Bar Width (Inch) 1-1/4
- Bar Width (mm) 31.75
- Bar Width (Decimal Inch) 1.2500
- Front Of Base To Toggle Tip 5.87 in
- Includes (2) Nuts
- Front of Base To Tip Of Toggle Bar (Decimal Inch) 5.8700
- Front of Base To Tip Of Toggle Bar (mm) 149.10
- Number Of Mounting Holes

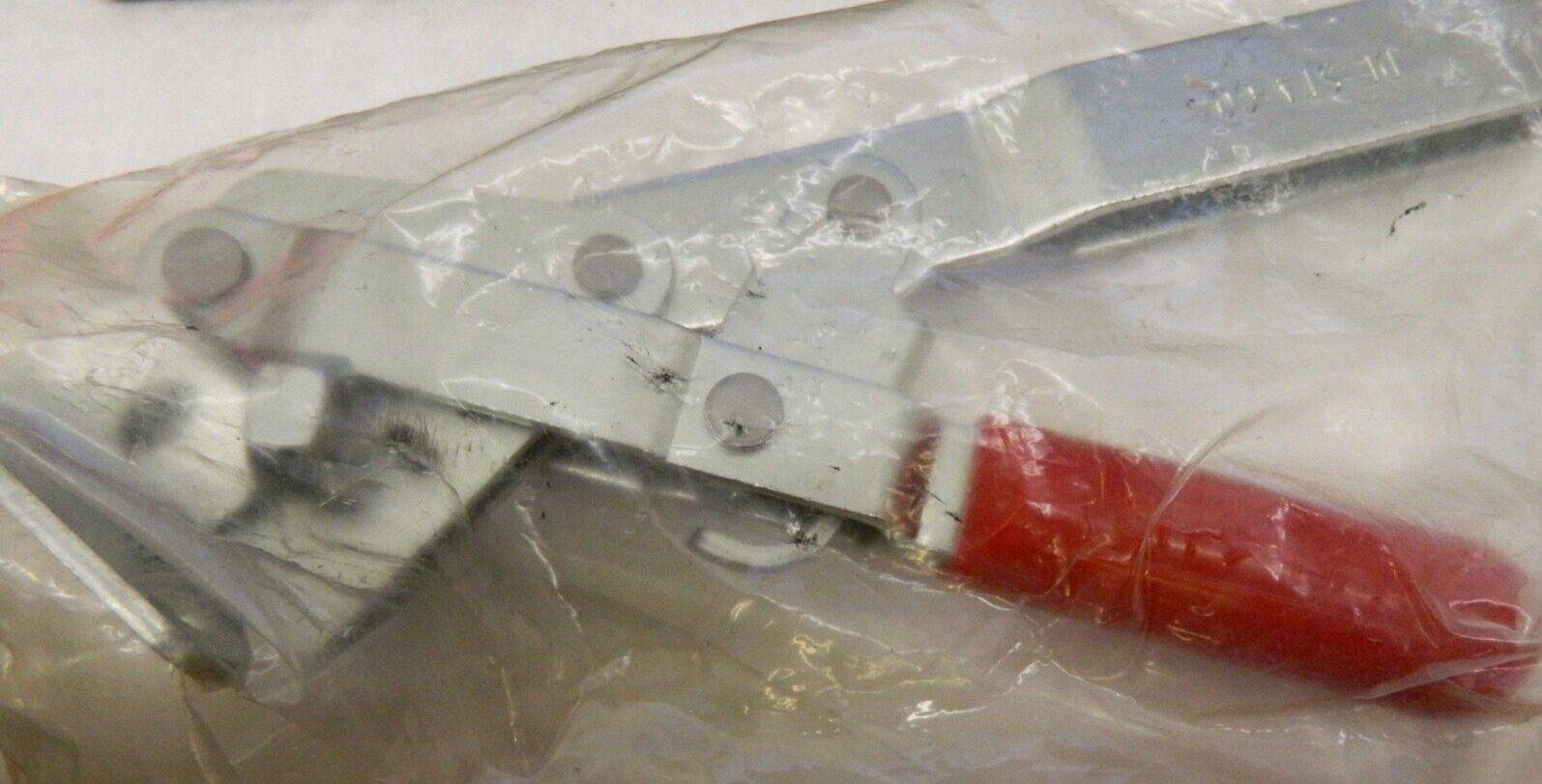

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Feb 06 23
HS1019
Serena 19
BRAND: DESTACO
MSRP: $80
CLAMP TYPE: Manual Hold-Down Toggle Clamp
MPN: 267-U
ARM: U-Bar
