Description
De-Sta-Co
MSRP: $50.00
Model: 210-21
Description:
Handle Orientation Vertical
Bar Style Solid
Base Style Flanged
Bar End Type Closed
Holding Capacity (N) 3340.00
Holding Capacity (Lb.) 750.00
Length Distance Between Mount Holes (mm) 32.00
Length Distance Between Mount Holes (Decimal Inch) 1.26
Width Distance Between Mount Holes (mm) 44.96
Width Distance Between Mount Holes (Decimal Inch) 1.7700
Height Under Bar (mm) 42.42
Height Under Bar (Decimal Inch) 1.6700
Overall Length (mm) 170.18
Overall Length (Decimal Inch) 6.7000
Overall Height (mm) 208.03
Overall Height (Decimal Inch) 8.1900
Base Length (mm) 48.01
Base Length (Decimal Inch) 1.8900
Base Width (mm) 65.02
Base Width (Decimal Inch) 2.5600
Handle Style Straight
Material Carbon Steel
Handle Color Red
Finish/Coating Electro-Plated Zinc
Number of Mounting Holes 4
Mounting Hole Diameter (mm) 8.38
Mounting Hole Diameter (Decimal Inch) 0.3300
Front of Base To Tip Of Toggle Bar (mm) 92.71
Front of Base To Tip Of Toggle Bar (Decimal Inch) 3.6500
Bar Opening (Degrees) 103.00
Handle Movement (Degrees) 58.00
Maximum Mechanical Advantage 9:1; 11:1
Spindle Thread Size 3/8-16
Spindle Length (Inch) 3-1/4
Bar Width (Decimal Inch) 0.7900
Bar Width (mm) 20.07
Bar Thickness (mm) 7.87
Bar Thickness (Decimal Inch) 0.3100
Includes Bolt Retainer

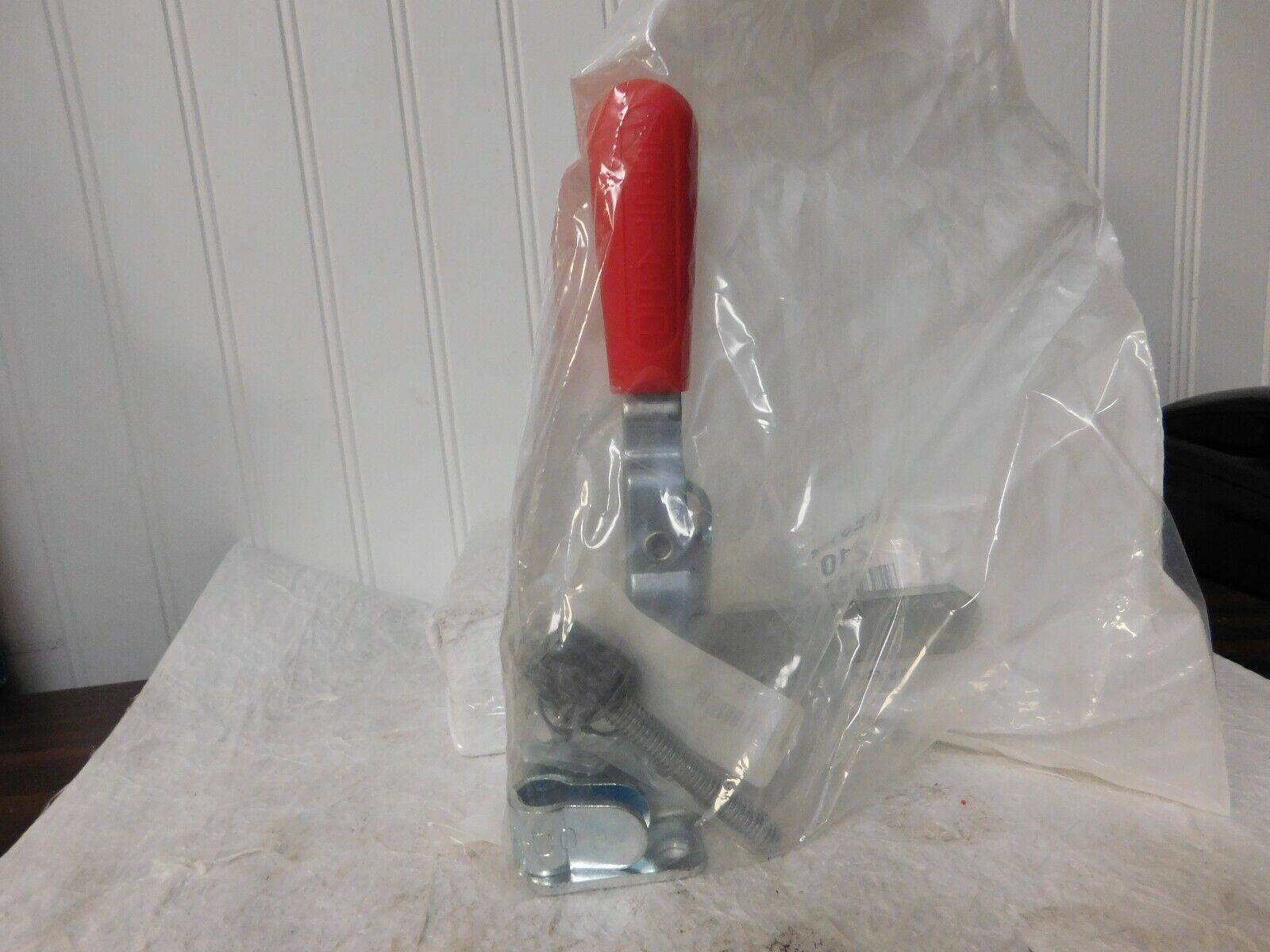

This listing is for One Clamp that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Cristy june 18 2019
CM 3027
SL3
LOCATION: CM3027SL3
COUNTRY/REGION OF MANUFACTURE: United States
MPN: Does Not Apply

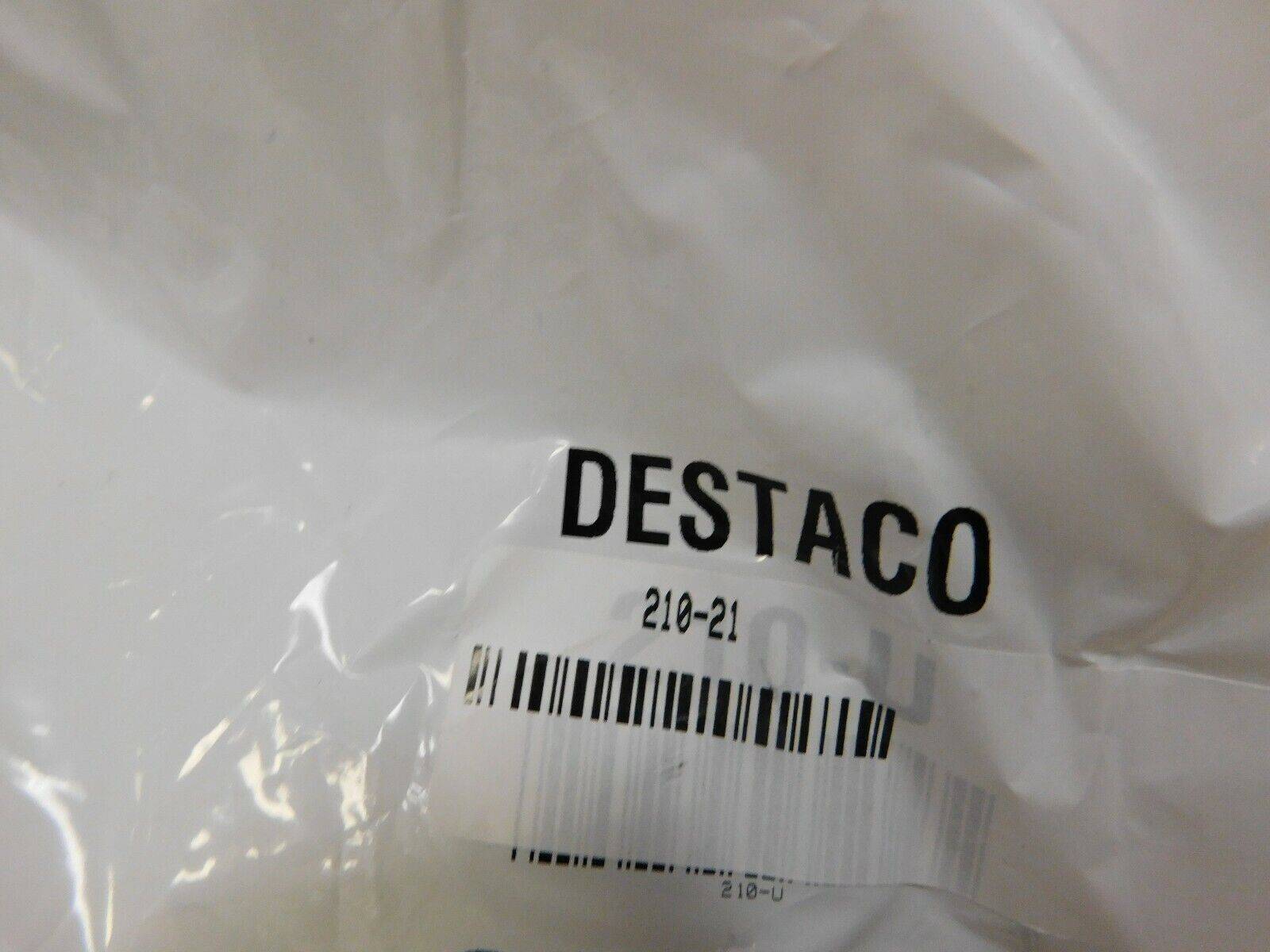

BRAND: DE-STA-CO
MODEL: 210-21
MSRP: 50.00
