Description
YG1
Spiral Flute Combo Tap
MSRP: $100
- EDP Number T2786
- Size & Pitch 1-8
- Diameter (Decimal Inch) 1.0000″
- Diameter (mm) 25.40mm
- Overall Length (Decimal Inch) 5.1300″
- Length/Diameter 2.5xD
- Chamfer Type Modified Bottoming
- Overall Length (mm) 130.30mm
- Thread Length (Decimal Inch) 0.9840″
- Thread Length (mm) 24.99mm
- Square Length (Decimal Inch) 0.8100″
- Square Length (mm) 20.57mm
- Shank Diameter (Decimal Inch) 0.8000″
- Shank Diameter (mm) 20.32mm
- Square Size (Decimal Inch) 0.6000″
- Square Size (mm) 15.24mm
- Neck Diameter (Decimal Inch) 0.7870″
- Connection (mm) 20.32 x 15.24mm
- Connection (Decimal Inch) 0.8 x 0.6″
- Useable Length (Decimal Inch) 3.0910″
- Neck Diameter (mm) 19.99mm
- Drill Size (Decimal Inch) 0.8863″
- Drill Size (mm) 22.51mm
- Useable Length (mm) 78.51mm
- Thread Series UNC
- Pitch Limit H6
- Chamfer Length 2P-3P
- Finish Bright
- Blank Standard 302A
- Helix Angle (Degree) 40 Degree
- Number of Flutes 4
- Tap Type SPFL
- Shank Type Square
- Coolant Through No
- Ring Color Black
- Trade Name Combo Tap
- Series T2
- Material HSS-EX
- Product Type Spiral Flute Tap

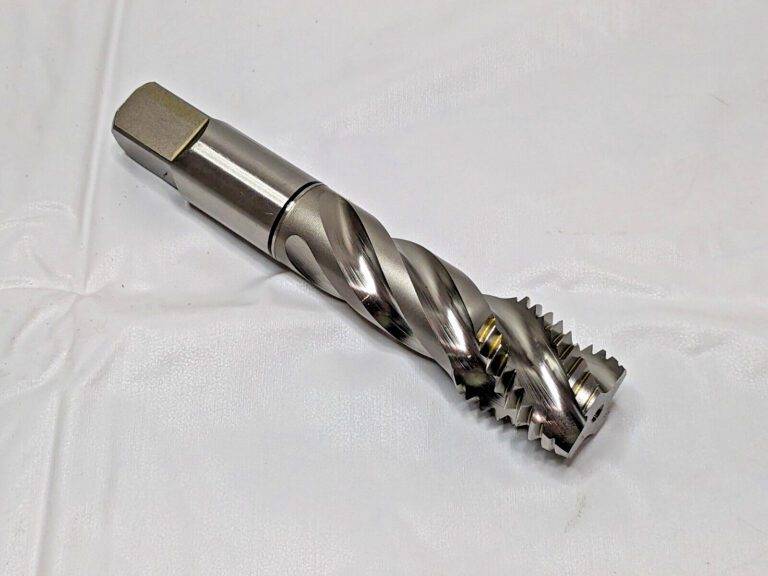

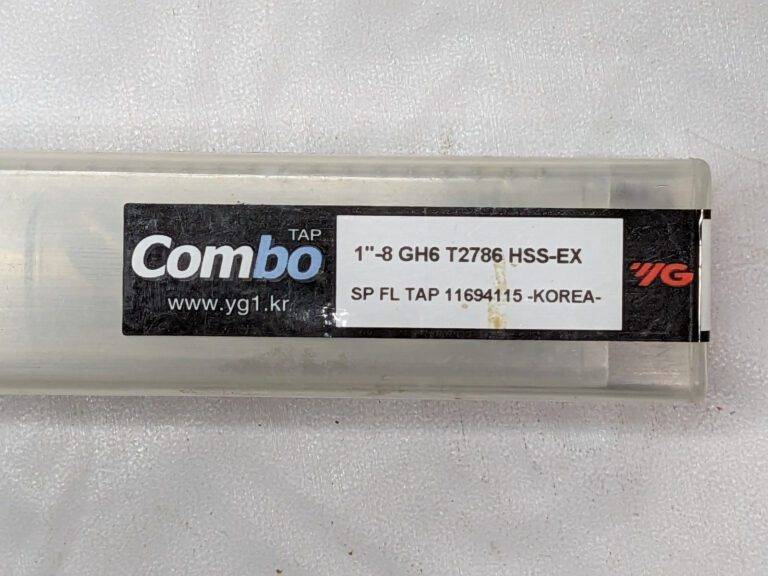

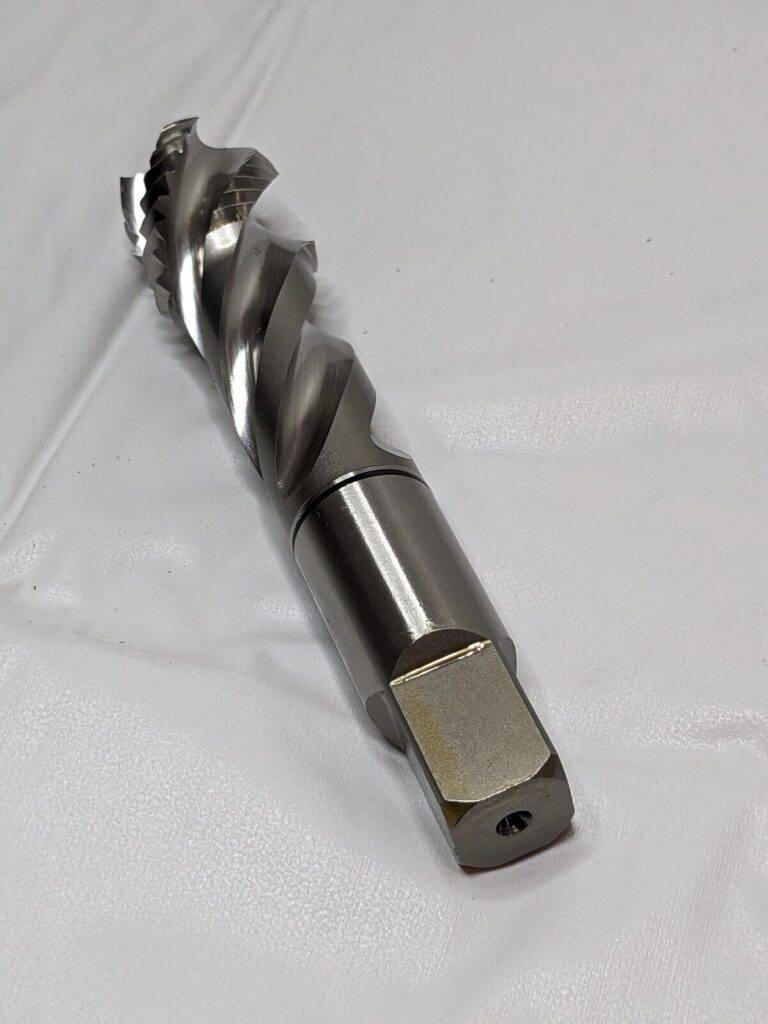

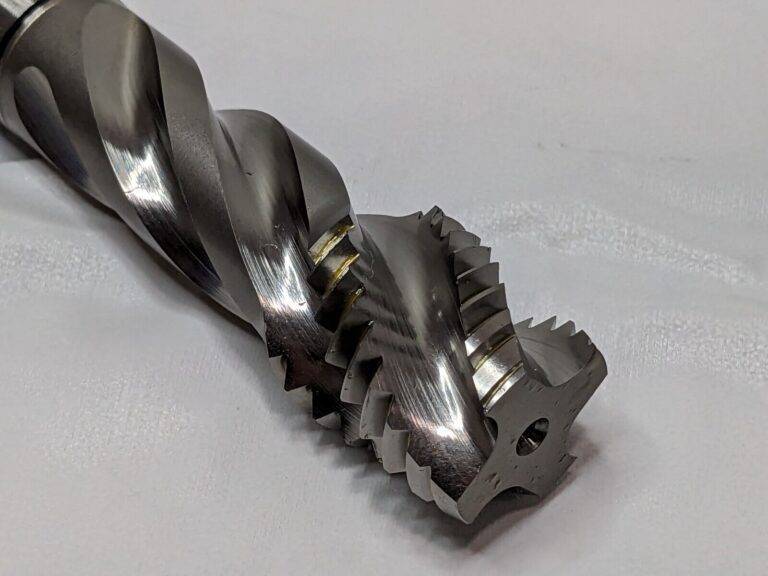

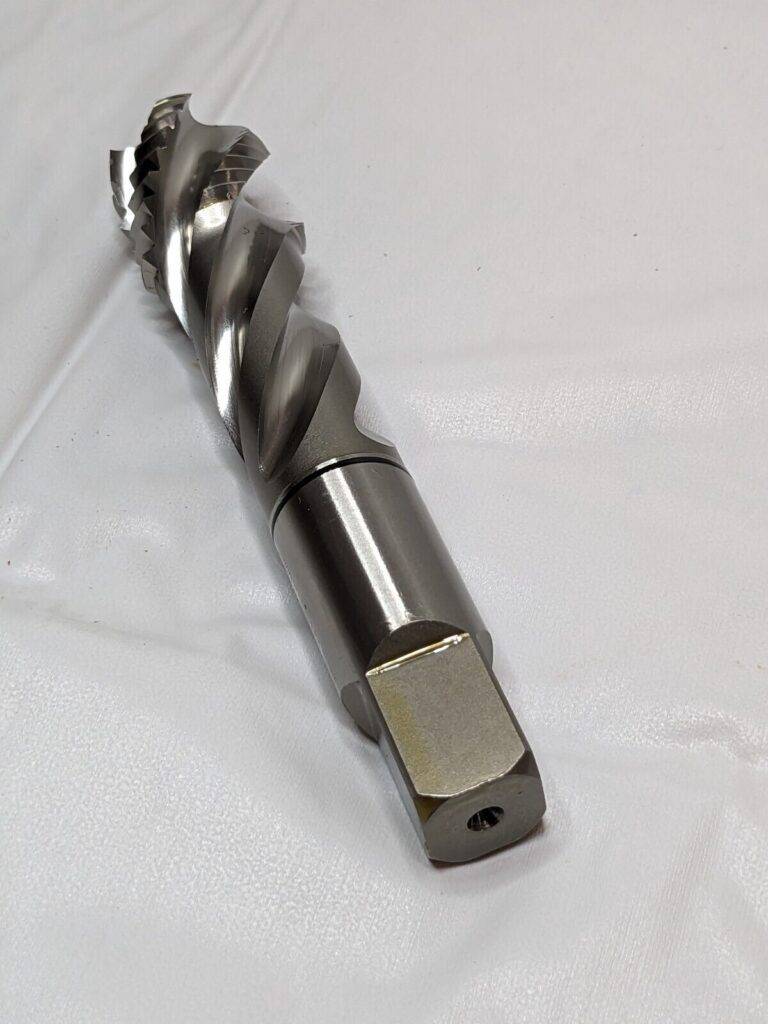

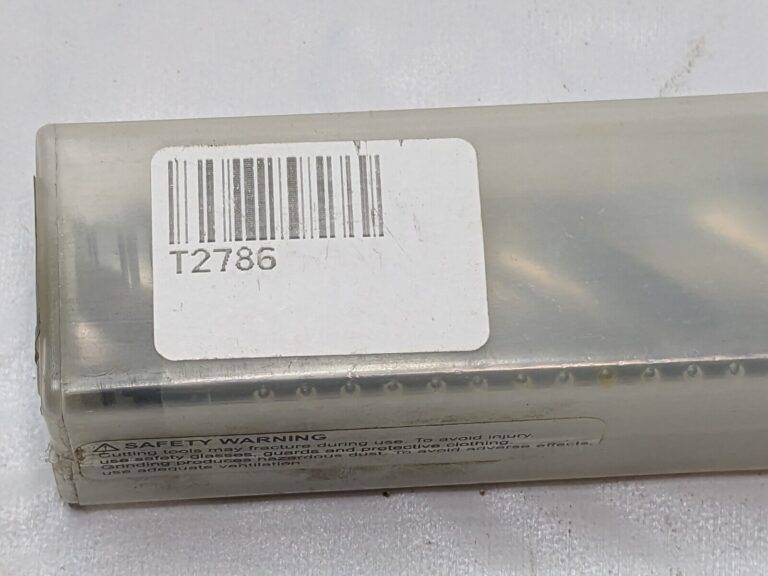

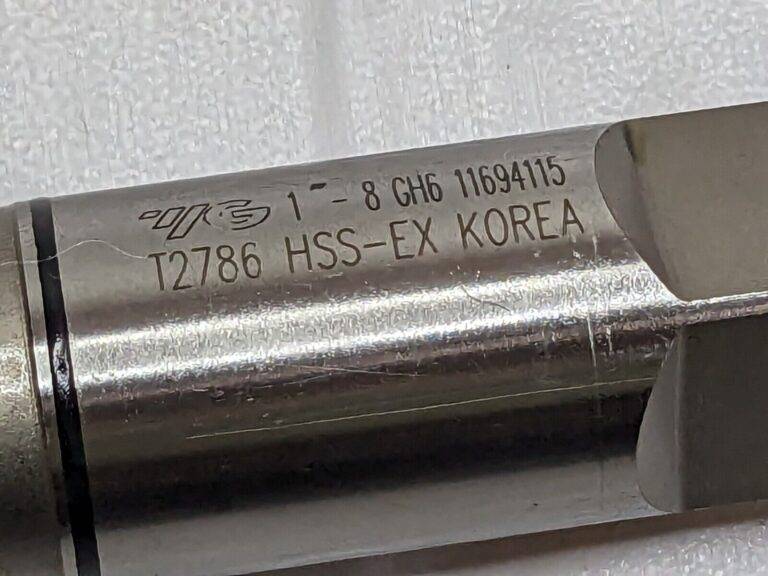

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
May 24 2024VM
VM13055
Cab Legend Bin 21
BRAND: YG1
MSRP: $100
TAP THREAD SIZE: 1″-8
MPN: T2786
COUNTRY/REGION OF MANUFACTURE: Korea, Republic of
LOCATION: VM13055CabLegendBin21
