Description
WORKSMART

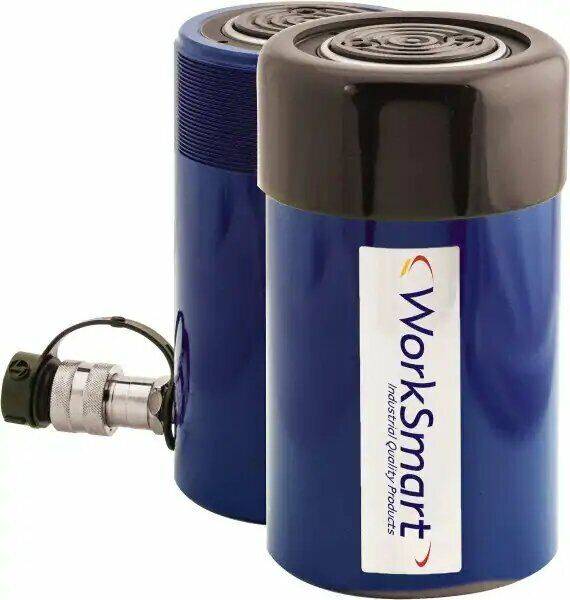

Hydraulic Cylinder
| Type | Single Acting |
| Load Capacity (Ton) | 55 |
| Piston Stroke (Decimal Inch) | 4.06 |
| Cylinder Bore Diameter (Decimal Inch) | 3.74 |
| Lowered Height | 8.94 |
| Oil Capacity | 44.57 |
| Effective Area | 10.98 |
| Maximum Height (Decimal Inch) | 13.00 |
| Outside Diameter (Inch) | 5 |
| Plunger Diameter | 3.15 |
| Base To Inlet Port (Inch) | 1-7/32 |
| Saddle Diameter (Inch) | 2.76 |
| Plunger Internal Thread Size | None |
| Collar Thread | 5 – 12 |
| Collar Thread Length (Inch) | 2.17 |
| Base Mounting Holes Bolt Circle (Inch) | 3-3/4 |
| Two Base Mounting Holes Thread Size | 1/2-13 |
| Base Mounting Hole Thread Depth (Inch) | 0.75 |
| Maximum Pressure (psi) | 10000 |
Open-box, unused unit.

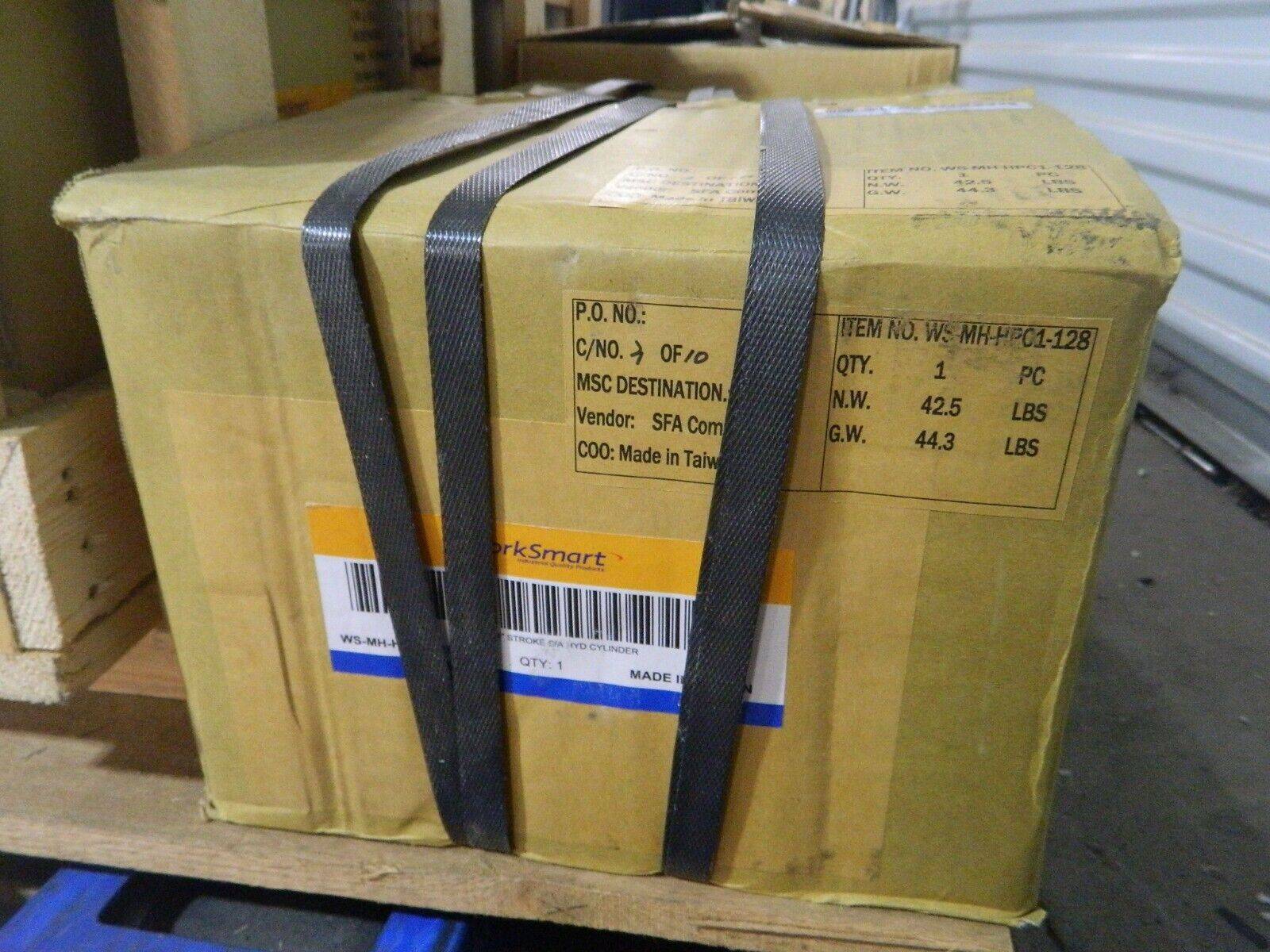

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
*Florida residents are required to pay 7% sales tax*
Industry Recycles
155 Center Ct
Venice, FL, 34285
jun0920
DB6457
P303mid
BRAND: WorkSmart
MPN: WS-MH-HPC1-128
CYLINDER ACTION: Single-Acting
