Description
Widia
Indexable Boring Bar
MSRP: $125.00
- Minimum Bore Diameter (Decimal Inch) 0.7700
- Maximum Bore Depth (Decimal Inch) 1.8750
- Toolholder Style SCLPR
- Tool Material Steel
- Hand of Holder Right Hand
- Shank Diameter (Inch) 5/8
- Overall Length (Decimal Inch) 10.0000
- Overall Length (Inch) 10
- Compatible Insert Size Code CPMT3252
- Insert Holding Method Screw
- Compatible Insert Shape Diamond
- Insert Included No
- Rake Positive
- Cutting Direction Right Hand
- Rake Angle -2.00
- Lead Angle -5
- Series A-SCLP
- Insert Inscribed Circle (Inch) 3/8
- Compatible Insert Thickness (Decimal Inch) 0.1563
- Compatible Insert Thickness (mm) 3.97
- Multi-use Tool Yes
- Cutting Tool Application Boring
- Back of Bar to Cutting Edge (Decimal Inch) 0.7185
- Center to Cutting Edge (Decimal Inch) 0.4060
- Primary Workpiece Material Universal
- Multi-Use Application Boring
- Number of Inserts Used on Toolholder 1
- UNSPSC Code 23241601
- Insert Thickness (Decimal Inch) 0.1563
- Insert Thickness (Inch) 5/32
- Coolant Hole Diameter (Decimal Inch) 0.1560
- Manufacturers Catalog Number A10SSCLPR3
- Radial Rake 0
- Coolant Through Yes
This item is new and in good condition. SOLD AS IS.

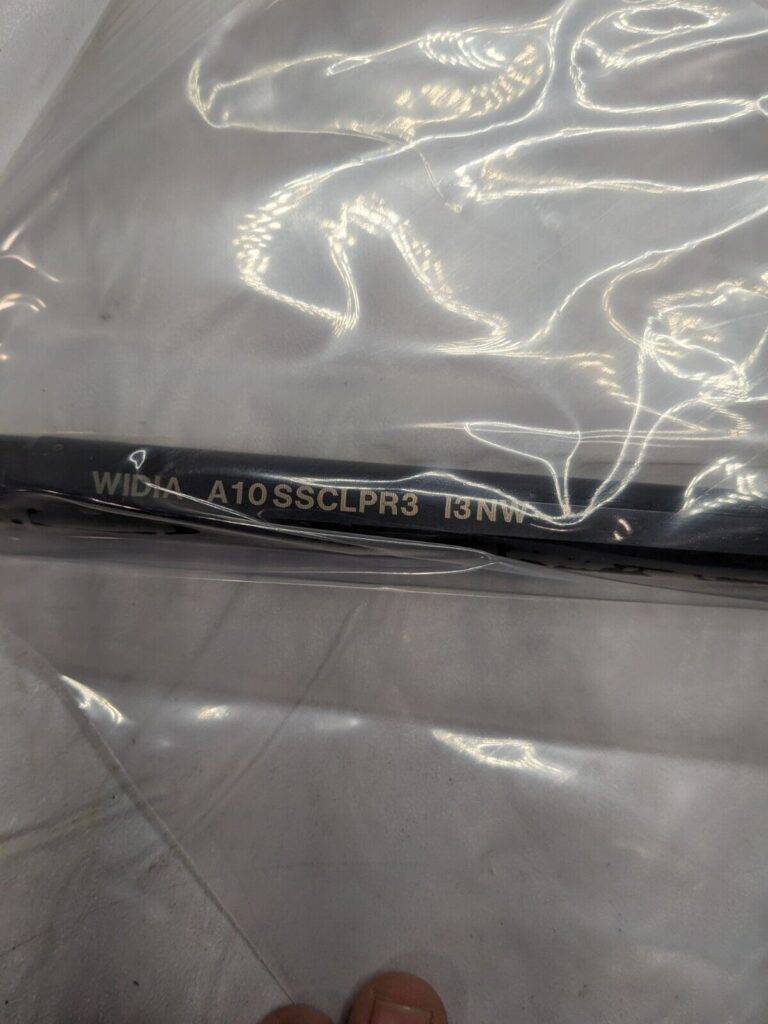

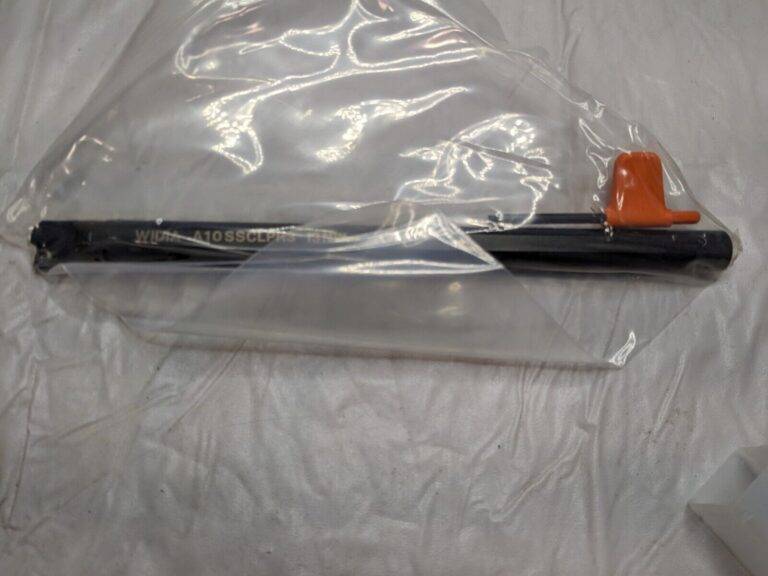

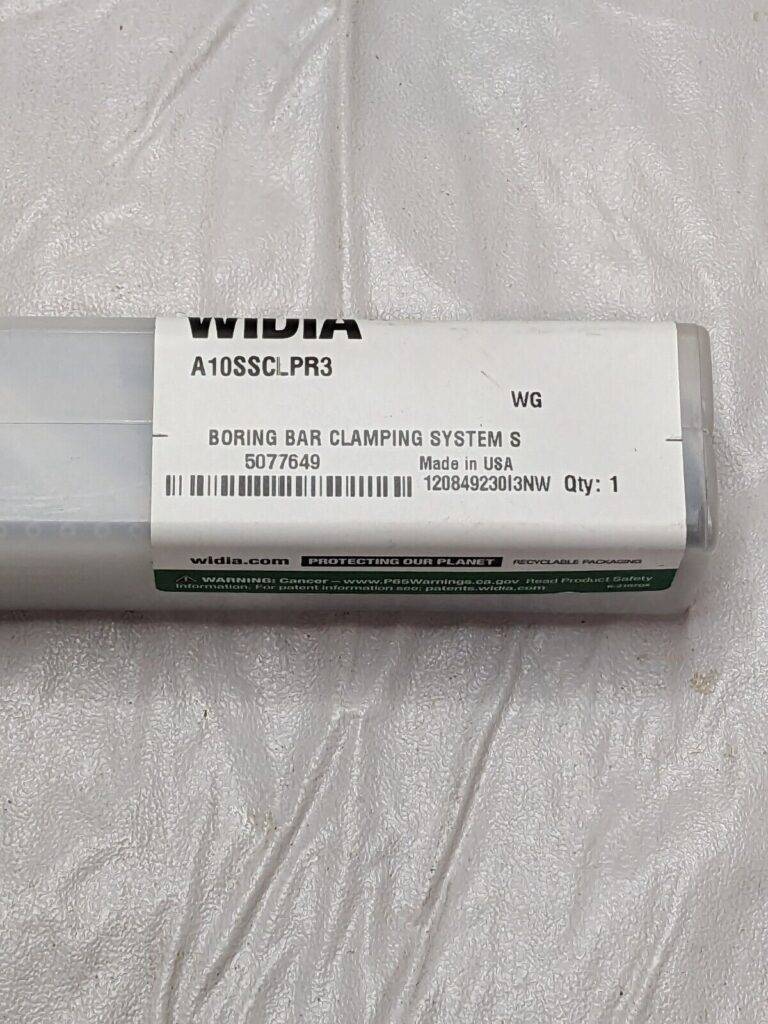

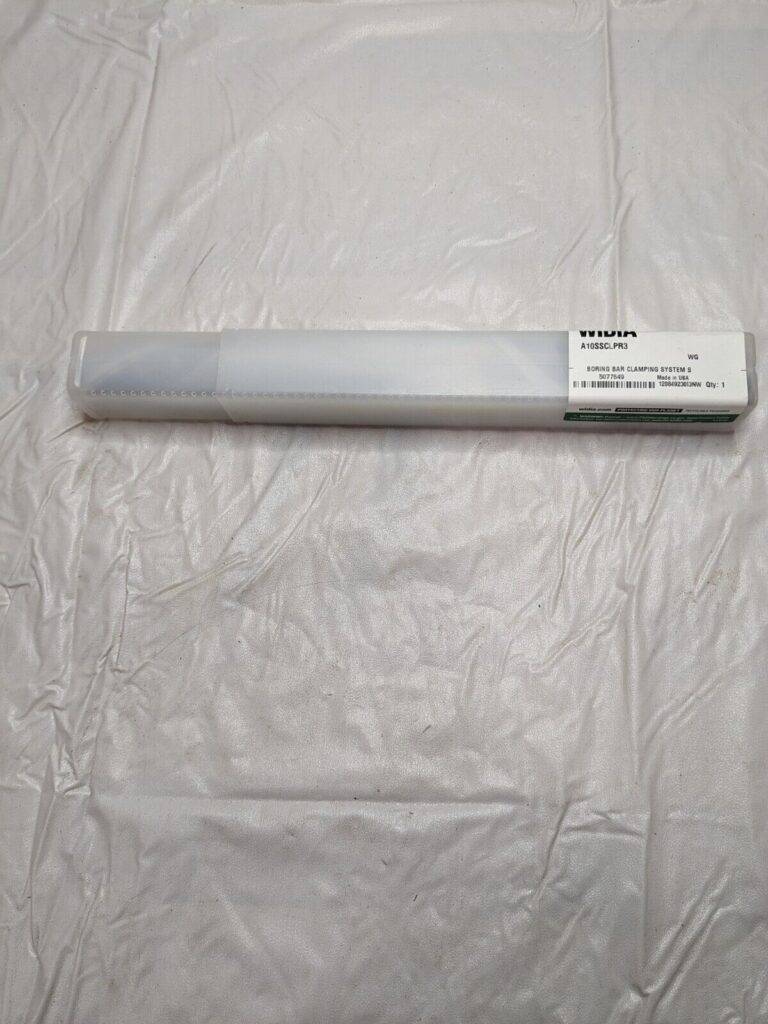

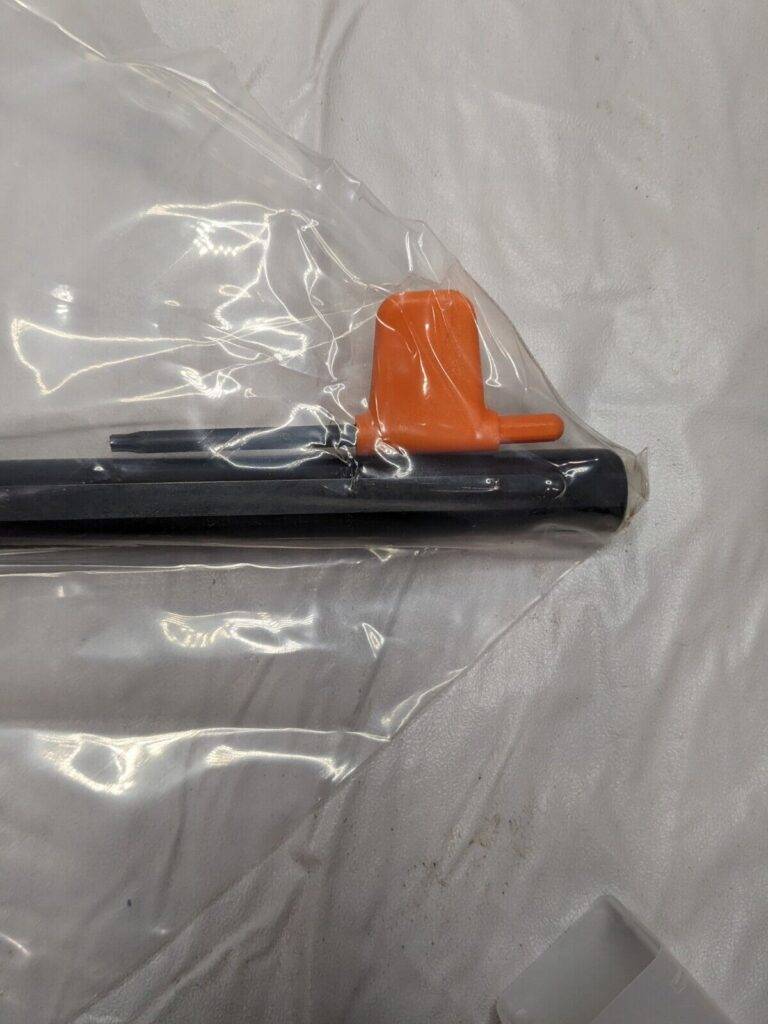

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
April 09 2024
TB 16285
Cab Phil Bin 4
BRAND: Widia
MSRP: $125.00
MODEL: 5077649
MPN: Does Not Apply
COUNTRY/REGION OF MANUFACTURE: Unknown
LOCATION: TB16285CabPhilBin4
