Walter Valenite
MSRP: $180
Model: 5357184
Description:
Insert Style RCMT
Insert Size 1605M0
Material Carbide
Inscribed Circle (mm) 16.00
Inscribed Circle (Decimal Inch) 0.6299
Thickness (Inch) 7/32
Thickness (Decimal Inch) 0.2188
Manufacturer’s Grade WSM30
Coating TiAlN/Al2O3/ZrCN
Material Grade M30/S30/P30
Chip Breaker PM5
ISO Number RCMT1605M0-PM5
Rake Positive
Relief Angle 7
Coating Process PVD
Manufacturers Catalog Number RCMT1605M0-PM5
Primary Workpiece Material M; S
Secondary Workpiece Material P
Series Tiger-tec
Maximum Depth of Cut (mm) 7.00
Maximum Depth of Cut (Decimal Inch) 0.2756
Insert Holding Method Screw
Multi Use Application Turning
MultiUseTool Yes
Shape Round
*OPEN PACKAGE/BOX FOR INSPECTION AND PICTURES ONLY. Item is in excellent condition. Please Refer to our Pictures and description. SOLD AS IS. If you have any questions, please contact us!

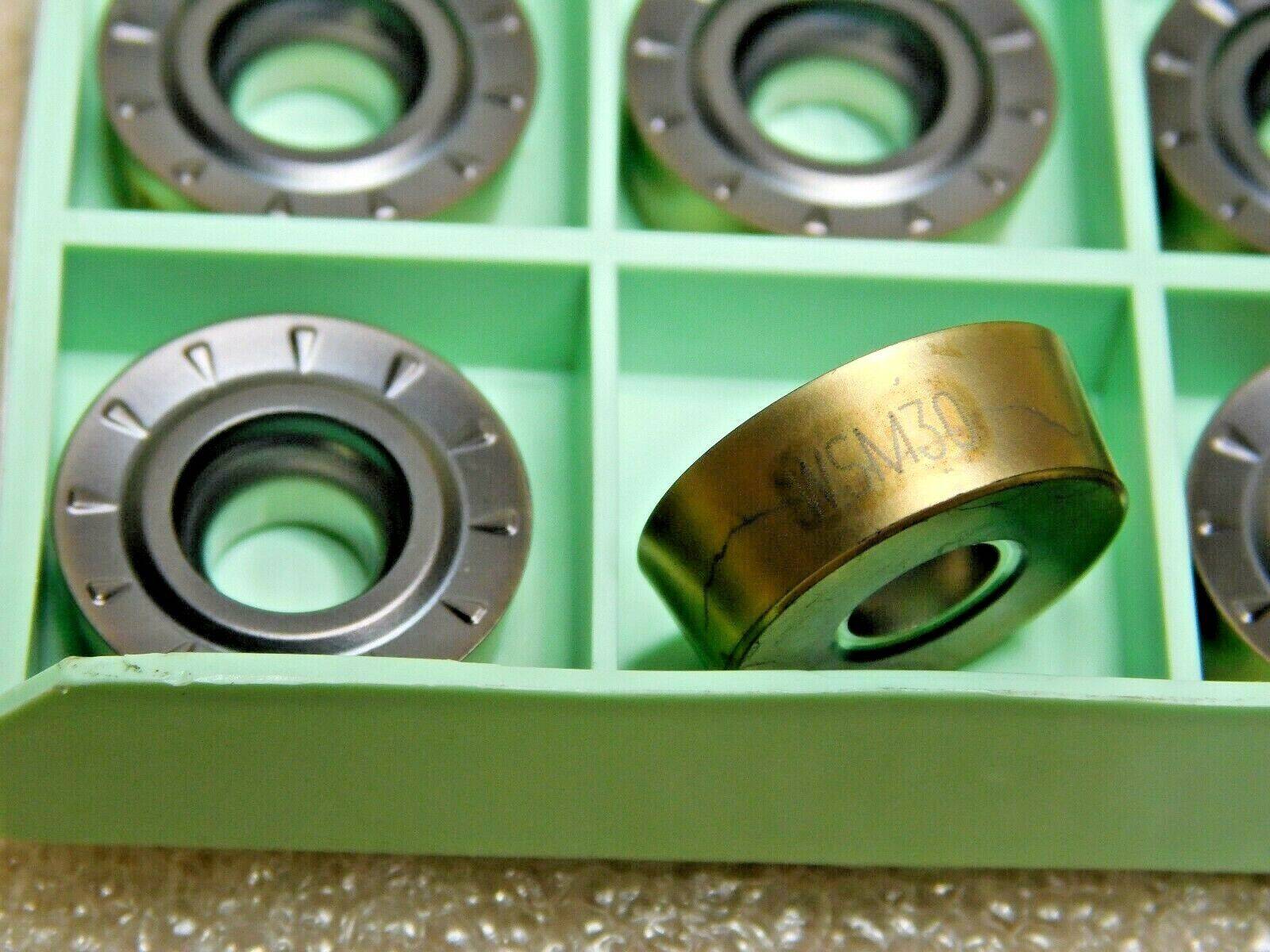

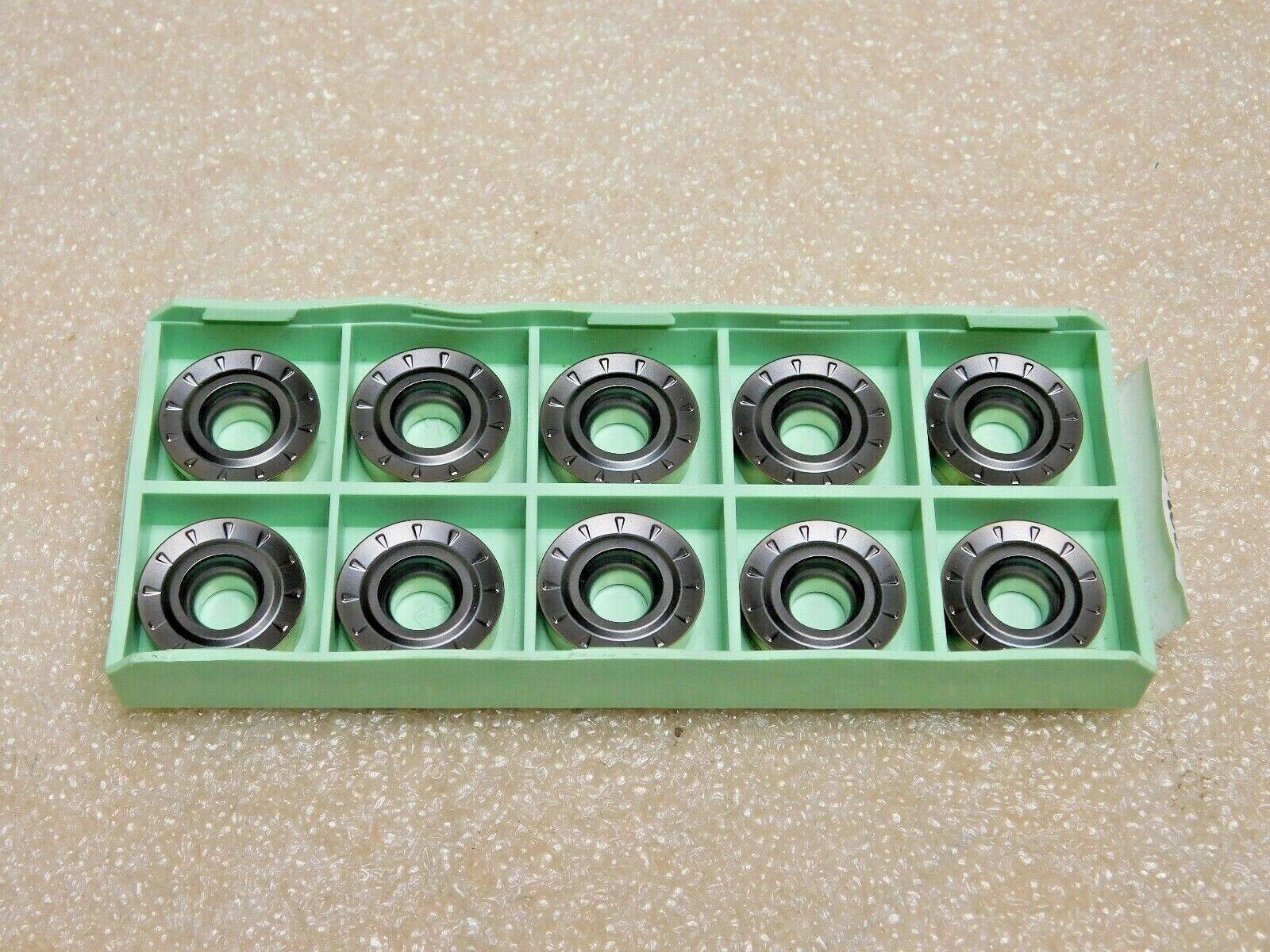

This listing is for One Pack of 10 Carbide Turning Inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Vivian July 09 2020
VM8456
Cab Crab Bin 79
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: Germany
MPN: 1605M0PM5
BRAND: Walter Valenite
INSERT MATERIAL: Carbide
LOCATION: VM8456cabcrabbin79
MSRP: $180
MODEL: 5357184
