Description
Walter
MSRP: $120.00
Model: 5025030
Description:
Insert Style: TCMT
Insert Size: 21.52
Material: Carbide
Length (mm) : 11.00 —
Length (Decimal Inch) : 0.4330 —
Inscribed Circle (Decimal Inch) : 0.2500
Inscribed Circle (Inch) : 1/4
Thickness (Inch) : 3/32
Thickness (Decimal Inch) : 0.0938
Corner Radius (Inch) : 1/32
Corner Radius (Decimal Inch) : 0.0313
Manufacturer’s Grade: WAK20
Coating: TiCN/Al2O3/TiN
Material Grade: K20/P10 —
Chip Breaker: PM5 RK4
ISO Number: TCMT110208-PM5 —
Rake: Positive —
Relief Angle: 7
Coating Process: CVD
Manufacturers Catalog Number: TCMT2(1.5)2-PM5 —
Primary Workpiece Material: K —
Secondary Workpiece Material: P —
Included Angle: 60
Series: Tiger-tec —
Maximum Depth of Cut (mm): 3.00 —
Maximum Depth of Cut (Decimal Inch): 0.1180 —
Insert Holding Method: Screw
Multi Use Application: Turning —
MultiUseTool: Yes —
Shape: Triangle

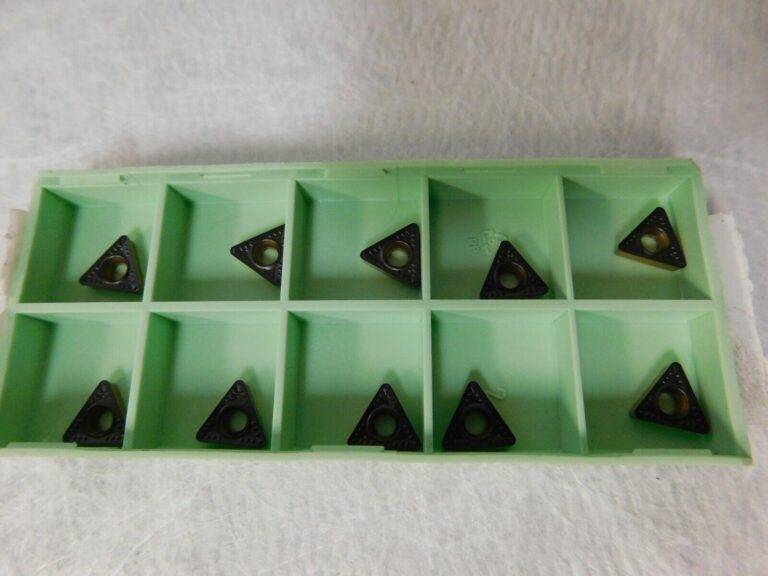

This listing is for One Pack of 10 inserts that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Cristy July 24 2019
CM 3709
Tim 47
LOCATION: CM3709Tim47
MPN: Does Not Apply
MSRP: 120.00
COUNTRY/REGION OF MANUFACTURE: Germany
MODEL: 5025030
INSERT TYPE: Turning Insert
BRAND: Walter
