Description
Walter
MSRP: $50.00
Model: 5059580
Description:
Drill Bit Size (mm) 1.70
Drill Bit Size (Decimal Inch) 0.0669
Drill Point Angle 118
Drill Bit Material High Speed Steel
Drill Bit Finish/Coating Bright
Flute Type Spiral
Cutting Direction Left Hand
Shank Type Straight
Coolant Through No
Flute Length (mm) 20.00
Flute Length (Decimal Inch) 0.7874
Overall Length (mm) 43.00
Overall Length (Decimal Inch) 1.6929
Flute Length x Diameter Ratio 8xD
Point Type N
Shank Diameter (mm) 1.70
Shank Diameter (Decimal Inch) 0.0669
Maximum Drilling Depth (Decimal Inch) 0.6693
Maximum Drilling Depth (mm) 17.00
Spiral Type Regular Spiral
Shank Length (mm) 23.00
Shank Length (Decimal Inch) 0.9055
Specification Designation DIN
Web Configuration Tapered
Drill Bit Diameter Tolerance (mm) h8
Number of Flutes 2
Specification Number DIN 338
Material Grade M2

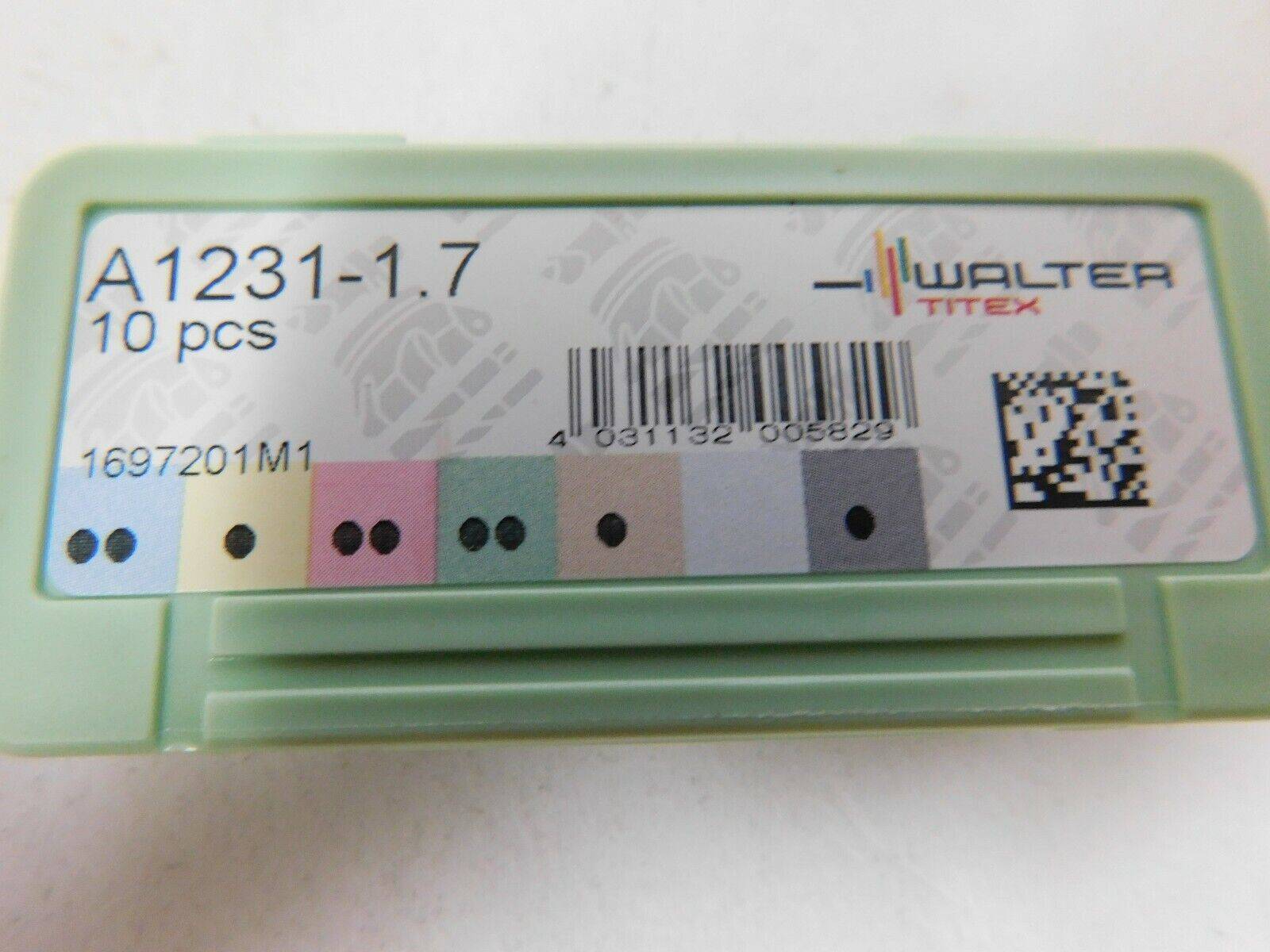

Series/List A1231

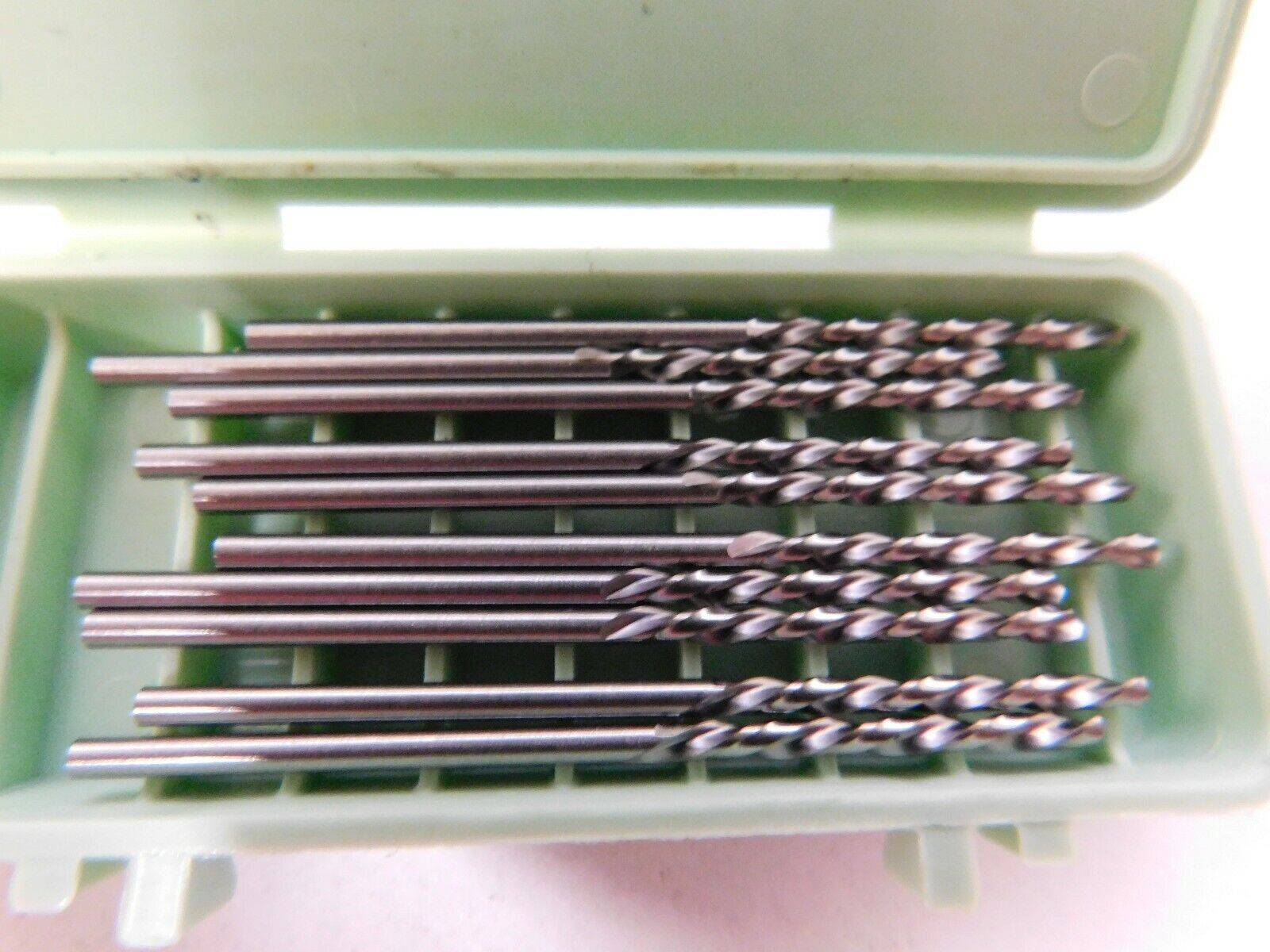

This listing is for One Pack of 10 that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Cristy September 24 2019
CM 4710
Polar 14
LOCATION: CM4710Polar14
COUNTRY/REGION OF MANUFACTURE: Germany
MSRP: 50.00
BRAND: Walter
