Description
Walter
1 Lot of 10 Inserts
MSRP: $170.00
- Insert Style ADMT
- Insert Size 08
- Insert Material Solid Carbide
- Insert Shape Parallelogram
- Inscribed Circle (Inch) 17/64
- Manufacturer Grade WKP25S
- Corner Radius (Decimal Inch) 0.0157
- Corner Radius (mm) 0.40
- Number Of Cutting Edges 2
- Thickness (Decimal Inch – 4 Decimals) 0.1320
- Coating/Finish TiCN; Al2O3
- Relief Angle 15.00
- Maximum Depth of Cut (Decimal Inch) 0.3750
- Insert Size Code 080304
- Material Grade P25; K25
- Width (Inch) 17/64
- Length (Inch) 3/8
- Inscribed Circle (Decimal Inch) 0.2660
- Thickness Range (Decimal Inch) 0.1250 to 0.1500
- Corner Radius (Inch) 1/64
- Inscribed Circle Range (Decimal Inch) 0.2500 to 0.3000
- Length Range (Decimal Inch) 0.3200 to 0.4000
- Insert Hand Right Hand
- Series ADMT
- Coating Process CVD
- Rake Positive
- Primary Workpiece Material Cast Iron; Steel
- Primary Workpiece Material Code P; K
- Ansi Code ADMT080304R-F56 WKP25S
- Iso Code ADMT080304R-F56 WKP25S
- Standards ISO; ANSI
- Rake Angle 16
- Cutting Edge Style Honed; Chamfered
- Manufacturers Catalog Number ADMT080304R-F56
- Cutter Series Compatibility F4042; F4038
- Chip Breaker F56
- Material Application Cast Iron; Steel
- UNSPSC Code 23291601
- Insert Holding Method Screw
- Coating Classification CVD
- Single or Double Sided Insert Single
- Included Angle Degree 85
- Width (Decimal Inch – 4 Decimals) 0.2660
- Width (Mm – 2 Decimals) 6.75
- Multi-Use Tool Yes
- Length (Decimal Inch – 4 Decimals) 0.3750
- System Of Measurement Decimal Inch
These items are new and in the original sealed package. SOLD AS IS.

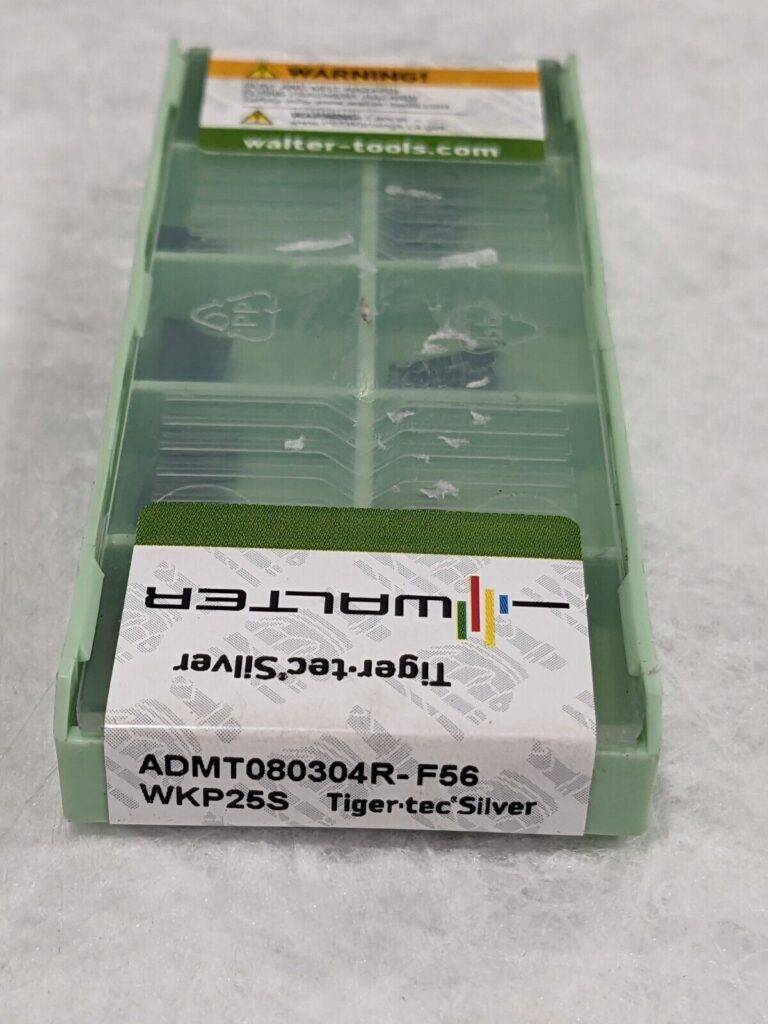

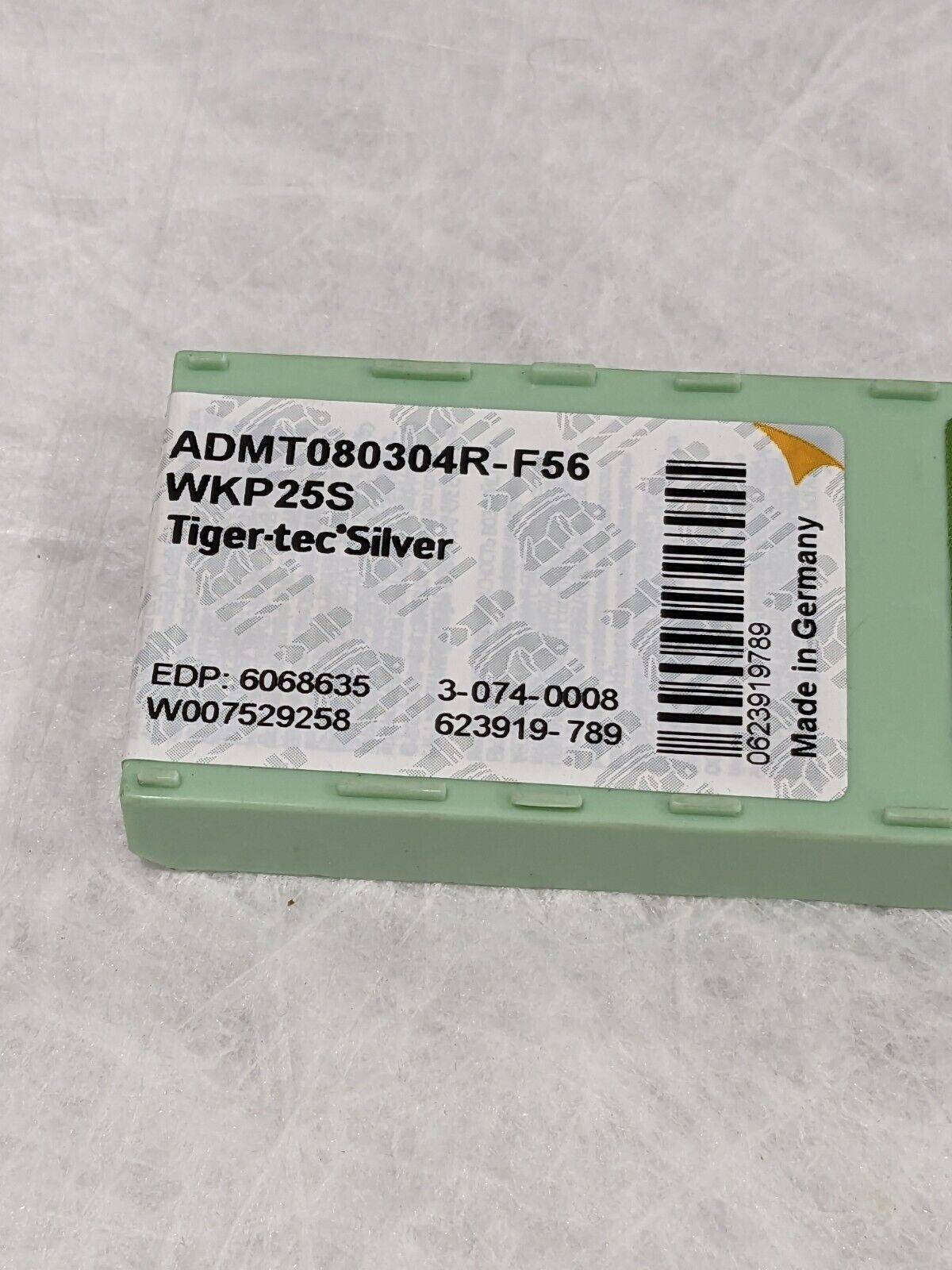

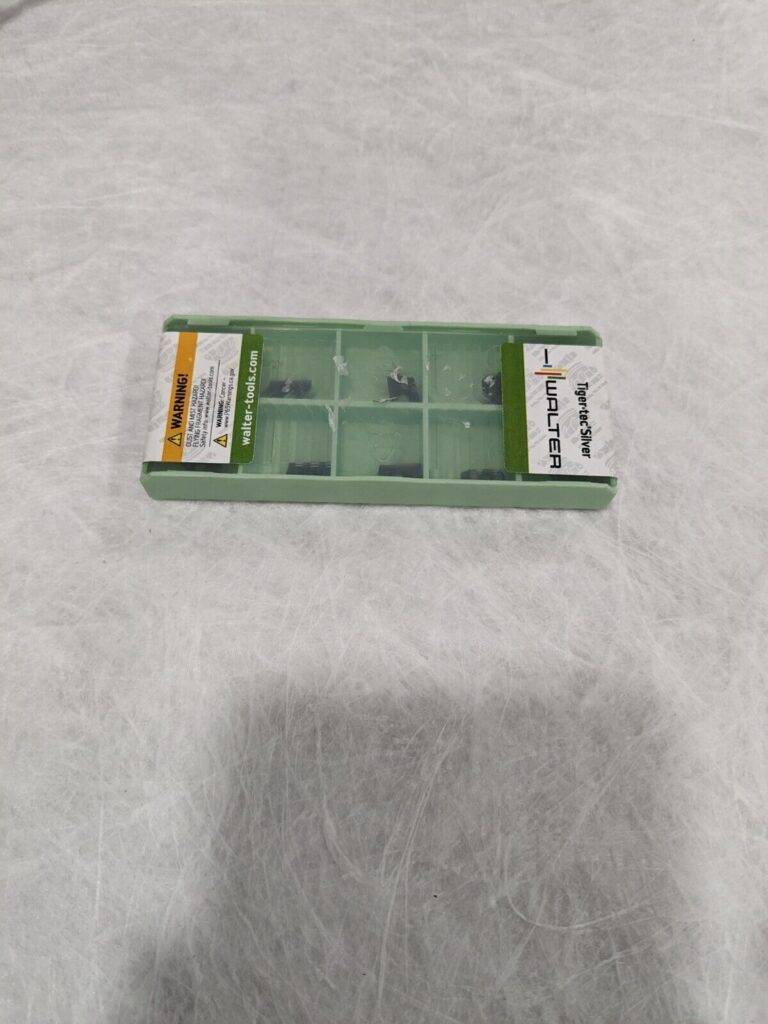

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
May 20 2024
TB 16729
BW 2 Bin 15
LOCATION: TB16729BW2Bin15
MPN: Does Not Apply
MSRP: $170.00
COUNTRY/REGION OF MANUFACTURE: Germany
MODEL: 6068635
INSERT TYPE: Milling Insert
BRAND: Walter
