Description
Walter Valenite
MSRP: $300
Model: 5029054
Description:
Internal or External Internal
Toolholder Type NonFace Grooving
Hand of Holder Left Hand
Maximum Depth of Cut (Decimal Inch) 0.7480
Minimum Groove Width (Decimal Inch) 0.0240
Maximum Groove Width (Decimal Inch) 0.2360
Overall Length (Decimal Inch) 14.0000
Toolholder Style MSS-I
Insert Compatibility GX16-1..; GX16-2..; GX16-3..; GX16-4..; GX24-3..; GX24-4..
Shank Width/Diameter (Decimal Inch) 2.0000
Through Coolant Coolant Through
Multi-Use Tool Yes
Multi-Use Application Threading; Turning
Insert Holding Method Self Clamp
Minimum Hole Diameter (Decimal Inch) 1.9690
Center to Cutting Edge (Decimal Inch) 1.4170
Head Length (Decimal Inch) 3.9370
Full Radius Insert Yes
Shank Length (Decimal Inch) 10.0630
Complete Insert Compatibility GX16-1E200N020-CF6; GX16-1E200N020-GD3; GX16-1E200N020-UA4; GX16-1E200N020-UF4; GX16-1E200N02-CE4; GX16-1E200N02-CF5; GX16-1E200N02-CF6; GX16-1E200N02-GD3; GX16-1E200N02-GD6; GX16-1E200N02-UD6; GX16-1E200N02-UF4; GX16-1E200N10-RD4; GX16-1E200R/L6-CE4
*USED. Item appears to be in good condition. However item has wear from previous use. Please refer to our pictures and description. SOLD AS IS.

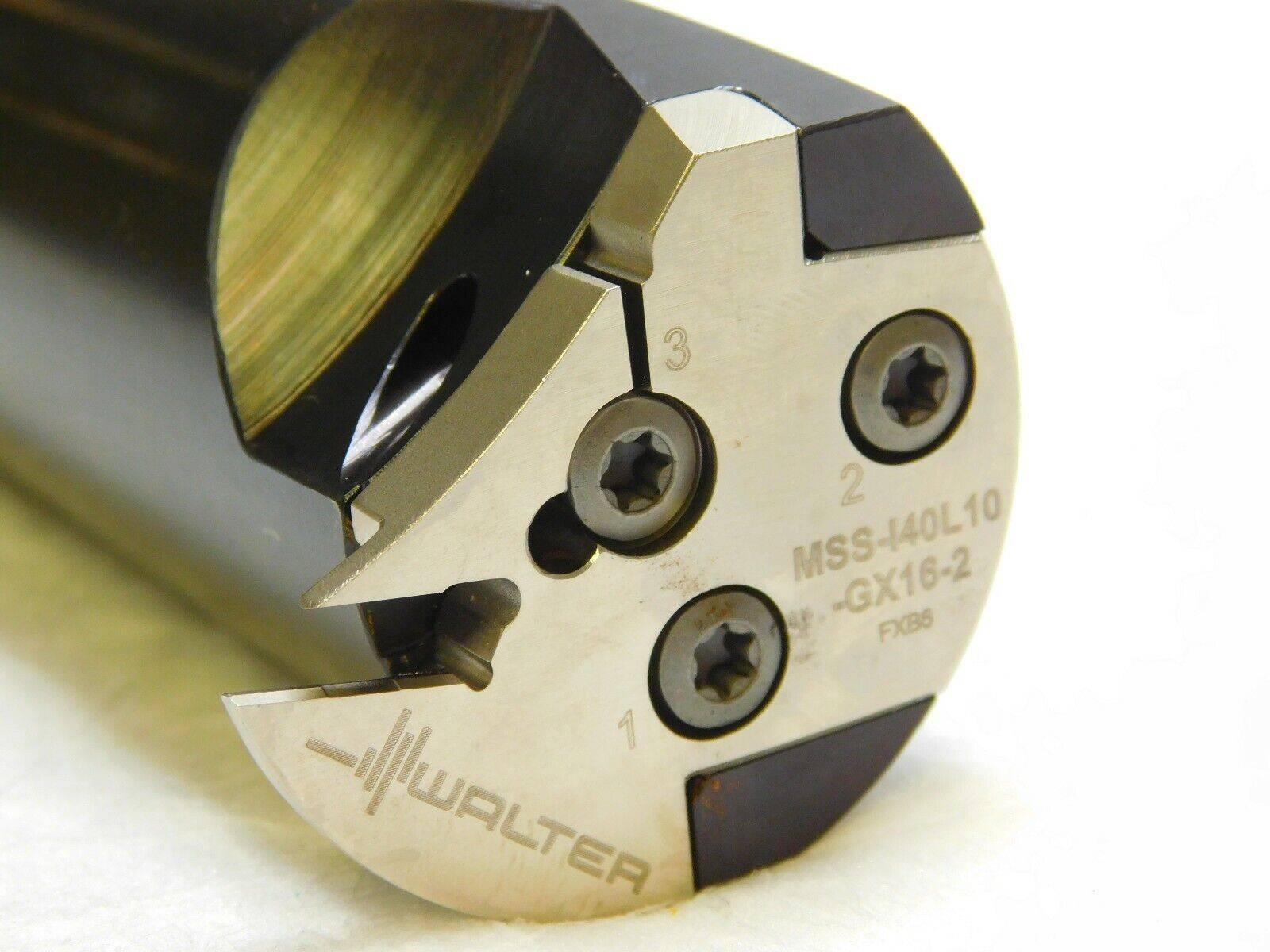

This listing is for One Indexable Grooving Toolholder that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Vivian August 17 2020
VM8664
Green Bin 43
MODEL: 5029054
COUNTRY/REGION OF MANUFACTURE: Unknown
LOCATION: VM8664greenbin43
MSRP: $300
MPN: Does Not Apply
TOOLHOLDER TYPE: Indexable Grooving Toolholder
BRAND: Walter Valenite
