Description
Valenite
MSRP: $120.00
Model: 40894
Description:
Material Carbide
Insert Style TPGA
Insert Size 1.81.51
Manufacturer’s Grade VP1510
Chipbreaker 2K
Shape Triangle
Inscribed Circle (mm) 5.56
Inscribed Circle (Decimal Inch) 0.2188
Inscribed Circle (Inch) 7/32
Thickness (Inch) 3/32
Thickness (Decimal Inch) 0.0938
Thickness (mm) 2.38
Corner Radius (Inch) 1/64
Corner Radius (mm) 0.40
Corner Radius (Decimal Inch) 0.0156
Relief Angle (Degree) 11
Hole Diameter (Decimal Inch) 0.0980
Rake Positive
Material Grade C2/C3/C7
Coating TiCN/Al2O3/TiN
Coating Process CVD
Primary Workpiece Material K
Secondary Workpiece Material P
Included Angle (Degree) 60
Length (mm) 9.62
Insert Holding Method Clamp

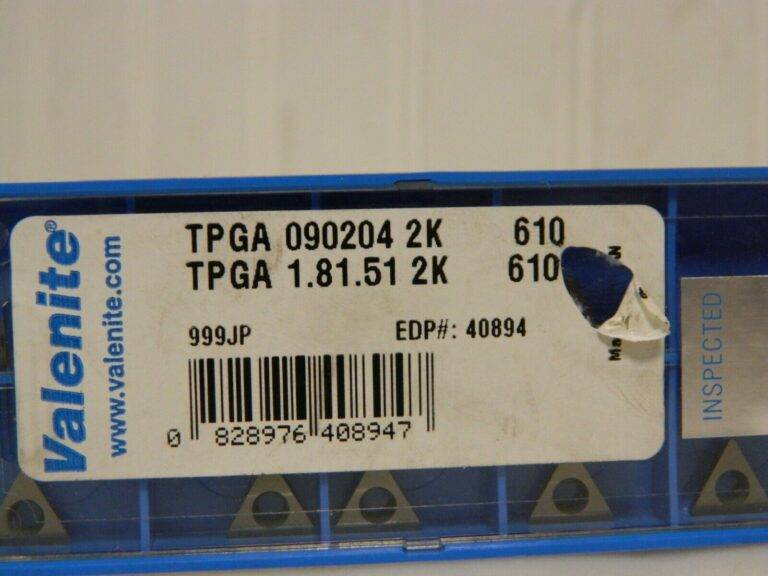

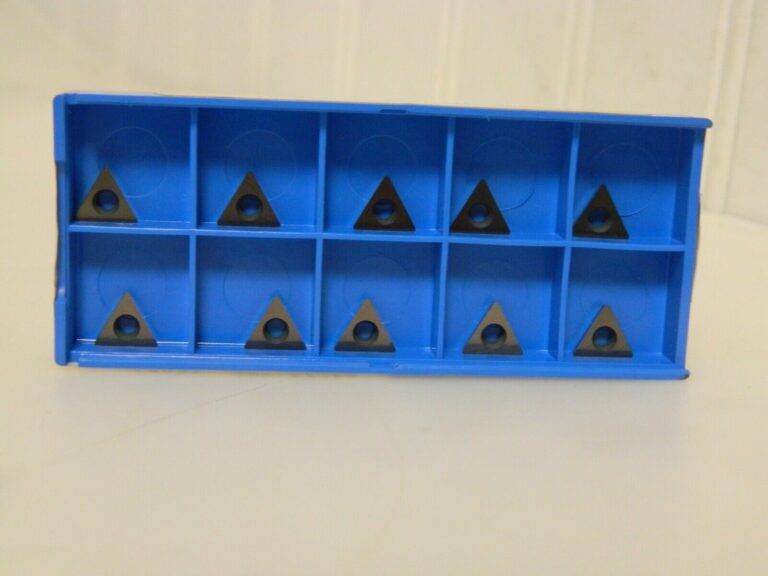

This listing is for One Lot of 10 Inserts that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Tina June 30 2020
TB 5541
Cab Meep Bin 4
LOCATION: TB5541CabMeepBin4
MPN: Does Not Apply
MSRP: 120.00
COUNTRY/REGION OF MANUFACTURE: Unknown
GRADE: VC610
MODEL: 40894
SHAPE: Triangle
BRAND: Valenite
