Description
US MOTORS
3PH Efficient Motor
| Type of Enclosure | TEFC |
| Horsepower | 3/4 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1140 |
| Voltage | 208-230/460 |
| Frequency Hz | 60 |
| Frame Size | 56C |
| Mount Type | C-Face |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 3.4-3.5/1.7 |
| Insulation Class | B |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 12.0000 |
| Shaft Diameter x Length (Inch) | 5/8 x 2-1/16 |
| Full Load Efficiency Rating | 75.50 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
USED unit.

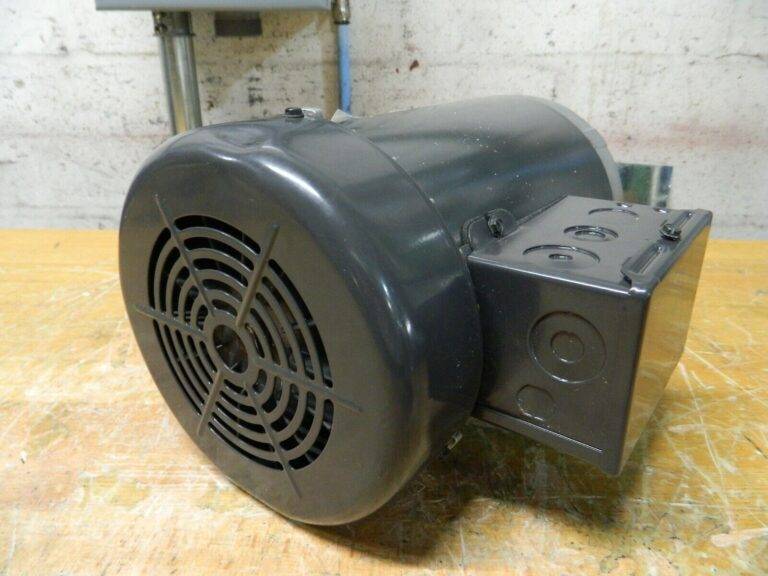

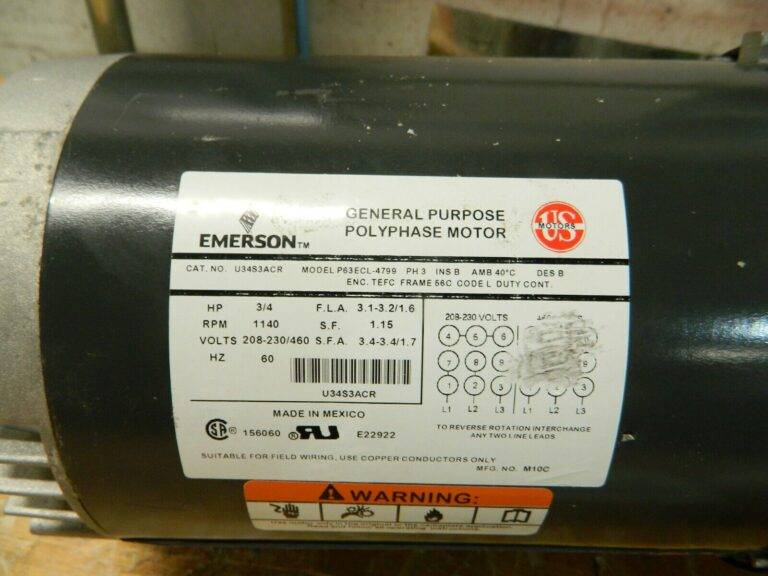

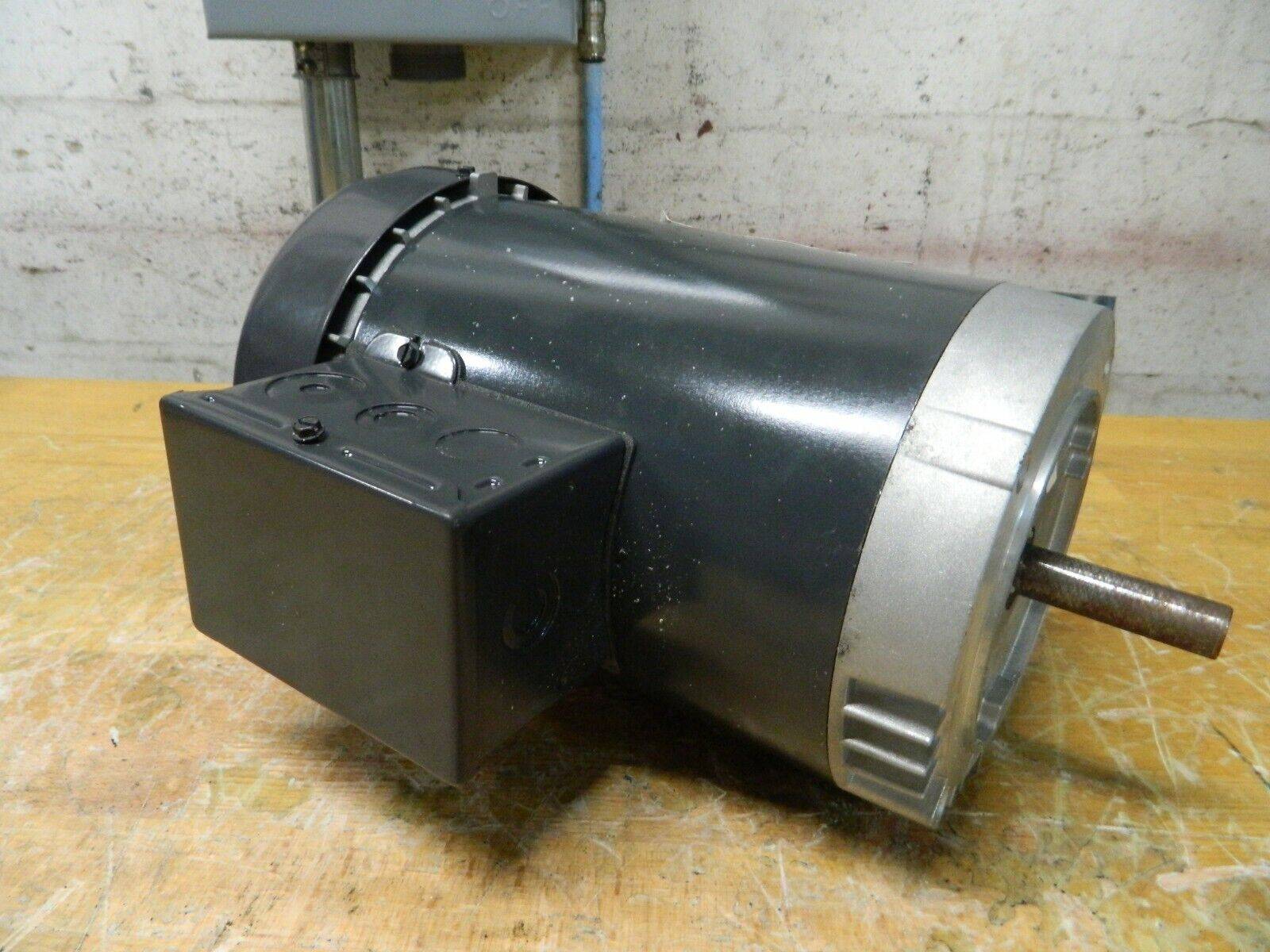

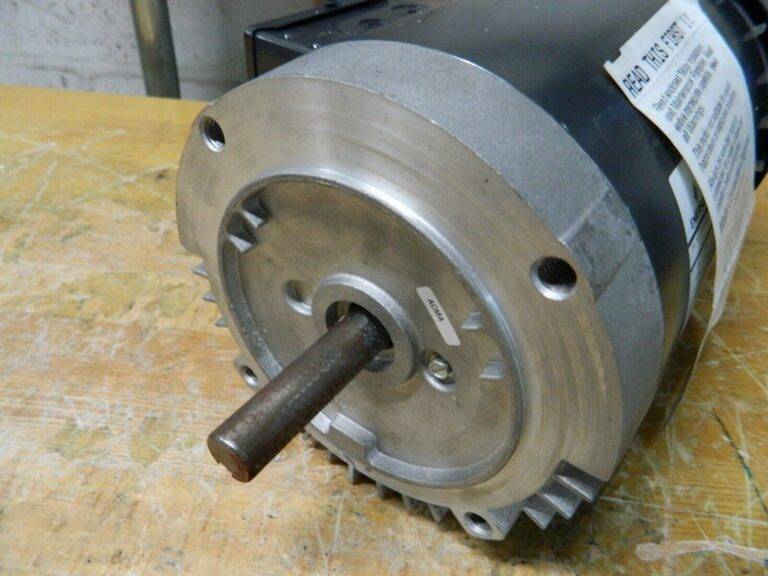

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
*Florida residents are required to pay 7% sales tax*
Industry Recycles
155 Center Ct
Venice, FL, 34285
MAY0120
DB6316
p39d
MODEL: U34S3ACR
MPN: Does Not Apply
RATED LOAD (HP): 3/4
BRAND: US Motors
NOMINAL RATED INPUT VOLTAGE: 230 V,460 V
