Description
Turning Insert: VNMG331P TCN55, Solid Carbide 41871
MSRP: $170
- Insert Style VNMG
- Insert Size Code 331
- Insert Shape Diamond
- Included Angle 35
- Inscribed Circle (Decimal Inch) 0.3750
- Corner Radius (Decimal Inch) 0.0156
- Insert Material Carbide
- Manufacturer Grade TCN55
- Coating/Finish Titanium Nitride
- Relief Angle 0
- Insert Thickness (Decimal Inch) 0.1875
- Insert Shape Code V
- Corner Radius (Inch) 1/64
- Hole Diameter (Mm) ( – 0 Decimals) 3.81
- Hole Diameter (Decimal Inch) 0.1500
- Maximum Depth of Cut (mm) 1.25
- Maximum Depth of Cut (Decimal Inch) 0.0492
- Inscribed Circle (Inch) 3/8
- Insert Holding Method Pin; Clamp
- Insert Thickness (Inch) 3/16
- Clearance Code N
- Tolerance Code M
- Series KENLOC
- Length Range (Decimal Inch) 0.6500 – 0.7000
- Rake Negative
- Insert Length (Decimal Inch) 0.6539
- Insert Length (mm) 16.61
- Primary Workpiece Material Code P; M
- Material Grade C5
- UNSPSC Code 23242105
- Chip Breaker G

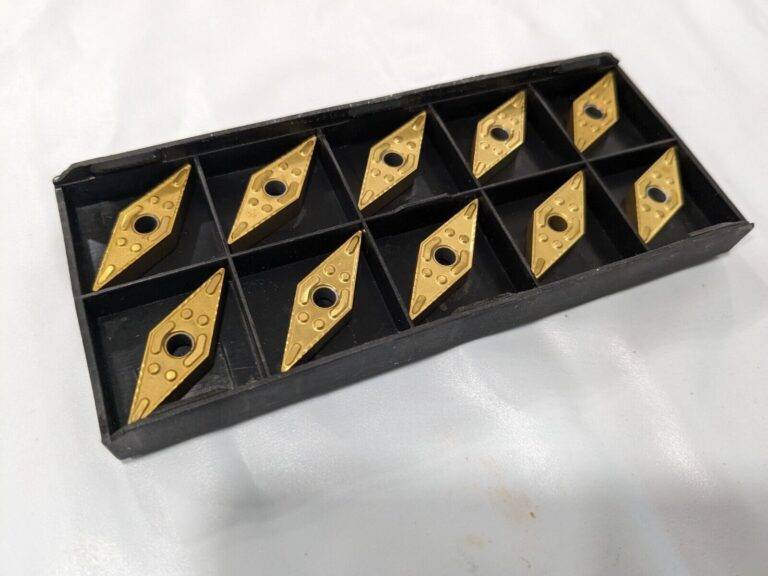

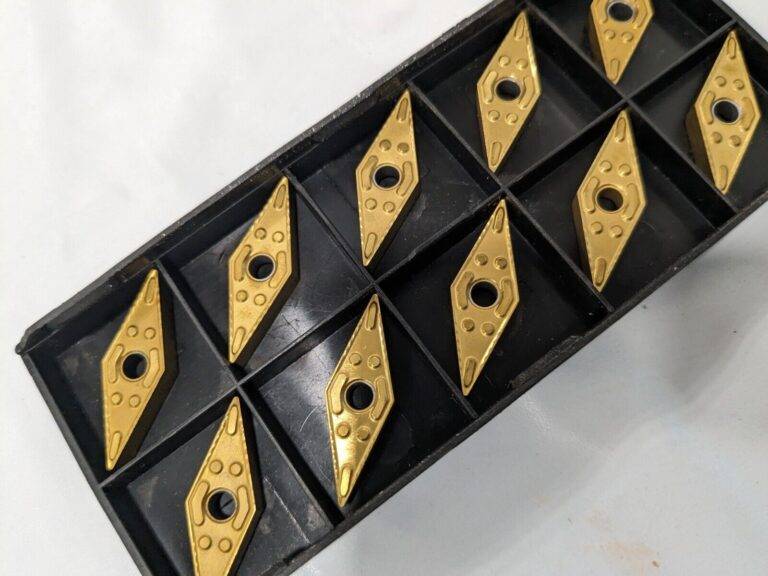

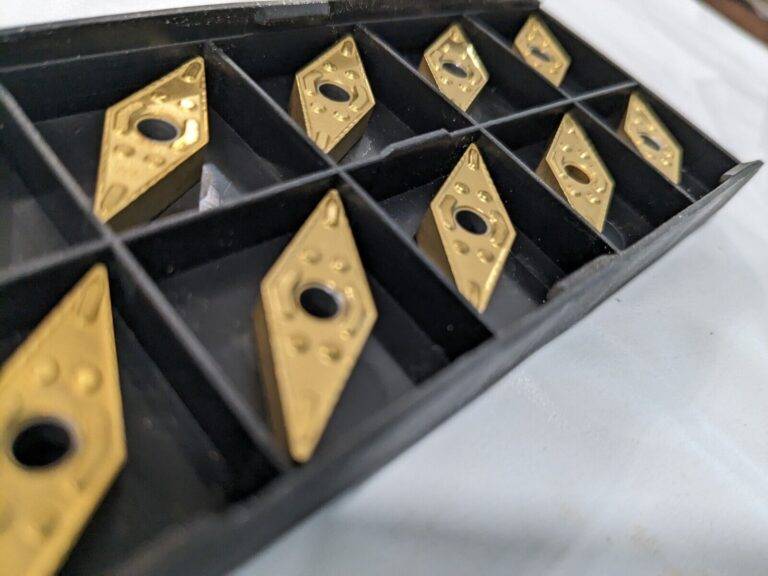

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
dec 29 23
HS3953
legend 11
INSERT MATERIAL: Carbide
INSERT TYPE: Turning Insert
MPN: 41871
