Description
BRAND Tungaloy pack of 10
Item
MSRP: $ 250.00
- specs
SNMG543
ISO Insert Code SNMG150612
Relief Angle 0
Insert Style SNMG
Corner Radius (mm) 1.20
Corner Radius (Inch) 3/64
Corner Radius (Decimal Inch) 0.0472
Included Angle 90
Manufacturer Grade AH8015
Coating/Finish TiAlN
Wiper Edge No
Insert Hand Neutral
Insert Thickness (Inch) 1/4
Insert Thickness (Decimal Inch) 0.2500
Series SNMG-HRM
Inscribed Circle (Decimal Inch) 0.6250
Inscribed Circle (Inch) 5/8
Insert Material Carbide
Insert Shape S – Square
Chip Breaker Operation Medium Machining; Roughing
Grade Characteristics Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance Negative
Number Of Cutting Edges 8
Insert Shape Code S
Hole Diameter (Decimal Inch) 0.2500
Hole Diameter (Mm) ( – 0 Decimals) 6.35
Maximum Depth of Cut (Decimal Inch) 0.1575
Insert Holding Method Pin; Clamp
Width (Inch) 5/8
Clearance Code N
Tolerance Code M
Coating Process PVD
Length Range (Decimal Inch) 0.6000 – 0.6500
Rake Negative
Insert Length (Decimal Inch) 0.6250
Insert Length (Inch) 5/8
Primary Workpiece Material Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M
Iso Code SNMG543HRM
Standards ISO; ANSI
Manufacturers Catalog Number 6741682
Material Grade S20; S10; M20; M10
Coating Classification PVD
Chip Breaker HRM
Rake Angle -15
Cutting Edge Style Honed; Chamfered
Industry Standard Number SNMG 543 HRM
Width (Decimal Inch – 4 Decimals) 0.6250
Multi-Use Tool Yes
Full Radius No
Multi-Use Application Facing; Turning; Boring
ANSI Size Code 543
ISO Size Code 150612
UNSPSC Code 23242105
Insert Size Code 543
(Description).

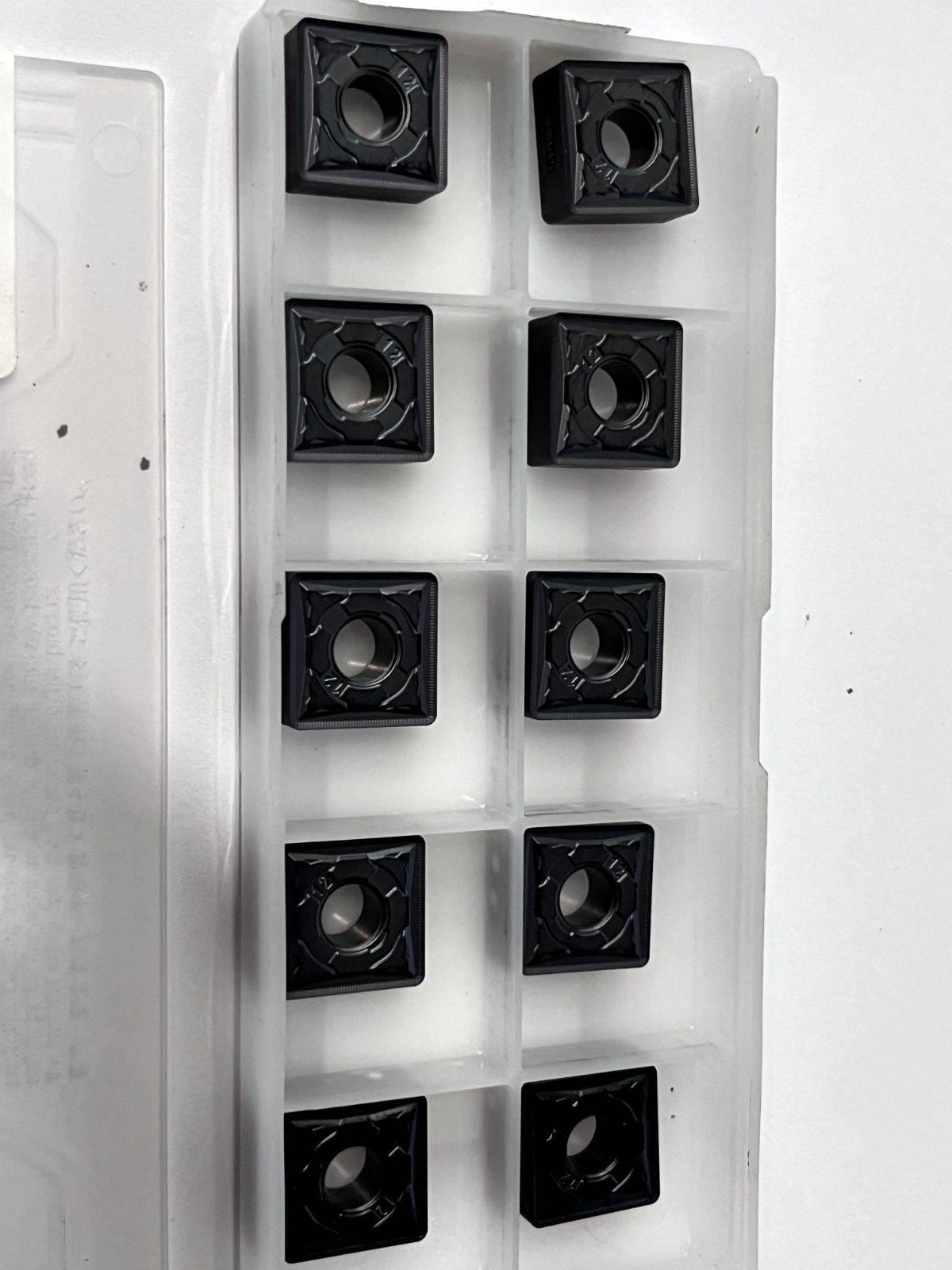

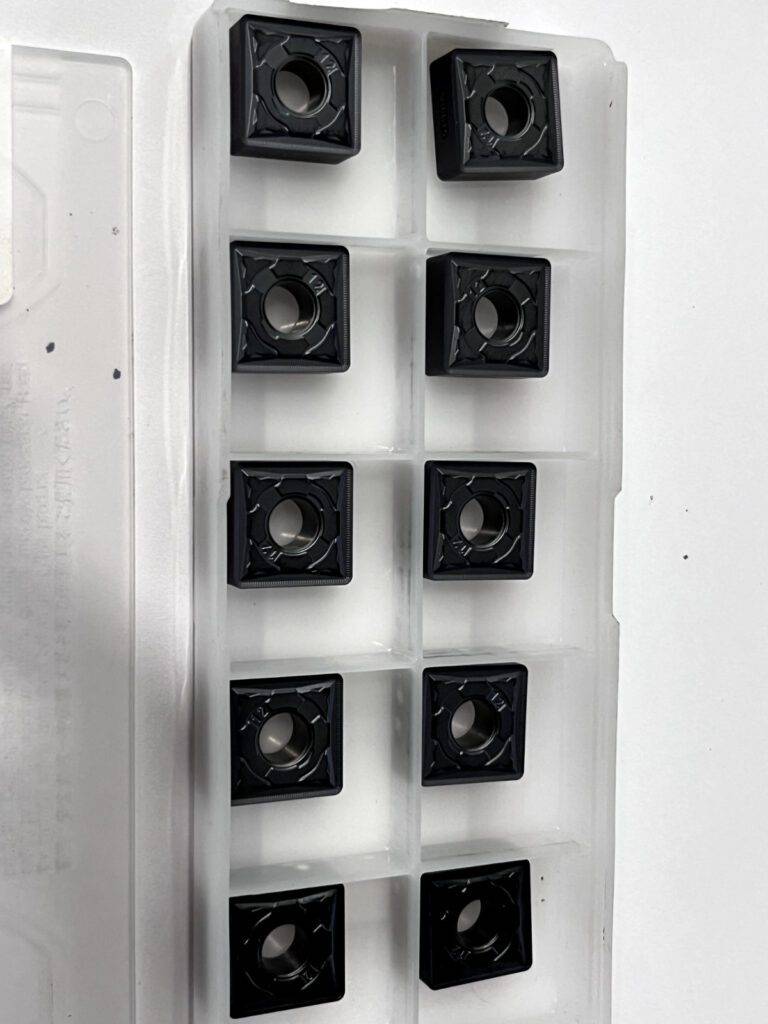

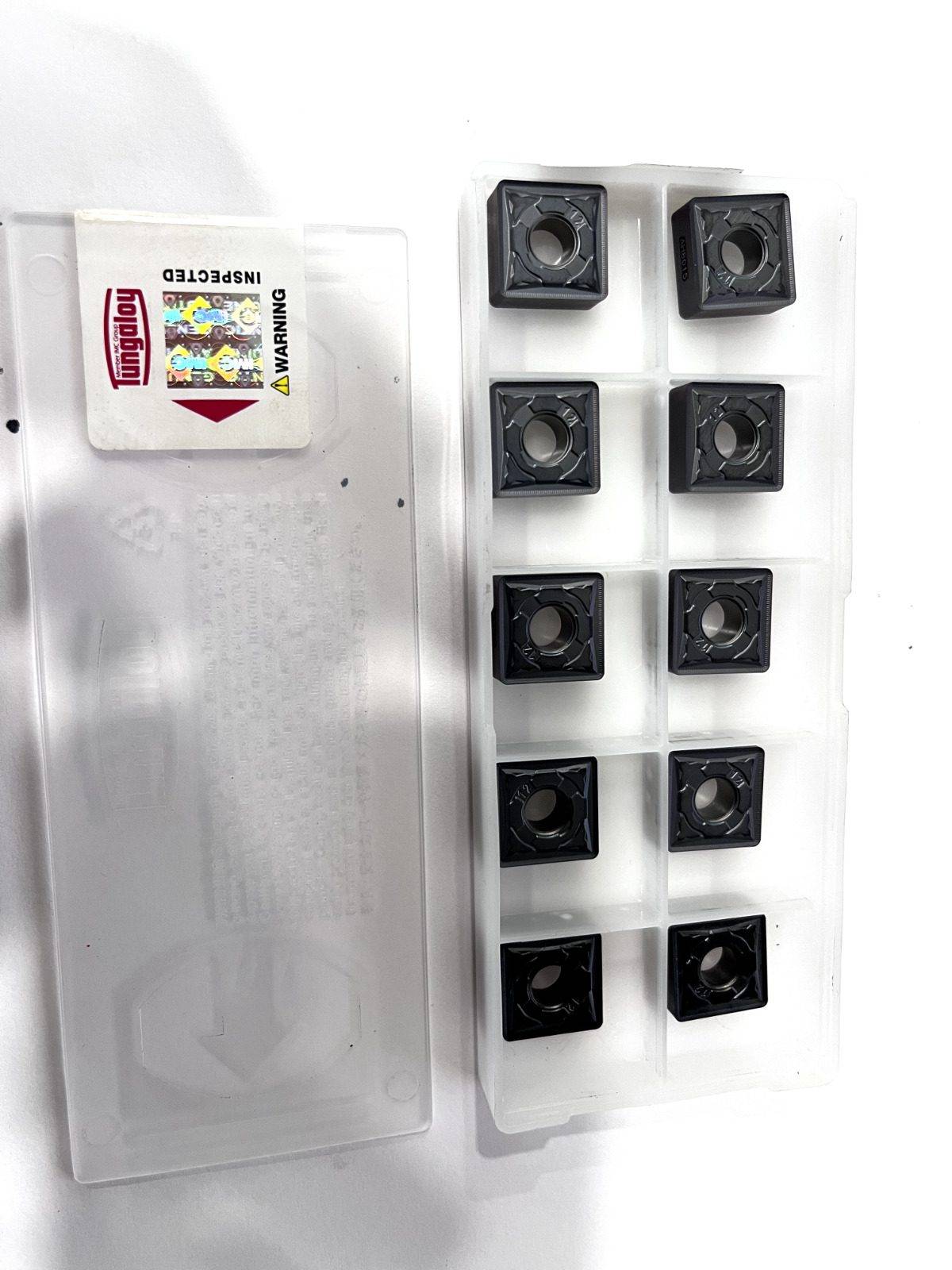

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date Nov 05 24
Lister#CM 14315
LocMeep 5
BRAND: Tungaloy
INSERT MATERIAL: Carbide
MPN: does not apply
INSERT TYPE: Turning Insert
