Telemecanique
MSRP: $90.00
Model: XUB2BPANM12R
Description:
Sensor Type: Through-beam
Output Circuit Type: PNP
Maximum Nominal Sensing Distance (Meters): 15.00
Connector Type: 4-pin M12
Voltage: 12-24 VDC
Frequency Rating (Hz): 500
NEMA Rating: 4X
Ingress Protection Rating: IP65; IP67; IP69K
Housing Material: Nickel Plated Brass
Resistance Features: Shock Resistant; Vibration Resistant
Overall Length: 60 mm
Overall Length: 2.3600″
Overall Width/Diameter: 18 mm
Overall Width/Diameter: 0.7100″
Shape: Cylindrical
Maximum Operating Temperature ( F): 131
Minimum Operating Temperature ( F): -13
Standards Met: CE Listed; CSA Certified; DIN 40050; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL Listed

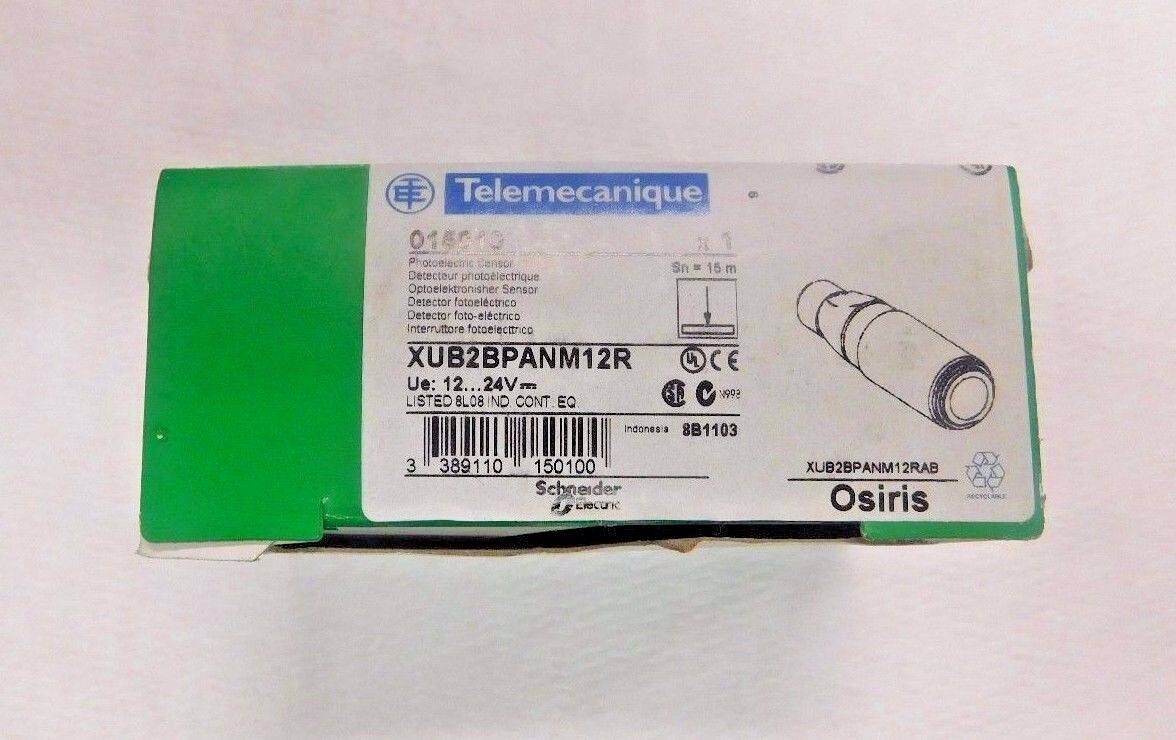

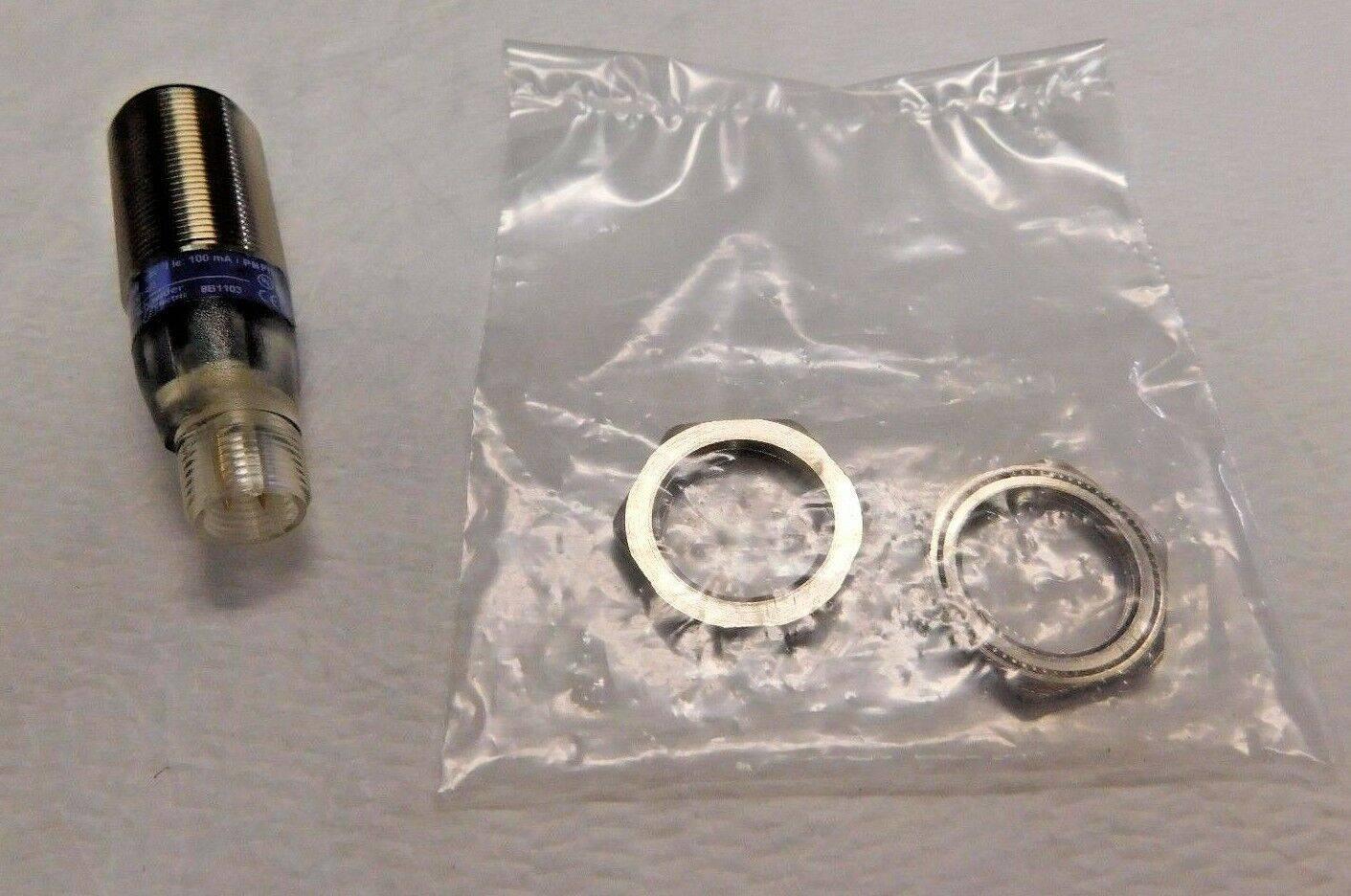

This listing is for One Through Beam Photoelectric Sensor that is in the picture as well as described. Please ask any questions prior to buying!
