Description
Telemecanique
MSRP: $80.00
Model: XS506B1NBM8
Description:
Sensor Type: Inductive
Body Shape: Cylinder Shielded
Sensor Operation Output Mode: NC
Output Type: NPN
Connector Type: 3-pin M8
Number of Wires: 3
Detection Distance: 1.50 mm
Detection Distance: 0.0600″
Sensor Head Size: M6.5
Ingress Protection Rating: IP67
Maximum Load Capacity (mA): 200
Maximum Voltage: 12-24 VDC
Response Frequency (Hz): 5000
Thread Size: M6x1
Housing Material: Stainless Steel
Resistance Features: Shock Resistant; Vibration Resistant
Overall Length: 42 mm
Overall Length: 1.6500″
Maximum Operating Temperature ( F): 158
Minimum Operating Temperature ( F): -13
Standards Met: CE Listed; CSA Certified; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL Listed

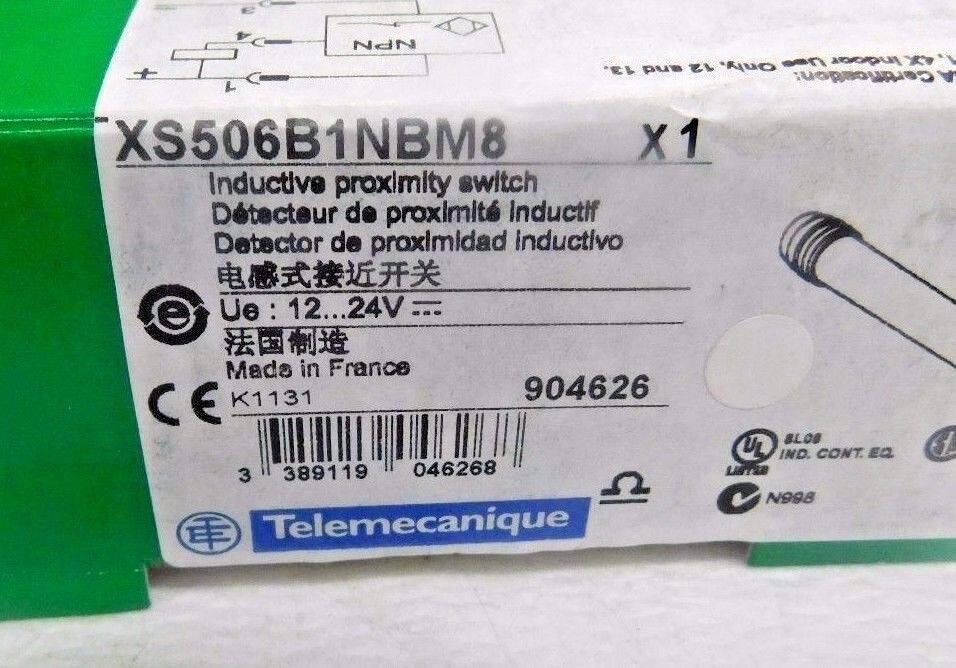

This listing is for One Inductive Proximity Sensor that is in the picture as well as described. Please ask any questions prior to buying!
Tina March 05 2021
TB 8285
Cab Phil Bin 2
COUNTRY/REGION OF MANUFACTURE: France
MPN: Does Not Apply
MODEL: XS506B1NBM8
MSRP: 80.00
LOCATION: TB8285CabPhilBin2
BRAND: Telemecanique
