Description
Telemecanique
Sensor
MSRP: $80.00

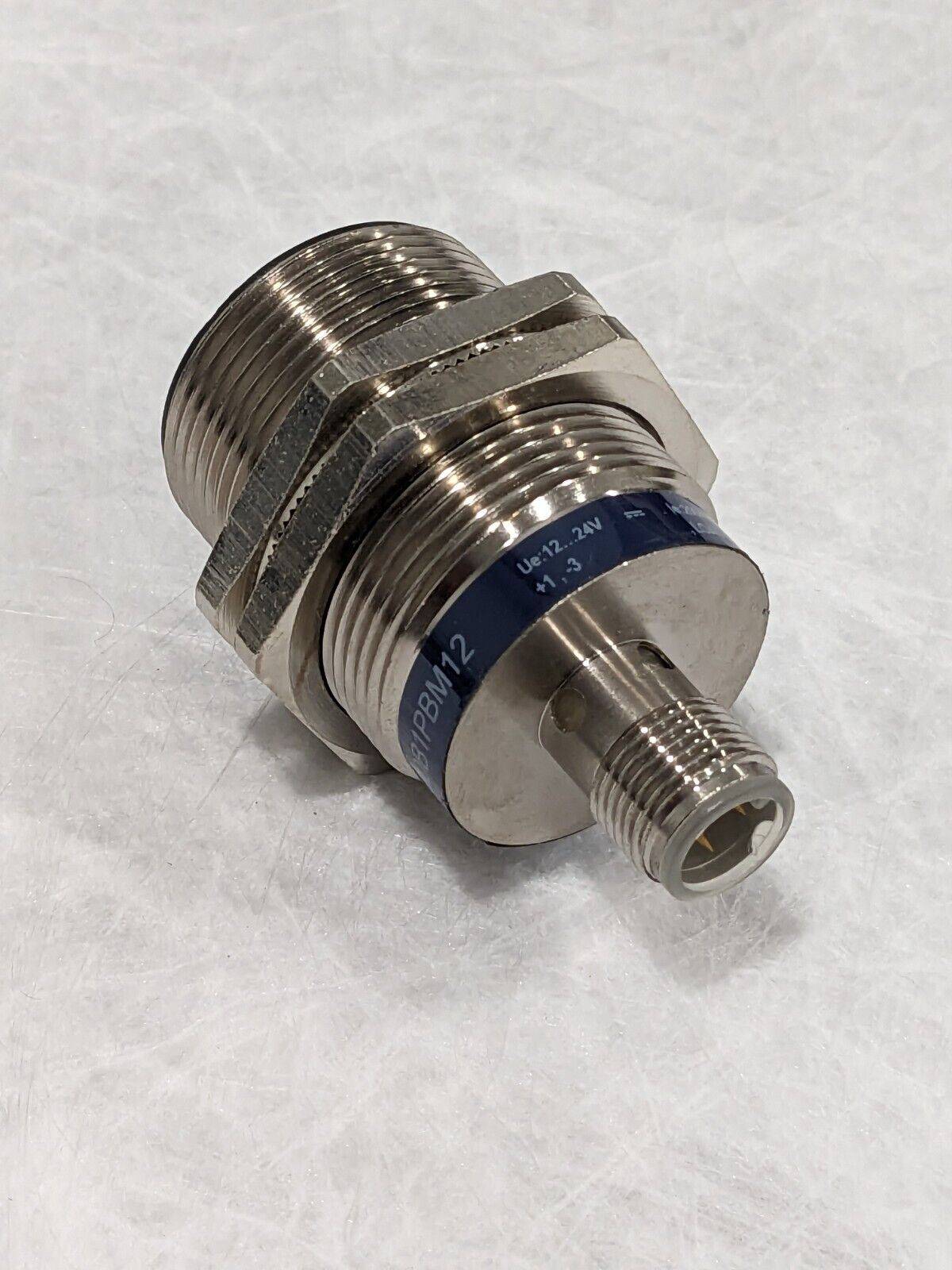

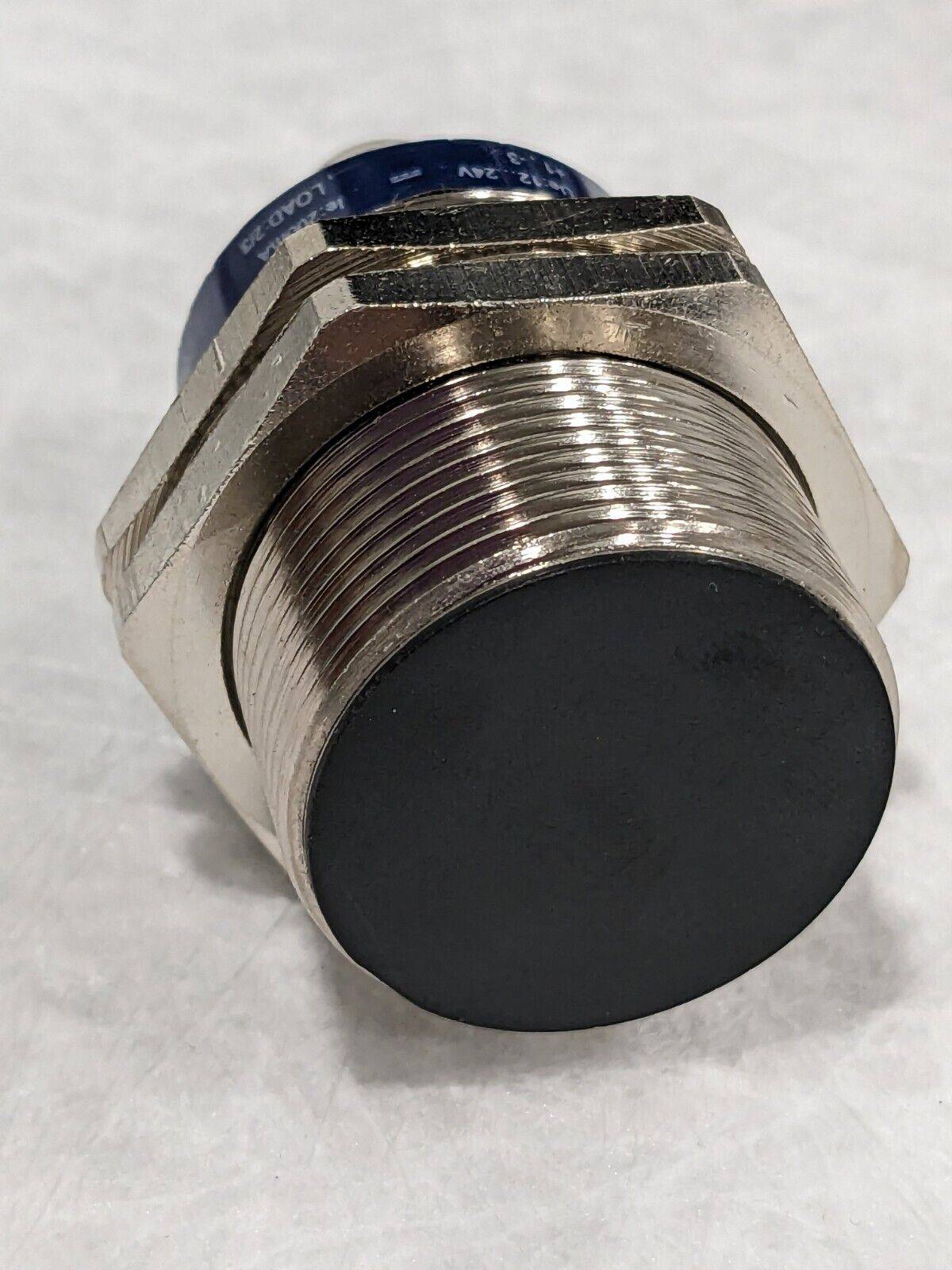

- Sensor Type Inductive
- Body Shape Cylinder Shielded
- Sensor Operation Output Mode NC
- Output Type PNP

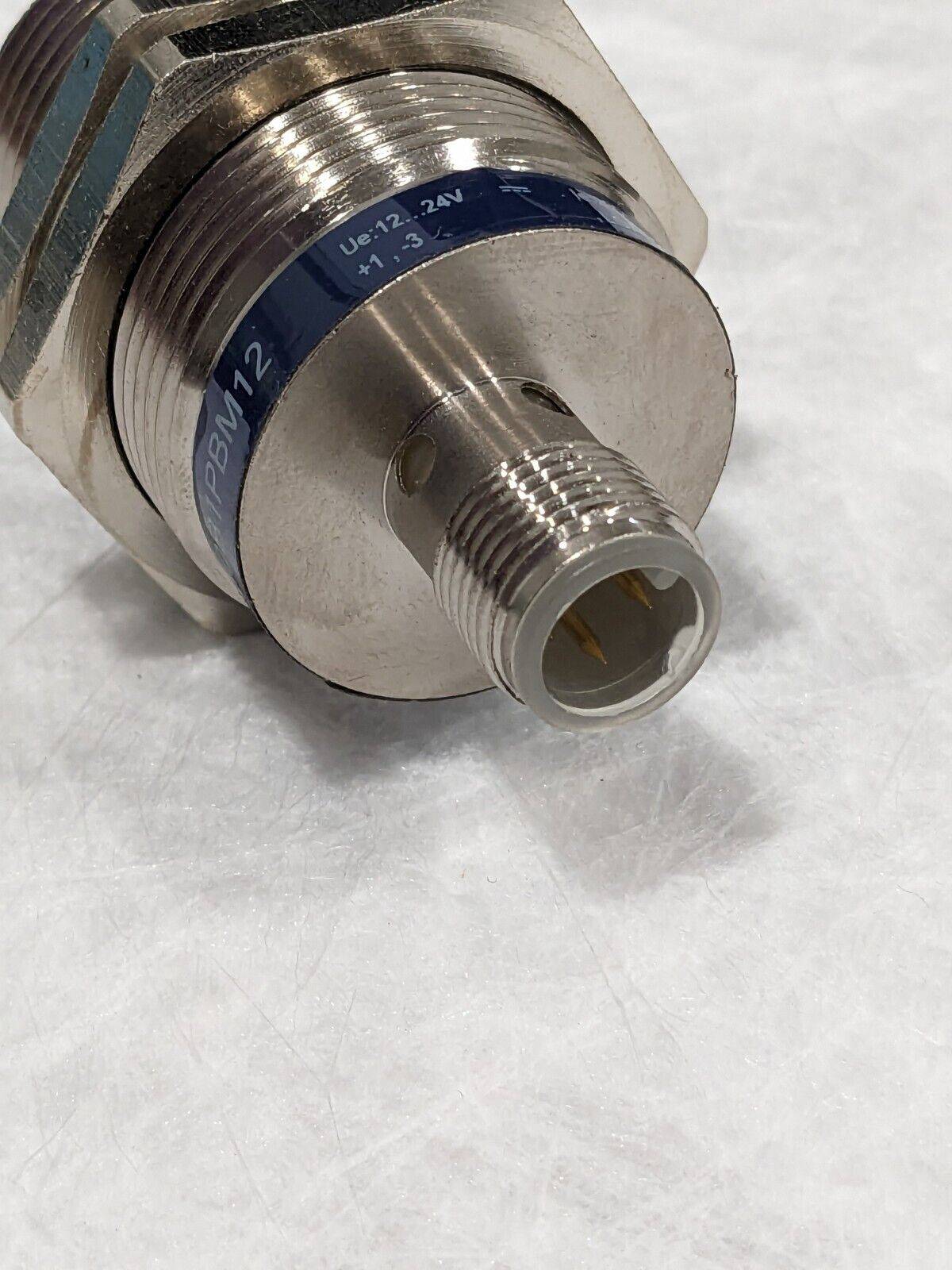

- Connector Type Four-Pin; M12
- Detection Distance (mm) 10.00
- Detection Distance (Decimal Inch) 0.3900

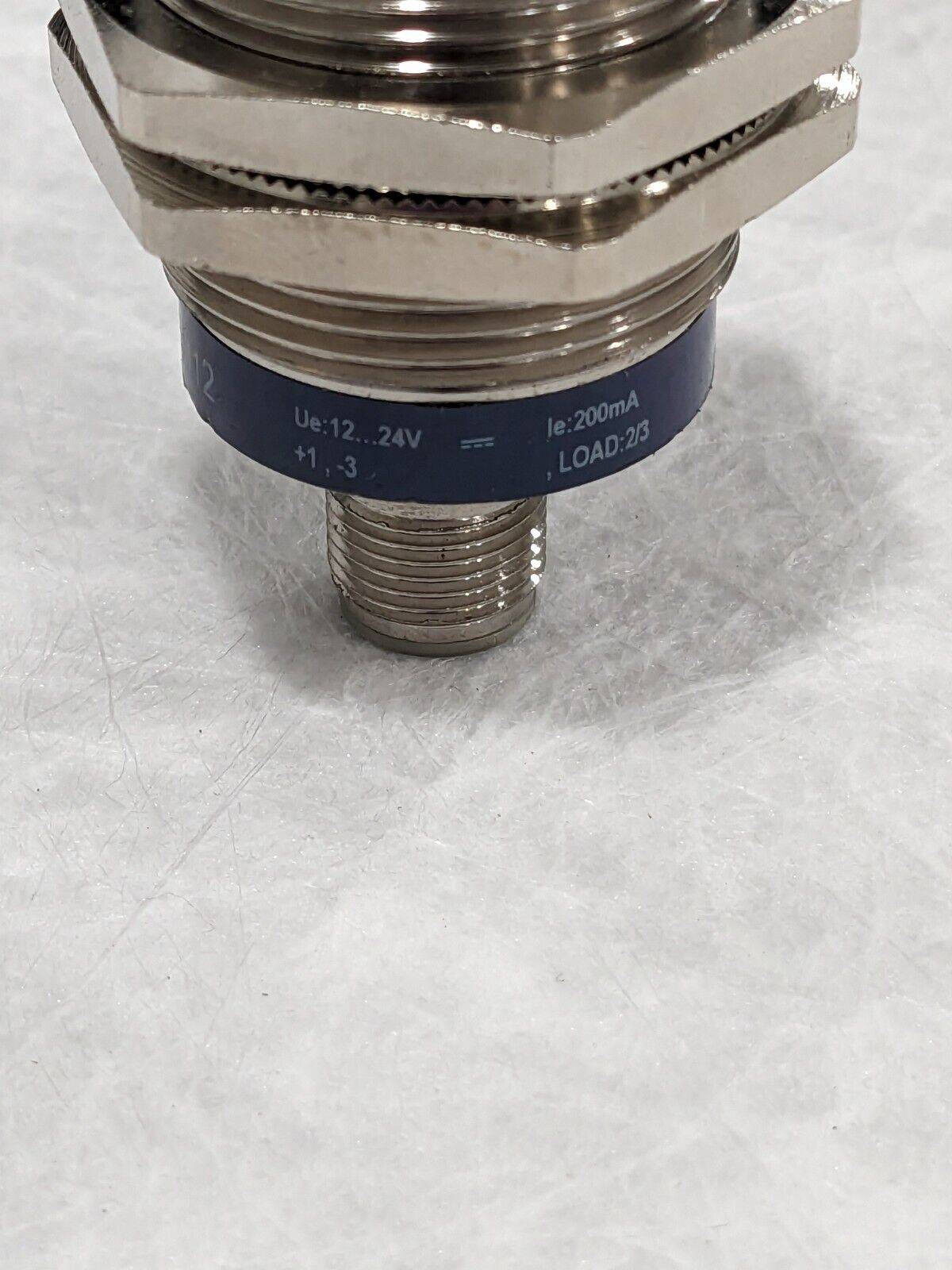

- Maximum Voltage 12 – 24V DC
- Overall Length (mm) 55.00
- Overall Width (mm) 30.00
- Overall Width (Decimal Inch – 4 Decimals) 1.1800
- Sensor Head Size M30
- Ingress Protection Rating IP69K; IP67
- Maximum Load Capacity (mA) 200
- Overall Width/Diameter (mm) 30
- Thread Size M30x1.5
- Housing Material Brass
- Resistance Features Shock-Resistant; Vibration-Resistant
- Minimum Operating Temperature -13 F
- Standards UL Listed; CE Listed; IEC 60068-2-6; IEC 60529; CSA Certified; RoHS Compliant; IEC 60068-2-27; DIN 40050
- Number Of Wires 3
- Response Frequency (Hz) 1000
- UNSPSC Code 39122230
This item appears to be new and in good condition. Does NOT come in the original package. SOLD AS IS.
Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
May 20 2024
TB 16731
Cab N Bin 13
BRAND: Telemecanique
MSRP: $80.00
TYPE: Inductive Sensor
SHIELD: Shielded

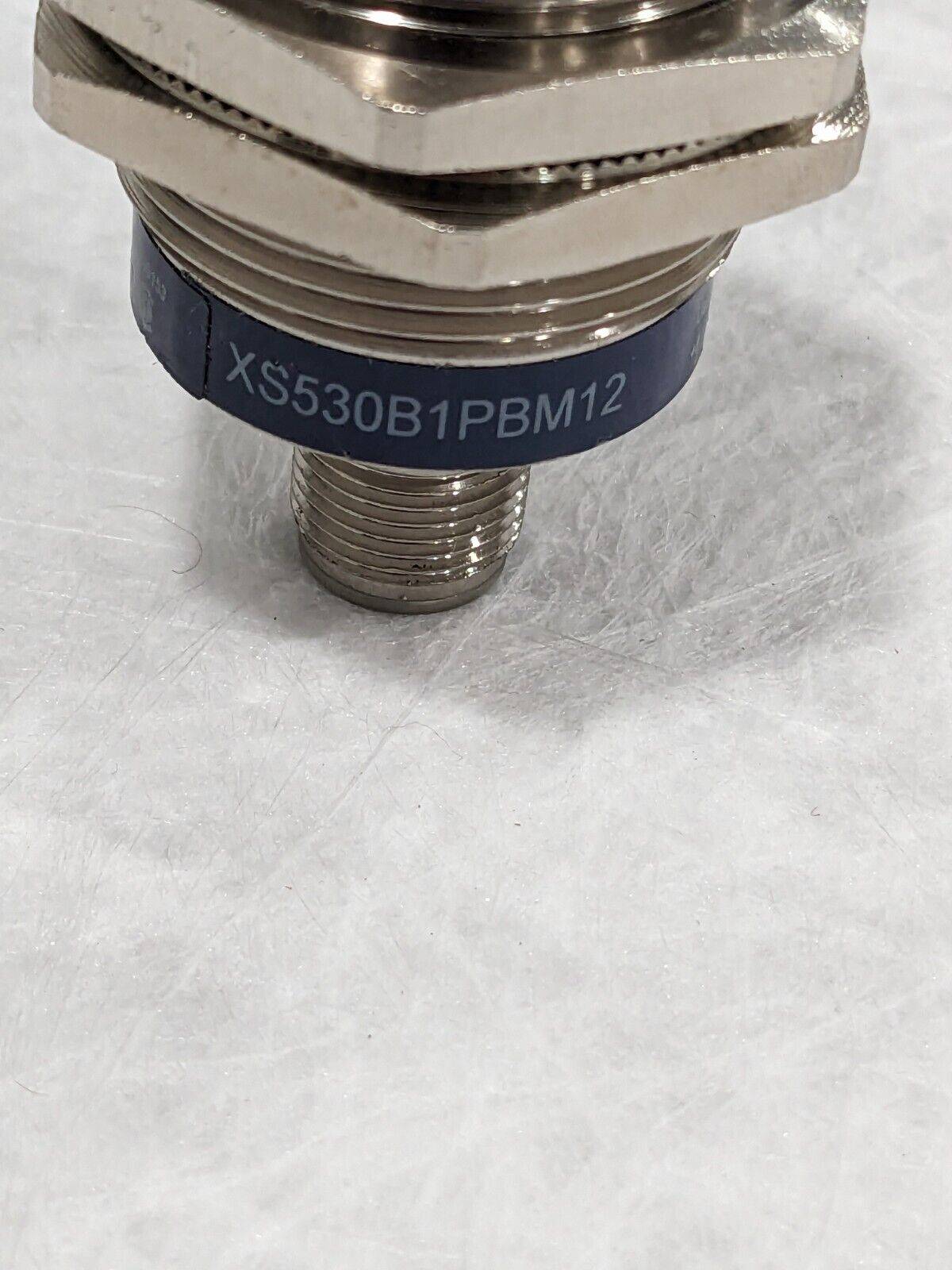

MODEL: XS530B1PBM12
MPN: Does Not Apply
COUNTRY/REGION OF MANUFACTURE: Unknown
LOCATION: TB16731CabNBin13
