Description
Telemecanique
MSRP: $90.00
Model: XUB5BNBNM12
Description:
Sensor Type: Diffused
Output Circuit Type: NPN
Maximum Nominal Sensing Distance (Meters): 0.60
Connector Type: 4-pin M12
Voltage: 12-24 VDC
Frequency Rating (Hz): 500
NEMA Rating: 4X
Ingress Protection Rating: IP65; IP67; IP69K
Housing Material: Nickel Plated Brass
Resistance Features: Shock Resistant; Vibration Resistant
Overall Length: 76 mm
Overall Length: 2.9900″
Overall Width/Diameter: 18 mm
Overall Width/Diameter: 0.7100″
Shape: Cylindrical
Maximum Operating Temperature ( F): 131
Minimum Operating Temperature ( F): -13
Standards Met: CE Listed; CSA Certified; DIN 40050; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL Listed

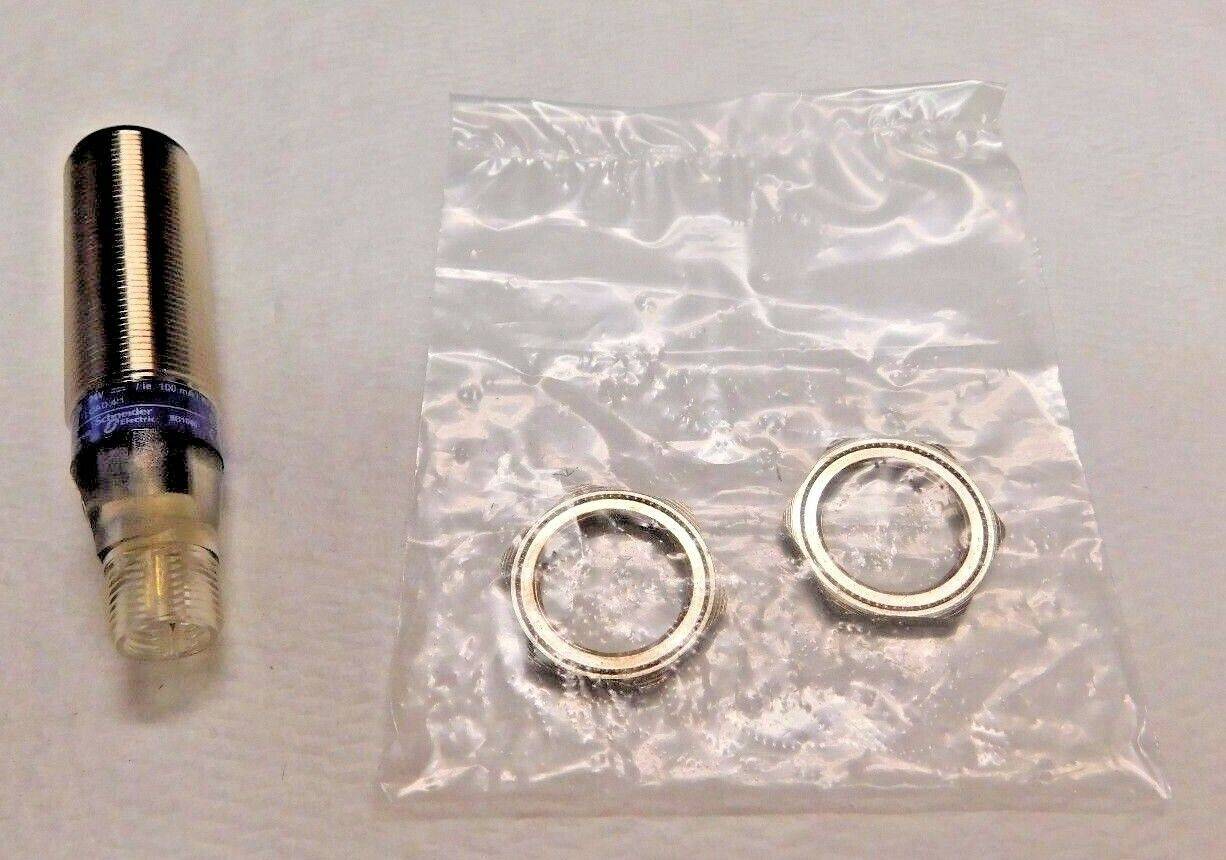

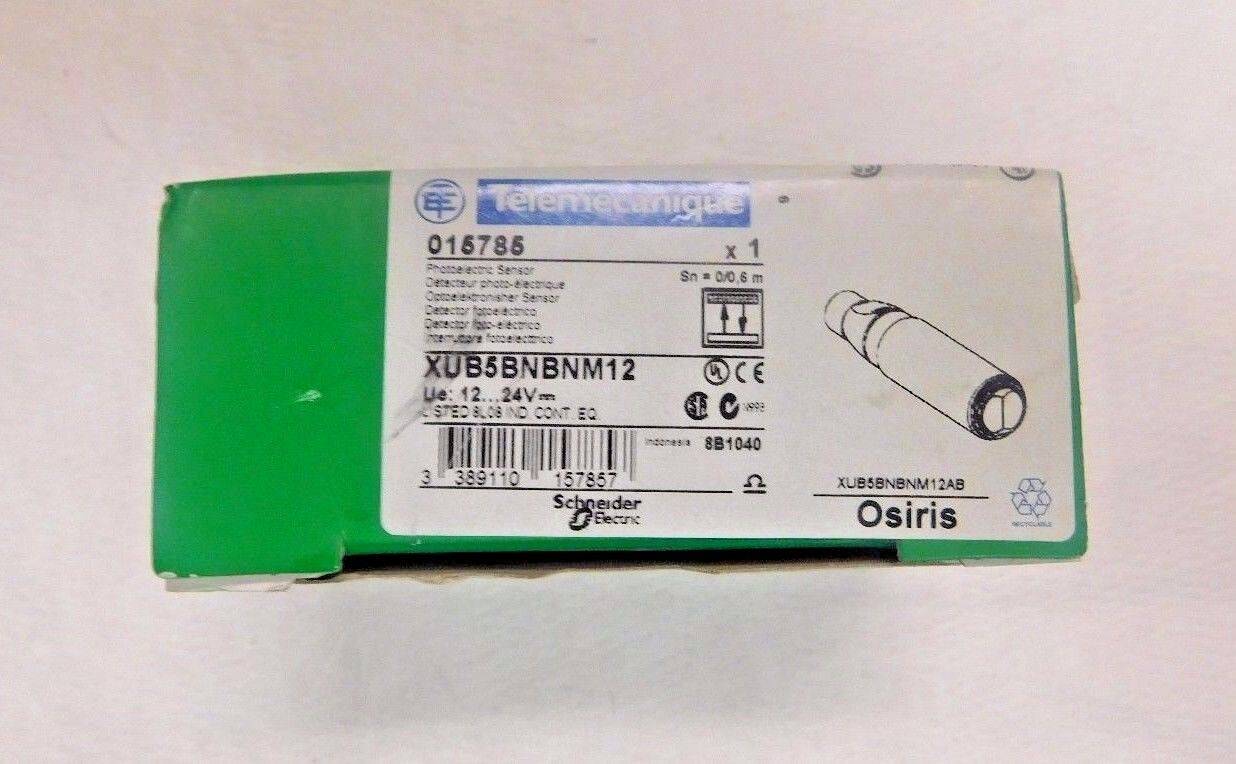

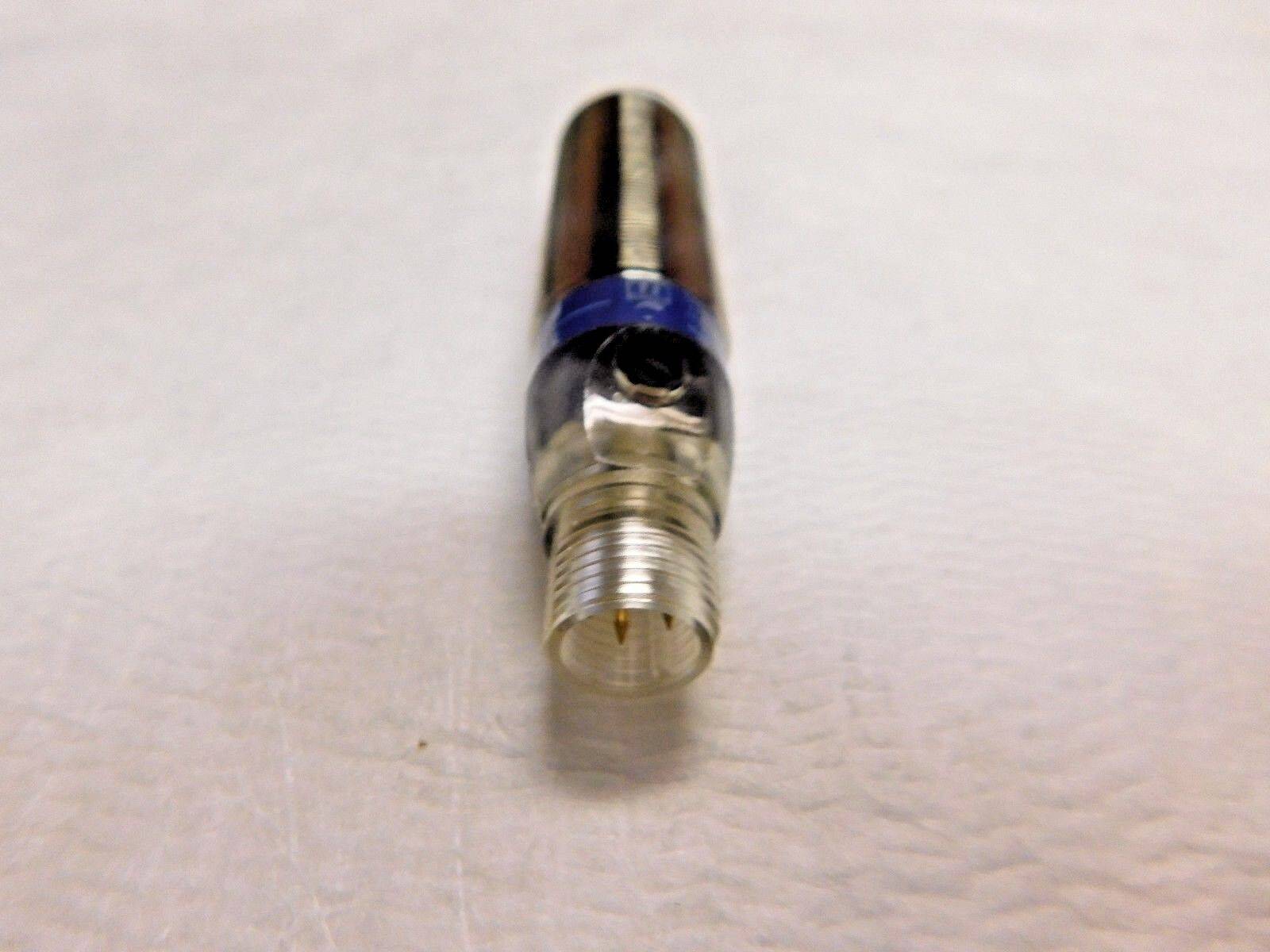

This listing is for One Diffused Photoelectric Sensor that is in the picture as well as described. Please ask any questions prior to buying!
Tina March 05 2021
TB 8283
Cab Phil Bin 4
COUNTRY/REGION OF MANUFACTURE: Indonesia
MODEL: XUB5BNBNM12
MSRP: 90.00
LOCATION: TB8283CabPhilBin4
MPN: Does Not Apply
BRAND: Telemecanique
