Description
SwiftCarb Superbee Carbide Milling Inserts EM15220 ET520 Grade Qty. 10 #07790884
MSRP: $270
- Insert Style EM
- Insert Size 15
- Insert Material Solid Carbide
- Insert Shape Parallelogram
- Manufacturer Grade ET520
- Number Of Cutting Edges 2
- Thickness (Decimal Inch – 4 Decimals) 0.1250
- Thickness (mm) 3.18
- Coating/Finish AlTiN
- Insert Size Code 15220
- Material Grade C5
- Width (Inch) 3/8
- Length (Inch) 5/8
- Thickness (Inch) 1/8
- Inscribed Circle (Inch) 3/8
- Inscribed Circle (Decimal Inch) 0.3750
- Inscribed Circle (mm) 9.53
- Thickness Range (Decimal Inch) 0.1250 to 0.1500
- Length Range (Decimal Inch) 0.6000 to 0.6500
- Insert Hand Right Hand
- Series EM
- Coating Process PVD
- Rake Positive
- Primary Workpiece Material Stainless Steel; Steel
- Primary Workpiece Material Code P; M
- Ansi Code EM15220ET520
- Convex Radius (Decimal Inch) 0.2200
- Cutting Edge Style Honed
- Manufacturers Catalog Number EM15220
- Cutter Series Compatibility BB; BC; BD; BE; BBD; CMS; CM; CB
- Chip Breaker None
- Material Application Stainless Steel; Steel
- UNSPSC Code 23291601
- Insert Holding Method Screw
- Coating Classification PVD
- Single or Double Sided Insert Double
- Length (mm) 15.88
- Width (Decimal Inch – 4 Decimals) 0.3750
- Width (mm – 2 Decimals) 9.53
- Multi-Use Tool Yes
- Length (Decimal Inch – 4 Decimals) 0.6250
- System Of Measurement Metric
(Description).

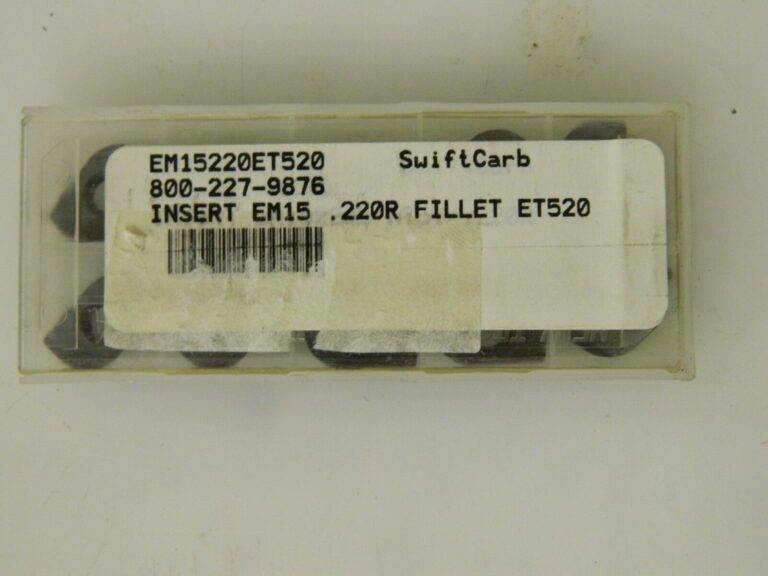

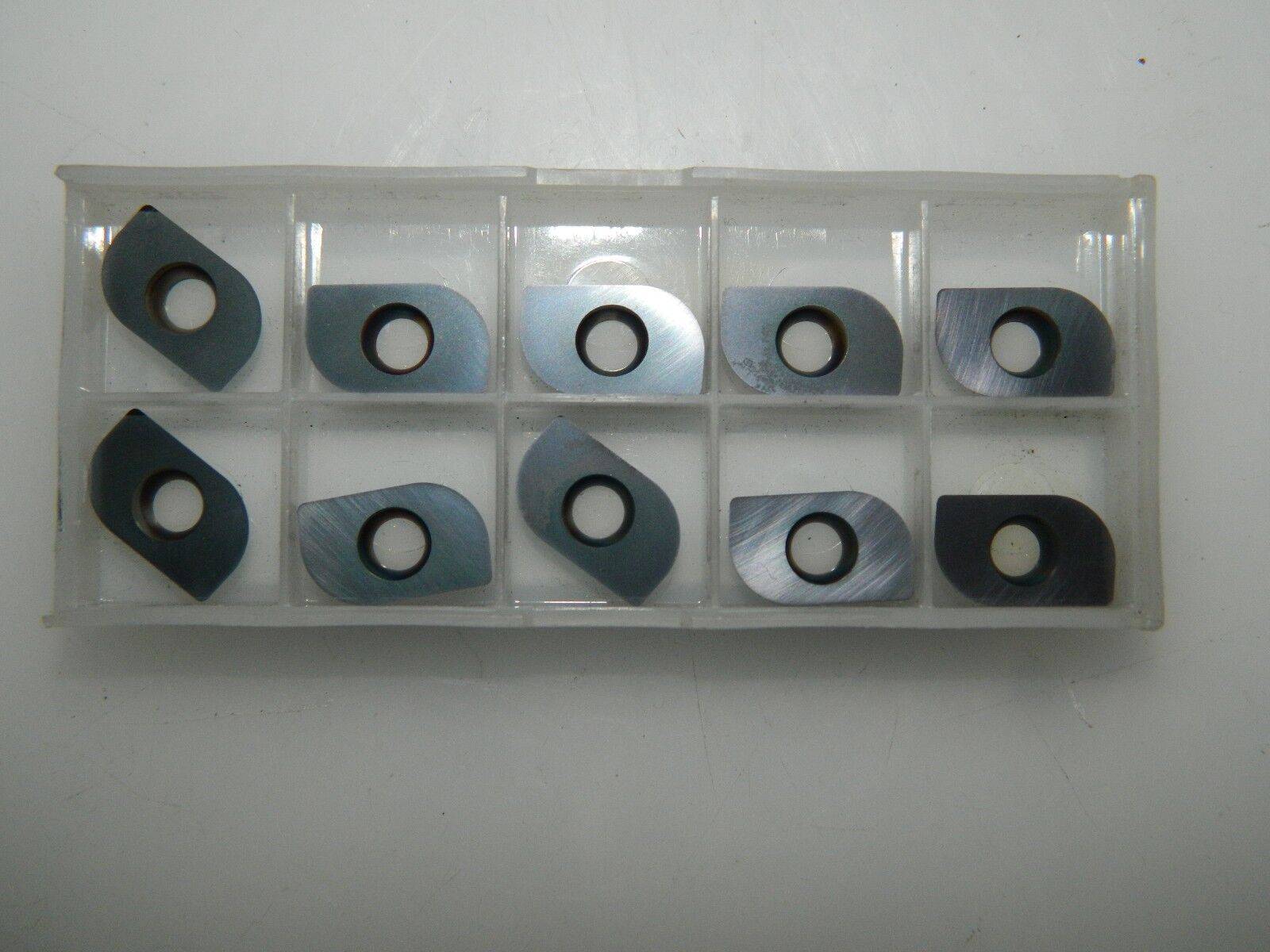

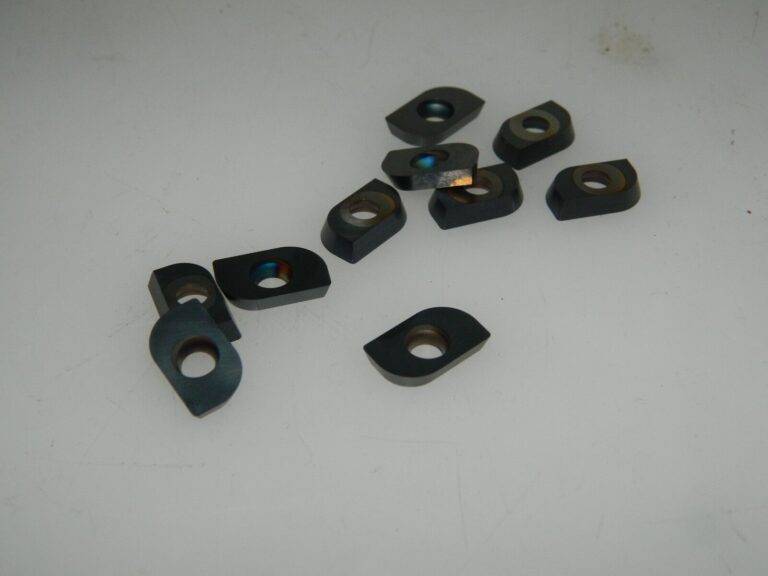

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
sep 11 24
HS6691
ozzy26
BRAND: SwiftCarb
UNIT TYPE: Unit
INSERT MATERIAL: Carbide
MODEL: 07790884
MPN: Does Not Apply
COUNTRY/REGION OF MANUFACTURE: United States
INSERT TYPE: Milling Insert
UNIT QUANTITY: na
