Description
SUMITOMO Turning Insert 3pc : CNMG643EMU AC830P, Carbide 19RBAFN
MSRP: $75
- ANSI Insert Code CNMG643
- ISO Insert Code CNMG190612
- Relief Angle 0
- Insert Style CNMG
- Corner Radius (Inch) 3/64
- Corner Radius (Decimal Inch) 0.0469
- Included Angle 80
- Manufacturer Grade AC830P
- Coating/Finish Coated
- Insert Hand Neutral
- Insert Thickness (Inch) 1/4
- Insert Thickness (Decimal Inch) 0.2500
- Series CN
- Inscribed Circle (Decimal Inch) 0.7500
- Inscribed Circle (Inch) 3/4
- Inscribed Circle (mm) 19.05
- Insert Material Carbide
- Insert Shape C – Diamond (Rhombic) 80-Deg
- Chip Breaker Operation Light Machining; Medium Machining
- Grade Characteristics Steel (P) – Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness to High Toughness
- Side Clearance Negative
- Insert Shape Code C
- Hole Diameter (Decimal Inch) 0.3130
- Insert Holding Method Pin; Clamp
- Clearance Code N
- Tolerance Code M
- Coating Process CVD
- Rake Negative
- Insert Length (Decimal Inch) 0.7598
- Primary Workpiece Material Code P; M
- Secondary Workpiece Material Universal
- Secondary Workpiece Material Code P; M
- Iso Code CNMG190612N-MU
- Standards ISO 13399; ANSI
- Material Grade C5; C6; C5A
- Chip Breaker EMU
- ANSI Size Code 643
- ISO Size Code 190612
- UNSPSC Code 23242105
- Insert Size Code 643
(Description).

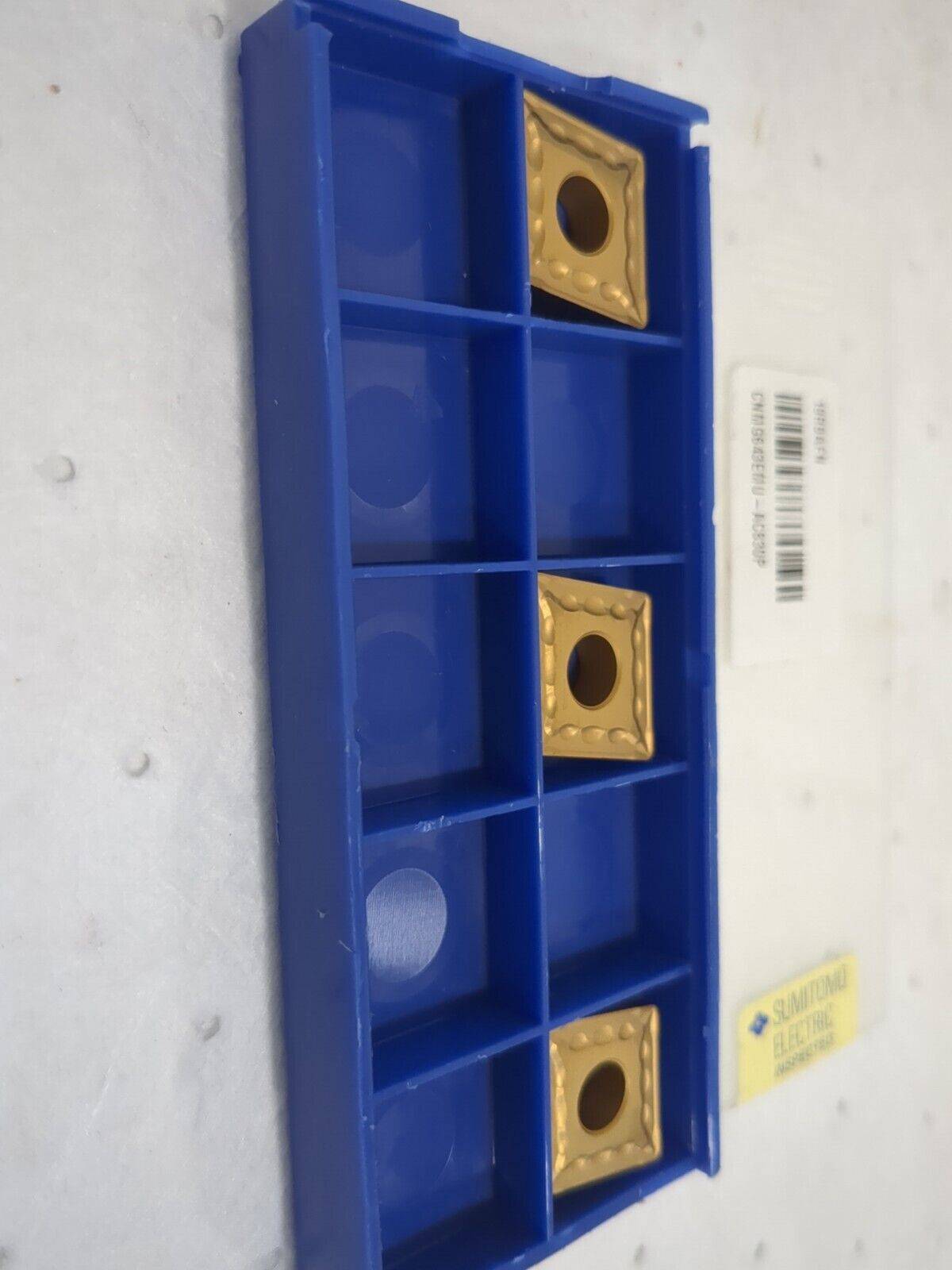

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
oct 22 24
HS7187
marley 53
BRAND: Sumitomo
INSERT MATERIAL: Carbide
MPN: 19RBAFN
INSERT TYPE: Turning Insert
