Description
Sumitomo
1 Lot of 10 Inserts
MSRP: $80.00
- Insert Style TPMT
- Insert Shape Code T
- Insert Size Code 222
- Insert Shape Triangle
- Clearance Code P
- Tolerance Code M
- Insert Material Solid Carbide
- Manufacturer Grade AC8025P
- Hole Diameter (Decimal Inch) 0.1339
- Inscribed Circle (Inch) 1/4
- Inscribed Circle (Decimal Inch) 0.2500
- Insert Holding Method Screw
- Insert Hand Neutral
- Insert Thickness (Inch) 1/8
- Insert Thickness (Decimal Inch) 0.1250
- Corner Radius (Inch) 1/32
- Corner Radius (Decimal Inch) 0.0313
- Included Angle 60.0
- Relief Angle 11
- Series TPMT
- Coating Process CVD
- Rake Positive
- Insert Length (Decimal Inch) 0.4331
- Primary Workpiece Material Steel
- Primary Workpiece Material Code P
- Ansi Code TPMT222ELB
- Iso Code TPMT110308N-LB
- Standards ANSI; ISO 13399
- Chip Breaker ELB
- Multi-Use Tool No
- Full Radius No
- Coating/Finish Absotech
These items are new and in great condition. SOLD AS IS.

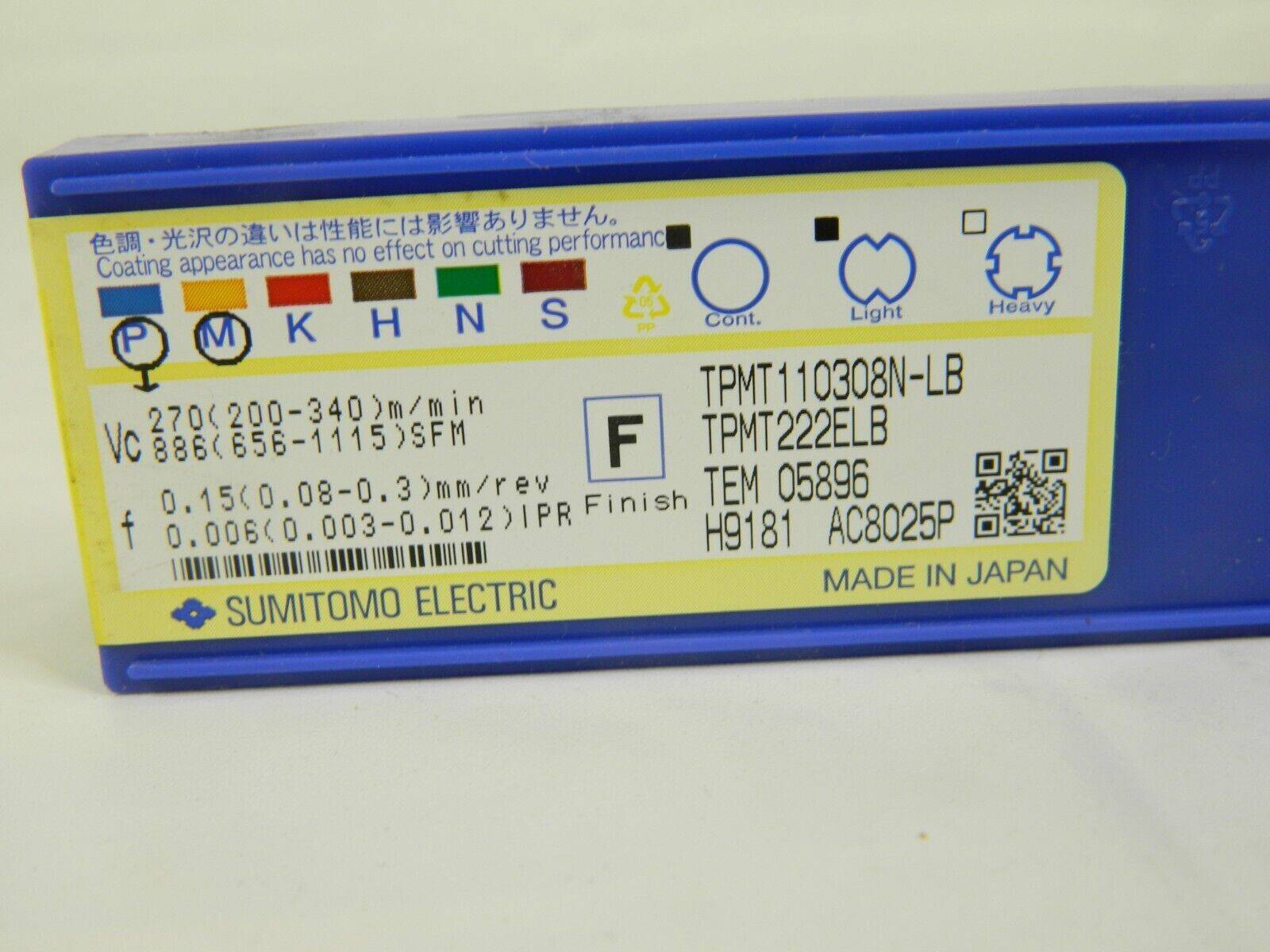

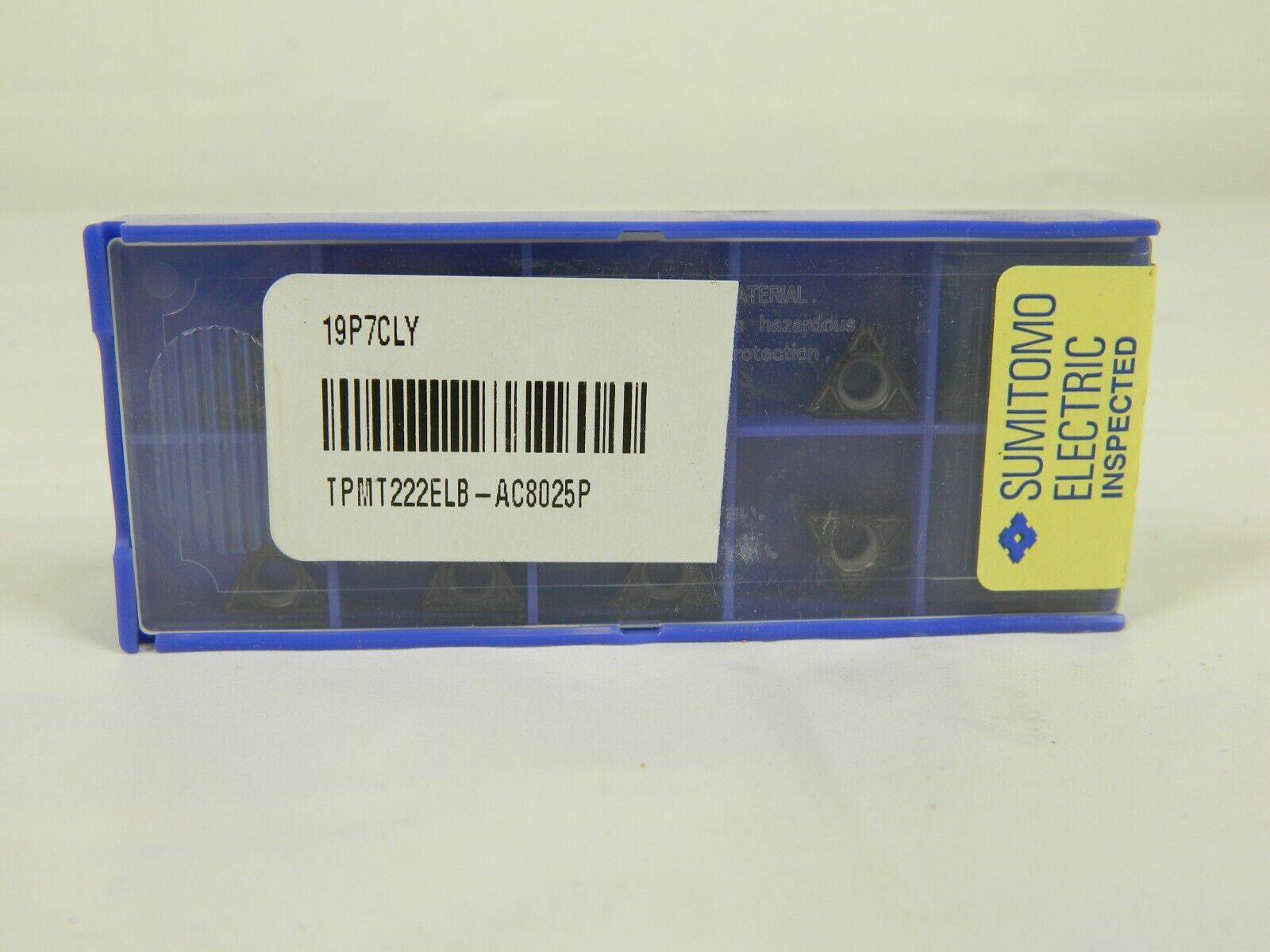

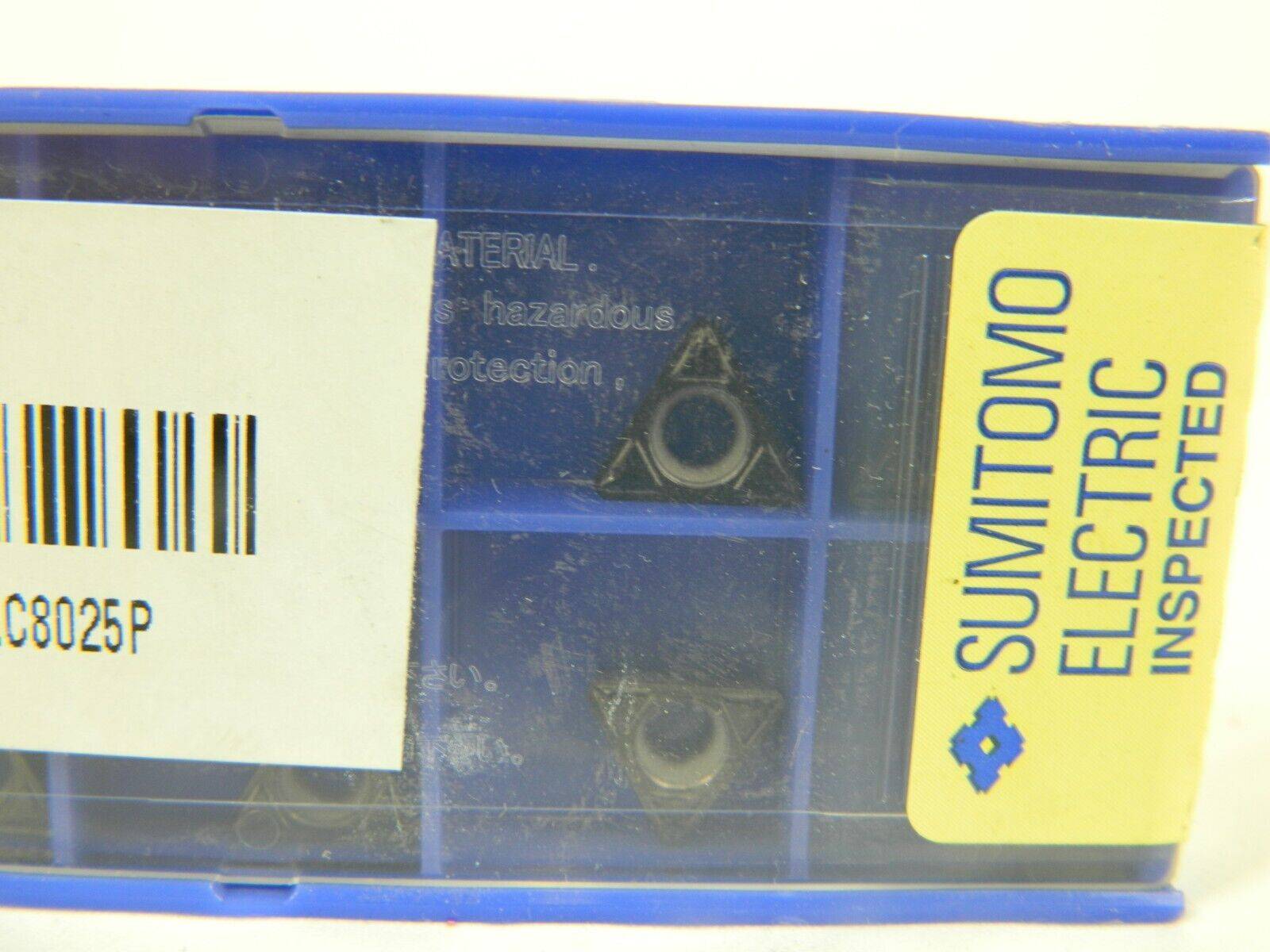

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
December 15 2022
TB 12232
Cab Blossom Bin 15
BRAND: Sumitomo
INSERT MATERIAL: Carbide
MODEL: 19P7CLY
MPN: Does Not Apply
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: Japan
LOCATION: TB12232CabBlossomBin15
