Description
Sumitomo
1 Lot of 3 Inserts
MSRP: $50.00
- Insert Style CNMG
- Insert Size Code 643
- Insert Shape Code C
- Insert Shape Diamond
- Clearance Code N
- Tolerance Code M
- Hole/Chipbreaker G
- Manufacturer’s Grade AC830P
- Inscribed Circle (Decimal Inch) 0.7500
- Inscribed Circle (mm) 19.05
- Insert Material Carbide
- Coated Coated
- Corner Radius (Inch) 3/64
- Corner Radius (Decimal Inch) 0.0469; 0.0469 in; 3/64 in
- Insert Thickness 0.25in
- Insert Length 0.7598in
- Coating Process CVD
- Primary Workpiece Material Code M; P
- Secondary Workpiece Material Code M; P
- Ansi Code CNMG643EMU
- Iso Code CNMG190612N-MU
- Standards ANSI; ISO 13399
- Hole Diameter (Decimal Inch) 0.3130
- ISO Number CNMG190612N-MU
- Rake Negative
- Relief Angle 0.0?
- Primary Workpiece Material M; P
- Secondary Workpiece Material Universal
- Insert Hand Neutral
- Chipbreaker EMU
- Thickness (mm) 0.25in
- Thickness (Decimal Inch) 0.2500; 0.25in
- Shape Diamond
- Series CN
- Insert Holding Method Pin & Clamp
These items are new and in great condition. SOLD AS IS.

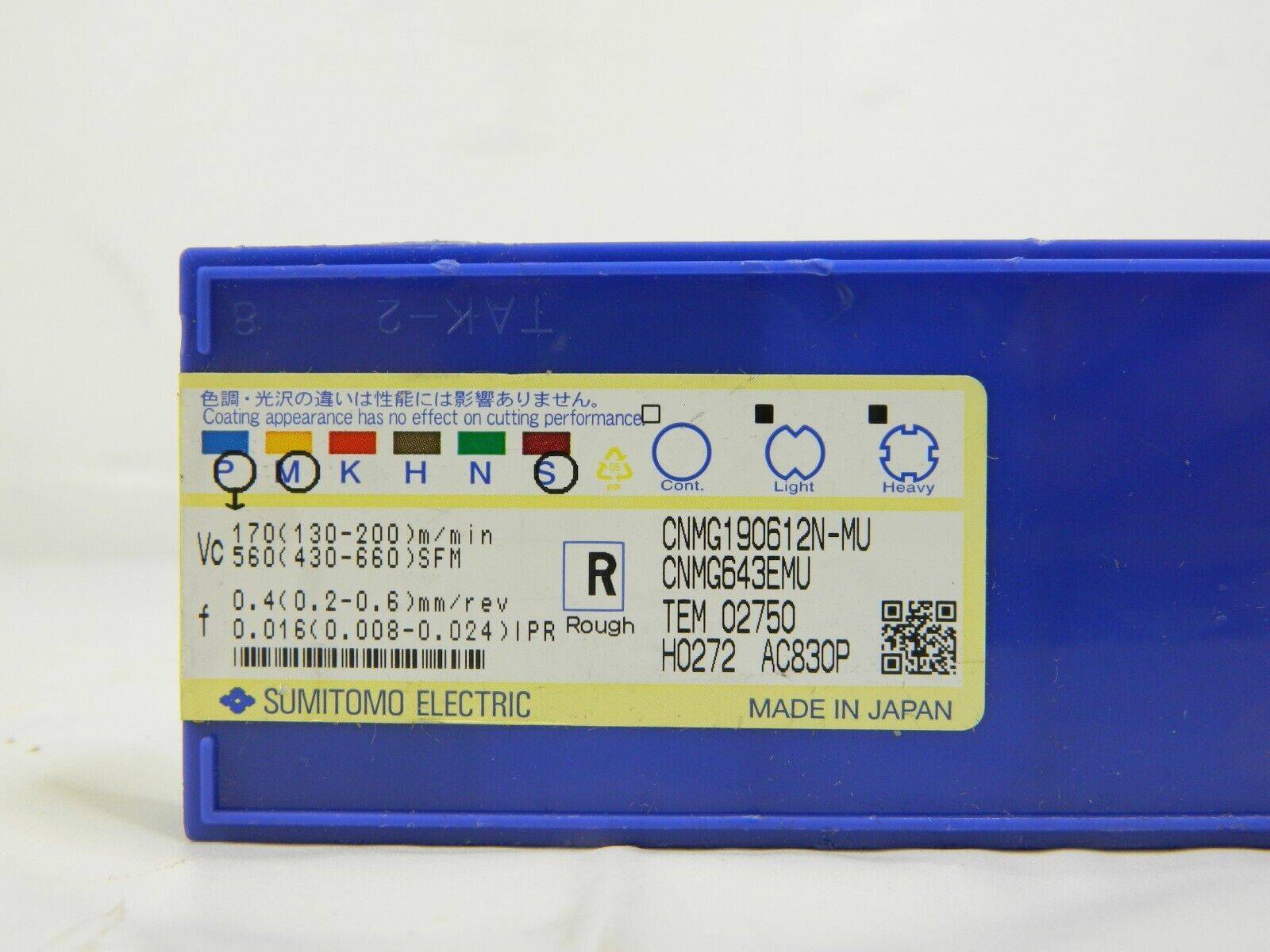

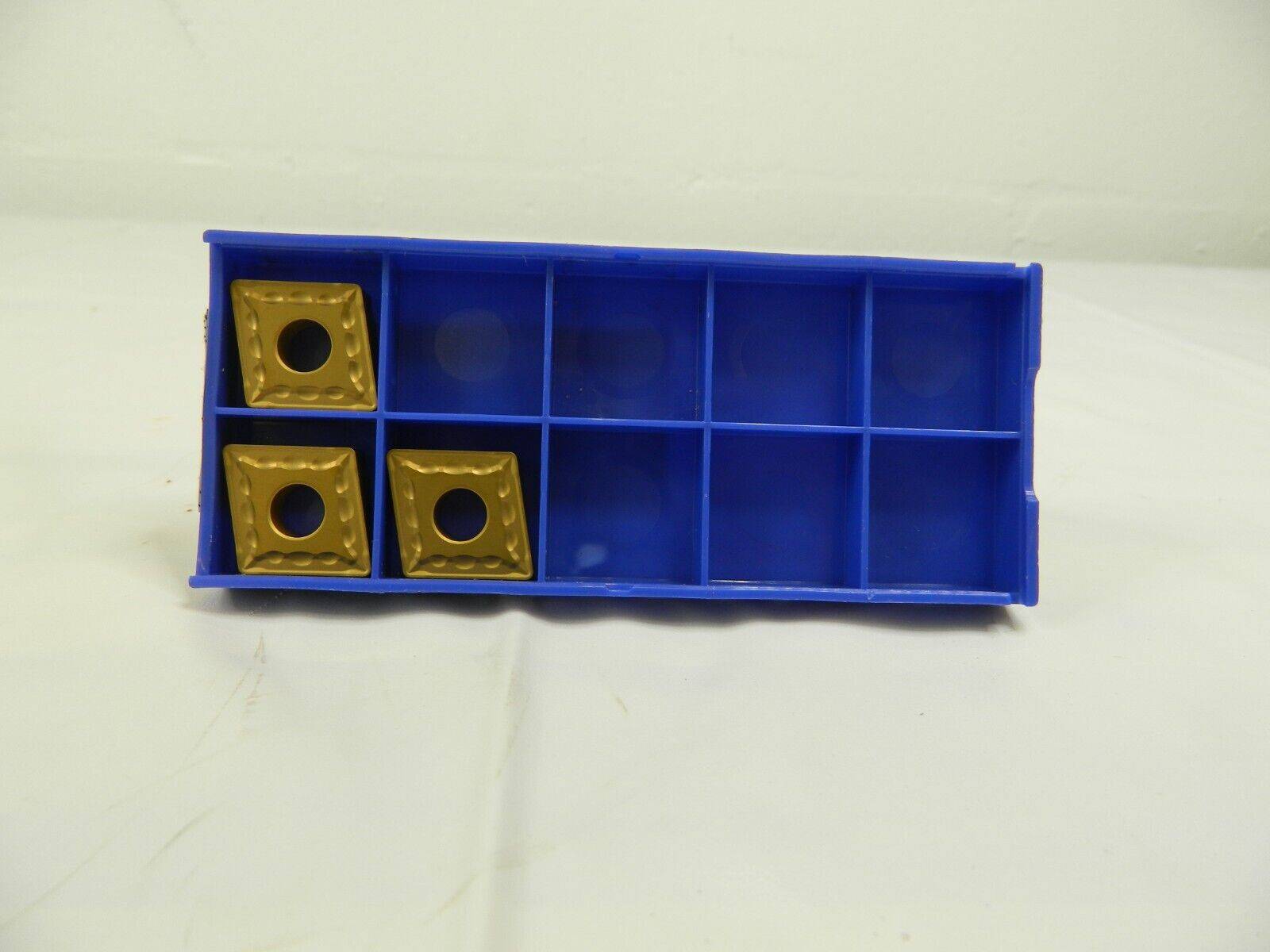

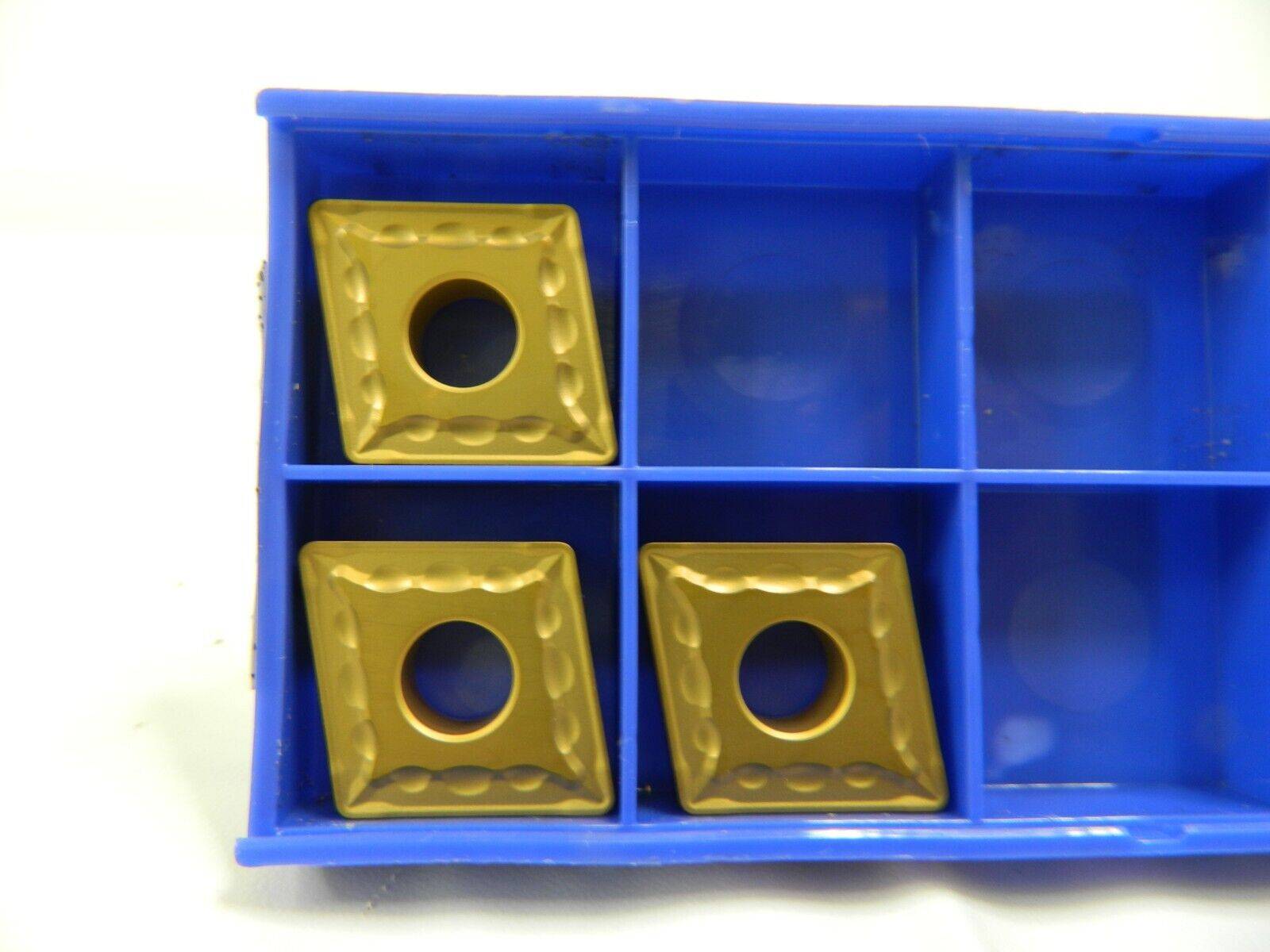

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
November 09 2022
TB 11879
Cab Crab Bin 81
BRAND: Sumitomo
MODEL: 19RBAFN
MATERIAL: Carbide
MPN: Does Not Apply
COUNTRY/REGION OF MANUFACTURE: Japan
