Description

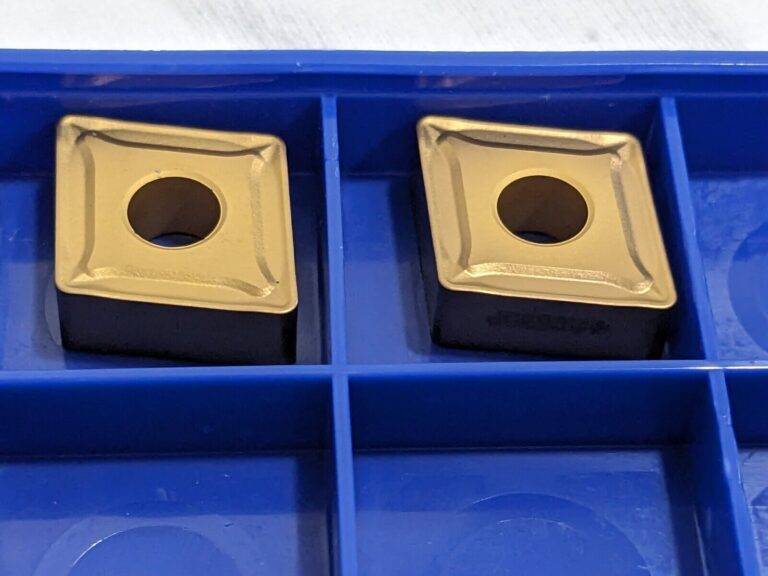

SUMITOMO 2pc Turning Insert: CNMG543EMX AC830P, Carbide 19RBANG
MSRP: $40
- Insert Style CNMG
- Insert Size Code 543
- Insert Shape Diamond
- Included Angle 80
- Inscribed Circle (Decimal Inch) 0.6250
- Corner Radius (Decimal Inch) 0.0469
- Corner Radius (mm) 0.05
- Insert Material Carbide
- Manufacturer Grade AC830P
- Coating/Finish Al2O3
- Relief Angle 0
- Insert Thickness (Decimal Inch) 0.2500
- Insert Hand Neutral
- Insert Shape Code C
- Corner Radius (Inch) 3/64
- Hole Diameter (Decimal Inch) 0.2500
- Inscribed Circle (Inch) 5/8
- Insert Holding Method Pin; Clamp
- Insert Thickness (Inch) 1/4
- Clearance Code N
- Tolerance Code M
- Series CN
- Coating Process CVD
- Rake Negative
- Insert Length (Decimal Inch) 0.6339
- Secondary Workpiece Material Universal
- Secondary Workpiece Material Code P; M
- Iso Code CNMG160612N-MX
- Standards ISO 13399; ANSI
- UNSPSC Code 23242105
- Chip Breaker EMX
- Rake Angle
(Description).

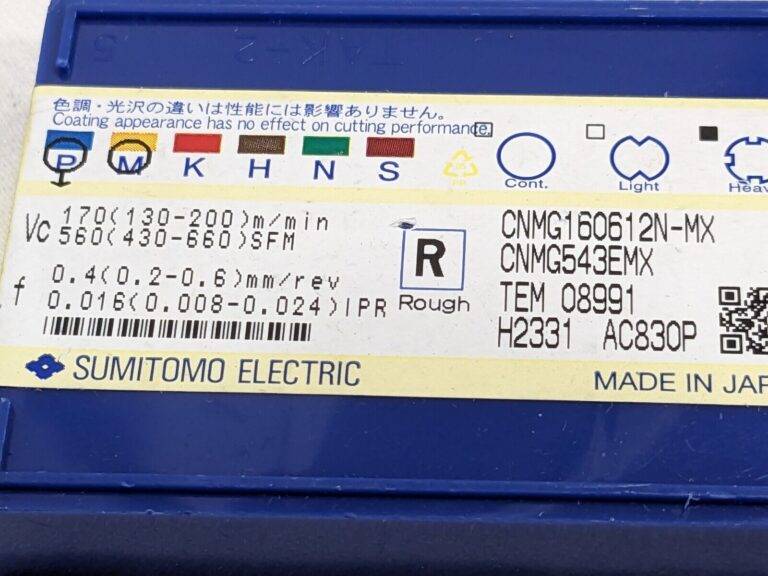

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
june 03 24
HS5555
fitzy 24
BRAND: Sumitomo
INSERT MATERIAL: Carbide
MPN: 19RBANG
INSERT TYPE: Turning Insert
