Description
Sumitomo
MSRP: $175.00
Model: U101541
Description:
Drill Bit Size (mm) 15.50
Drill Bit Size (Decimal Inch) 0.6102
Drill Point Angle 140
Drill Bit Material Carbide-Tipped
Drill Bit Finish/Coating TiAlN
Shank Type Round with Flats
Coolant Through Coolant Through
Flute Length (mm) 103.00
Flute Length (Decimal Inch) 4.0551
Overall Length (mm) 155.00
Overall Length (Decimal Inch) 6.1024
Flute Length x Diameter Ratio 5xD
Shank Diameter (mm) 20.00
Shank Diameter (Decimal Inch) 0.7874
Shank Length (mm) 50.00
Shank Length (Decimal Inch) 1.9685
Web Configuration Tapered
Drill Bit Diameter Tolerance (Decimal Inch) +0.00000 to -0.00071
Number of Flutes 2
Series/List KDS-LAV

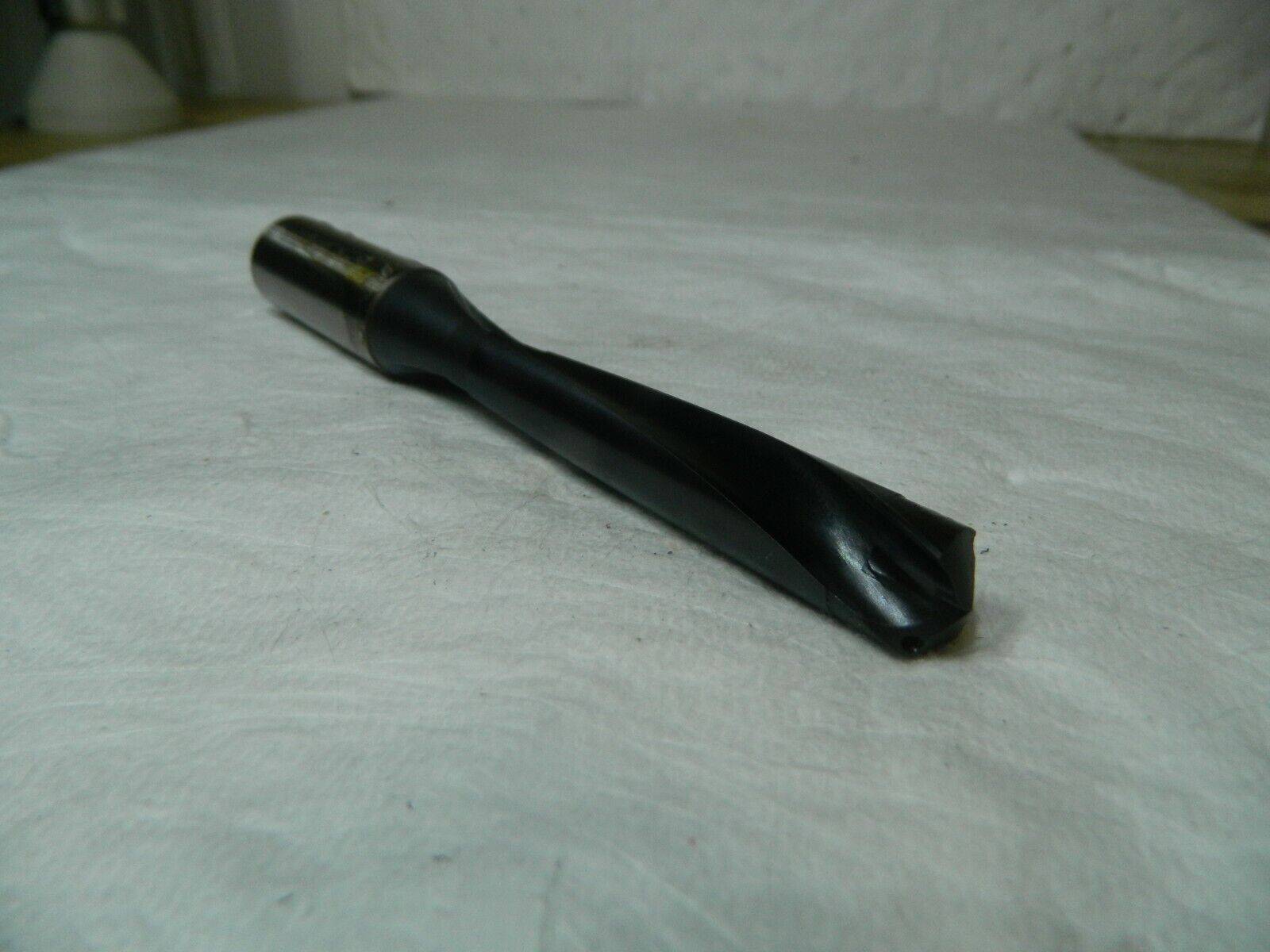

This listing is for One Carbide-Tipped Jobber Drill that is in the picture as well as described. Please ask any questions prior to buying!
Tina December 15 2020
TB 7410
Cab Kasi Bin E5
MODEL: U101541
COUNTRY/REGION OF MANUFACTURE: Germany
MPN: Does Not Apply
BRAND: Sumitomo
MSRP: 175.00
LOCATION: TB7410CabKasiBinE5
