Description
Sola/Hevi-Duty
MSRP: $300
Model: SCP30D15B-DN
Description:
Mounting Type Chassis Mount; DIN Rail
Output Wattage 30
Maximum Input Voltage 264 VAC; 375 VDC
Minimum Input Voltage 100 VDC; 85 VAC
Number of Outputs 2
Output Voltage +15/-15 VDC
Output Amperage 1
Connection Type Screw Clamp
Hold-up Time (ms) 50
Efficiency >68%
Maximum Operating Temperature (F) 149
Minimum Operating Temperature (F) -13
Ingress Protection Rating IP20
Status Indicator DC OK for B-DN Slim; Green LED Indicates
Overall Height (mm) 113
Overall Height (Decimal Inch) 4.4300
Overall Width (mm) 35
Overall Width (Decimal Inch) 1.3700
Overall Depth (mm) 68
Overall Depth (Decimal Inch) 2.6700
Protection Features Over Voltage Protection; Short Circuit Protection
Standards Met CE; cURus UL Recognized

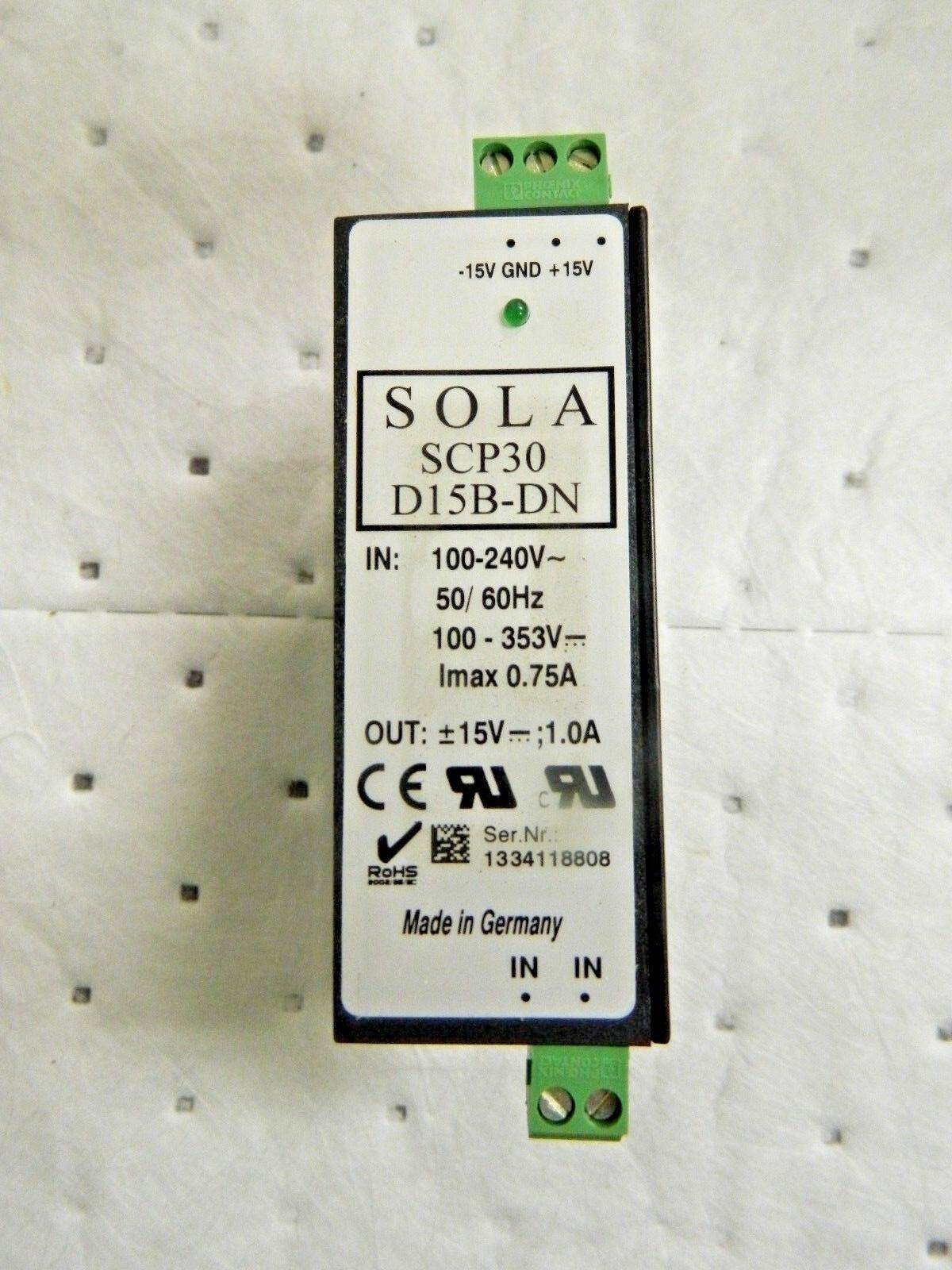

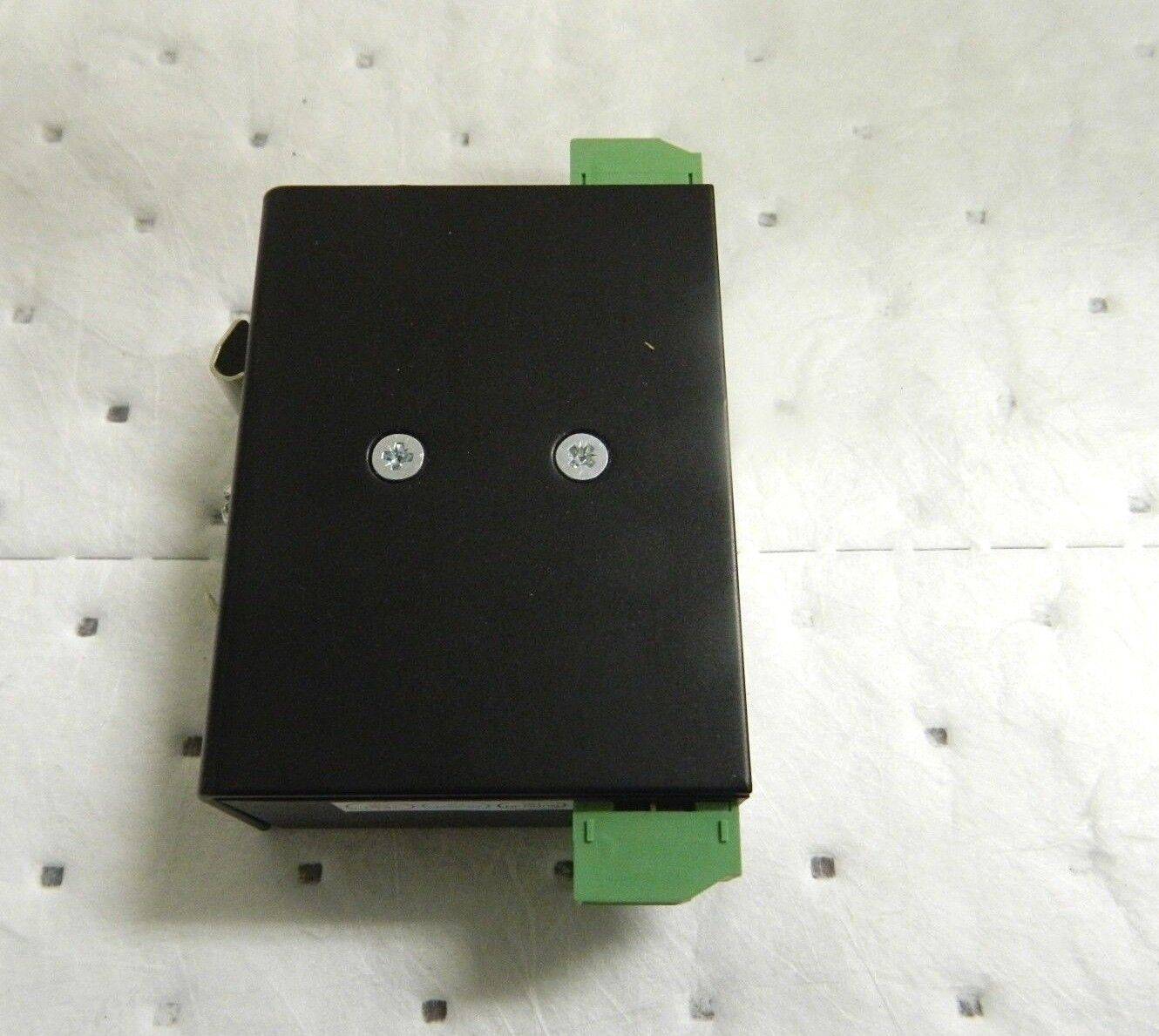

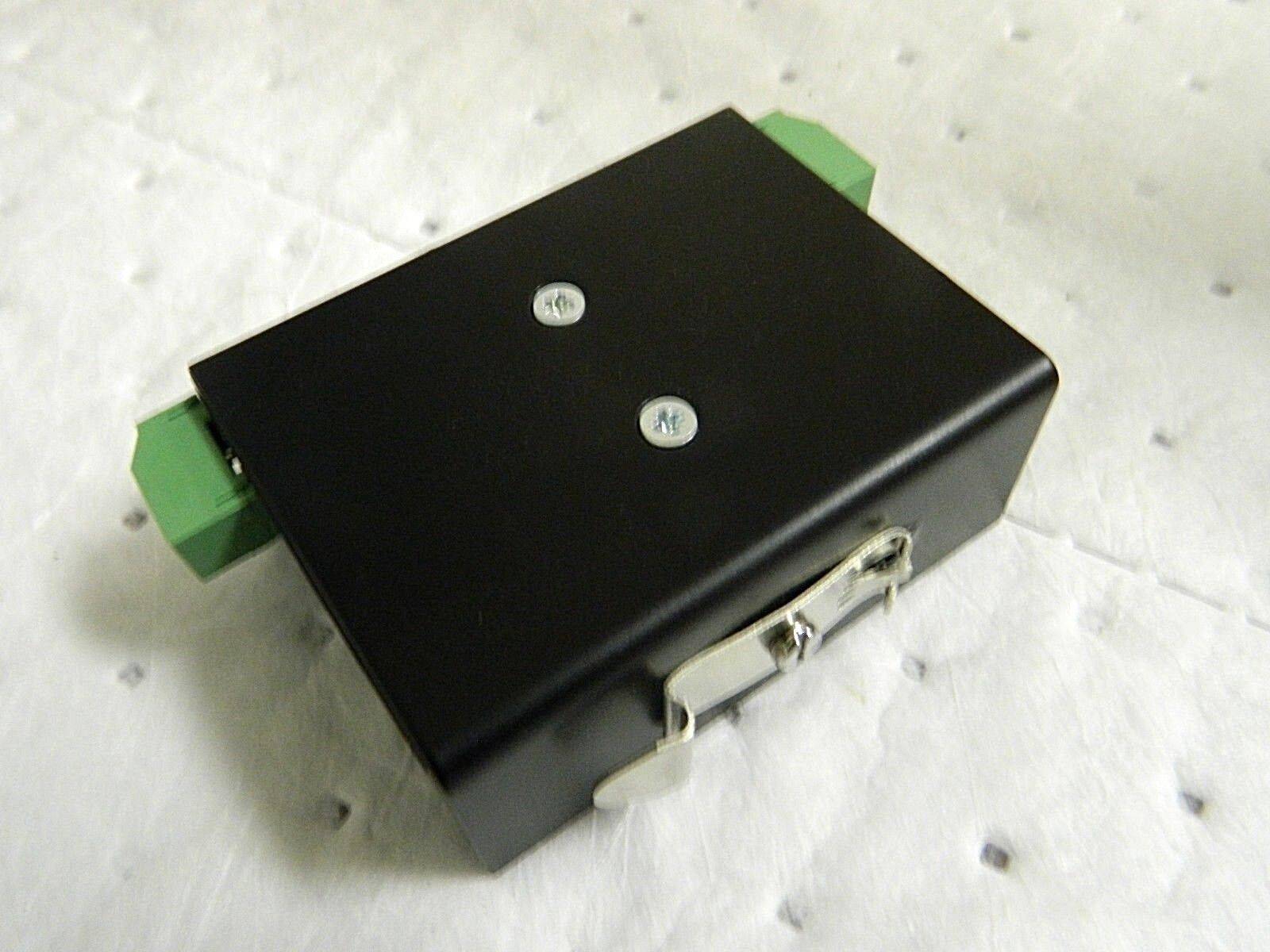

This listing is for One DIN Rail Power Supply that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Vivian August 3018
VM3838
Cab Sam Bin 30 Middle
LOCATION: VM3838cabsambin30middle
MPN: SCP30D15B-DN
MSRP: $300
COUNTRY/REGION OF MANUFACTURE: Germany
BRAND: Sola/Hevi-Duty
