Description

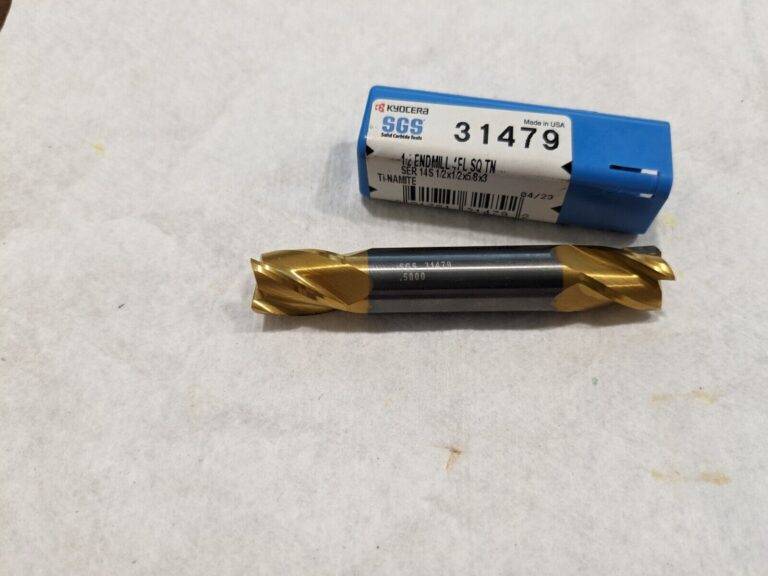

SGS Square End Mill: 1/2″ Dia, 5/8″ LOC, 4 Fl Solid Carbide 31479
MSRP: $90
- Mill Diameter (Inch) 1/2
- Mill Diameter (Decimal Inch) 0.5000
- Number Of Flutes 4
- End Mill Material Solid Carbide
- End Type Double
- Length of Cut (Inch) 5/8
- Coating/Finish Titanium Nitride
- Overall Length (Inch) 3
- Shank Diameter (Inch) 1/2
- Centercutting Yes
- Cutting Direction Right Hand
- Variable Helix No
- Variable Index No
- Helix Angle 30
- Chipbreaker No
- Extended Reach No
- Length Of Cut Range (Decimal Inch) 0.6000 – 0.7000
- Shank Type Straight-Cylindrical
- Length of Cut (Decimal Inch) 0.625
- Material Grade Micrograin
- Shank Diameter (Decimal Inch) 0.5
- Overall Length (Decimal Inch) 3
- Flute Direction Right Hand
- Flute Type Spiral
- Shank Diameter Tolerance +0.00000/-0.00043 in
- Length Type Stub
- Mill Diameter Tolerance +0.000/-0.002 in
- Series 14
- Primary Workpiece Material Code P; S; H; K; M; N
- UNSPSC Code 27112803
(Description).

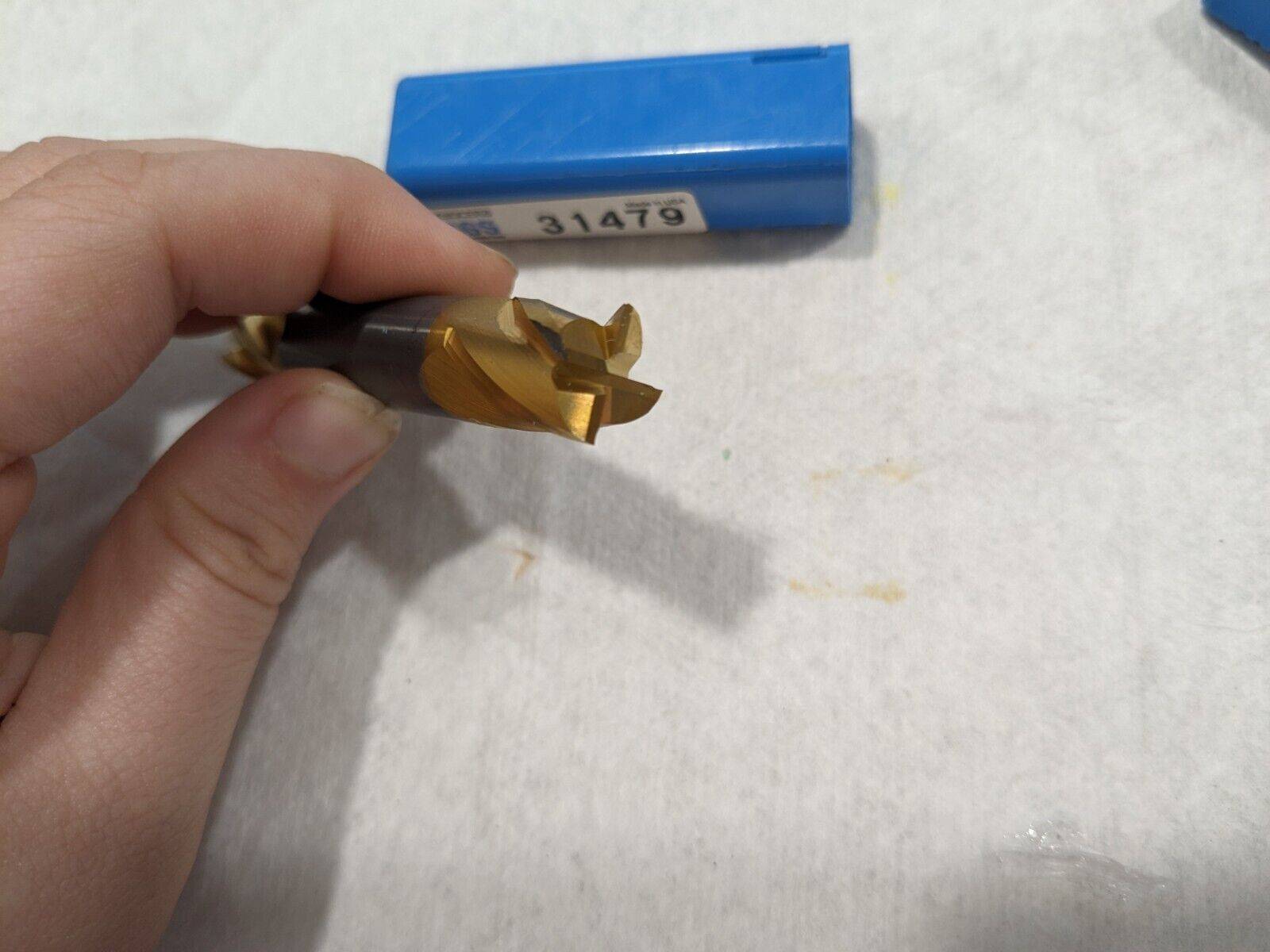

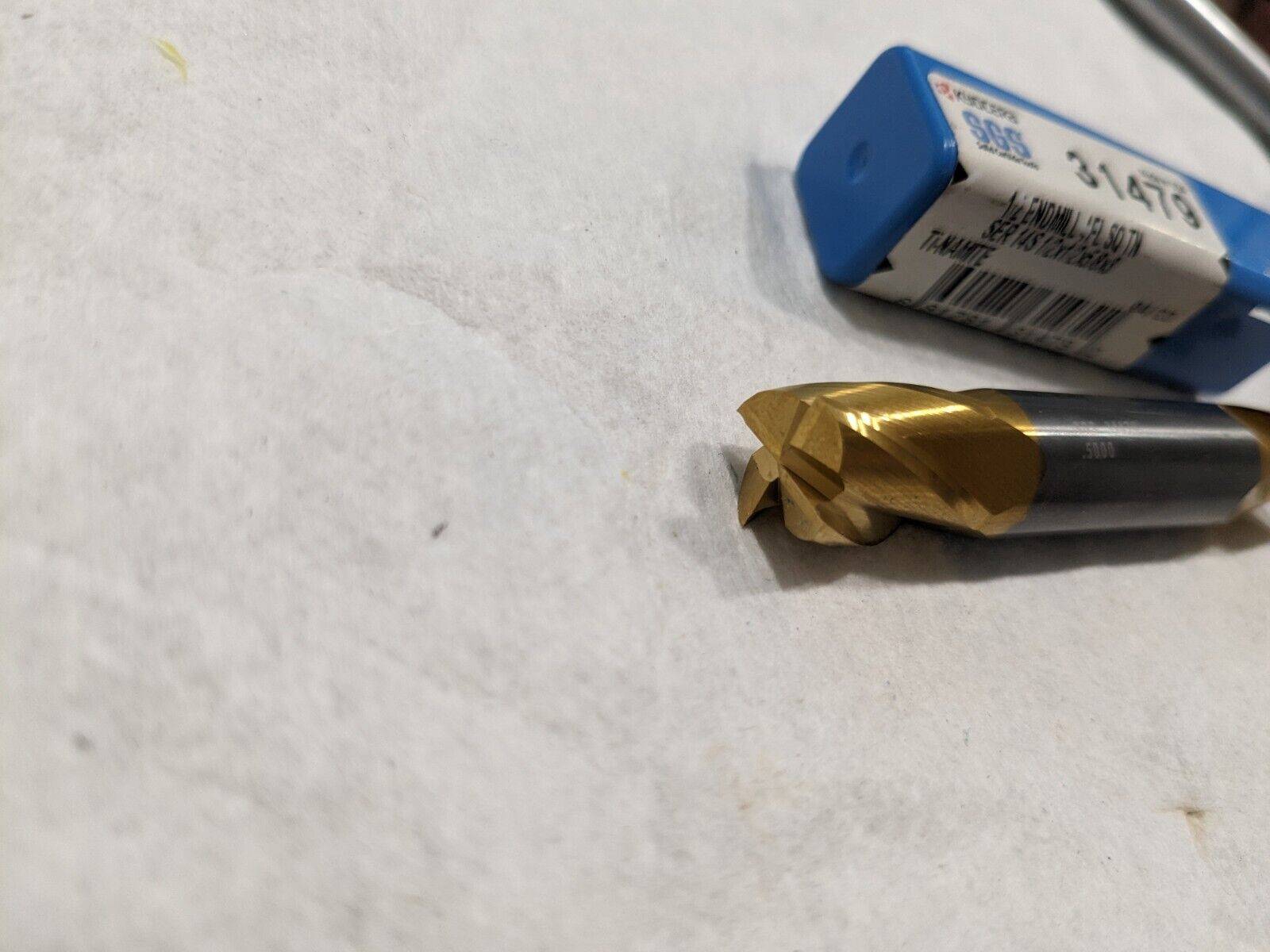

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
may 30 24
HS5542
fitzy 20
MPN: 31479
LENGTH OF CUT: 5/8 in
END MILL TYPE: Square End Mill
OVERALL LENGTH: 12 in
MILL DIAMETER: 5/8 in
SHANK DIAMETER: 5/8 in
MATERIAL: Solid Carbide
