Sgs Roughing End Mill: 3/4″ Dia, 5 Fl Carbide 37106

SGS

 Roughing End Mill: 3/4″ Dia, 5 Fl Carbide 37106
MSRP: $250

• Mill Diameter (Fractional Inch) 3/4
• Mill Diameter (Decimal Inch) 0.7500
• End Mill Material Solid Carbide
• Number Of Flutes 5
• Pitch Variable
• Length of Cut 1-1/2
• Length Of Cut (Decimal Inch – 4 Decimals) 1.5000
• Shank Diameter (Inch) 3/4
• Coating/Finish Titanium Nitride
• Overall Length (Decimal Inch) 4.0000
• Centercutting No
• Shank Type Straight-Cylindrical
• Extended Reach No
• Corner Radius (Decimal Inch) 0.1200
• Maximum Helix Angle 37
• Single Or Double End Single
• Cutting Direction Right Hand
• Flute Direction Right Hand
• Length Type Regular
• Flute Type Spiral
• Shank Diameter Tolerance h6
• Mill Diameter Tolerance -0.000000 to -0.002000 in
• Corner Radius Tolerance +0.00000 to -0.00200 in
• Overall Length (Inch) 4
• Series Z5CR

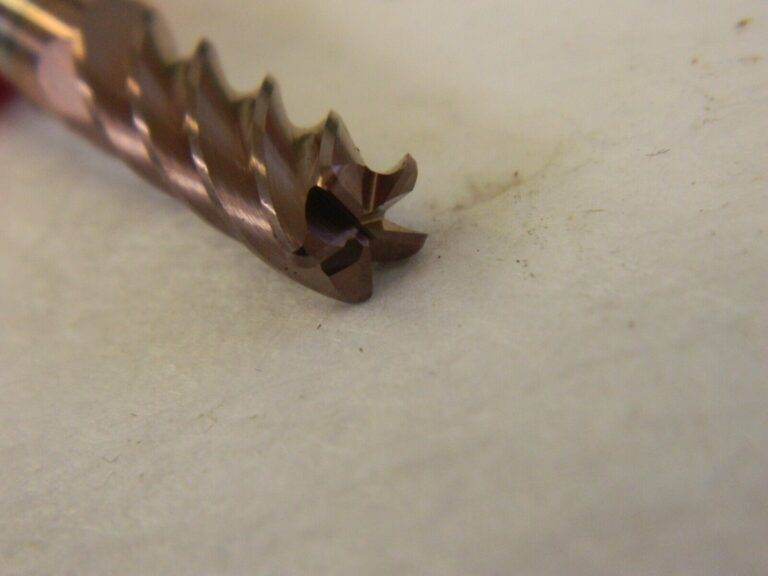

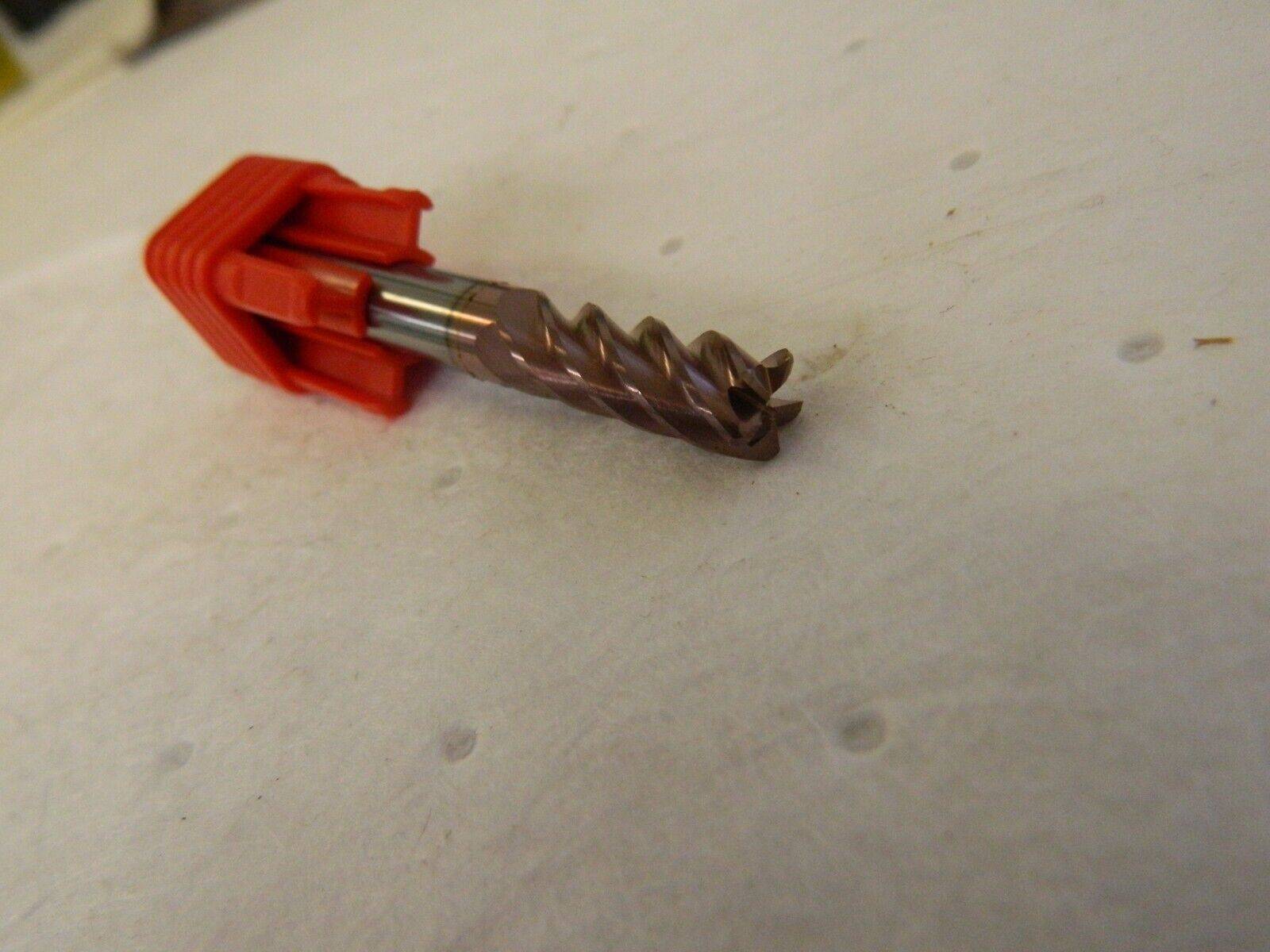

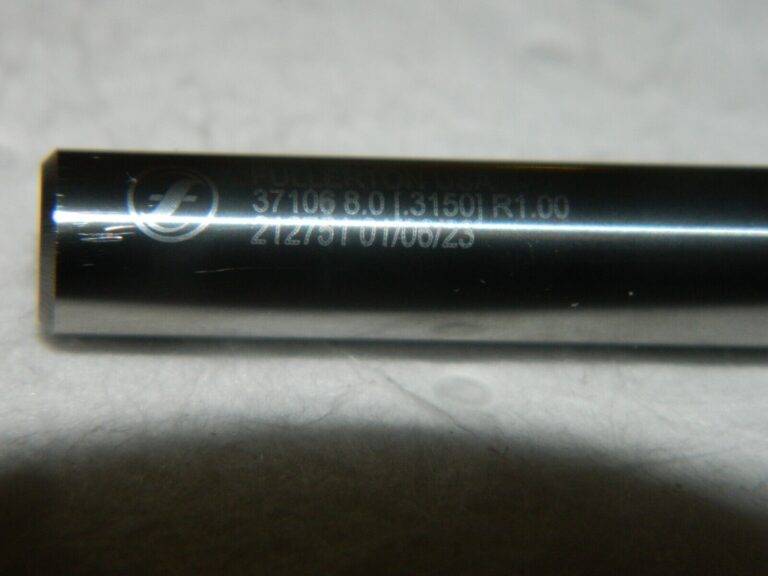

 Please review photos, comes as shown.
