Description
SGS Micro Drill Bits 8pk: 2.18 mm Dia 07195
MSRP: $60
- Drill Bit Size (Wire) #44
- Drill Bit Size (mm) 2.18
- Drill Bit Size (Decimal Inch) 0.0860
- Tool Material Solid Carbide
- Flute Length (Decimal Inch) 0.4000
- Flute Length (mm) 10.20
- Coating/Finish Ti-NAMITE-A
- Coolant Through No
- Drill Point Angle 130
- Cutting Direction Right Hand
- Maximum Drilling Depth (Decimal Inch) 0.4000
- Number Of Flutes 2
- Series M105
- Overall Length (Decimal Inch) 1.5000
- Flute Type Spiral
- Shank Type Straight-Cylindrical
- Point Type Four Facet
- Tool Application Very Small Hole Drilling
- Web Thinning Web-Thinned
- Drill Bit Diameter Tolerance +0.0000 to +0.0003 in
- Primary Workpiece Material Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
- Primary Workpiece Material Code P; S; H; K; M; N
- Standards KSPT ISO
- Shank Diameter (Decimal Inch) 0.1250
- Shank Diameter (mm) 3.00
- Shank Diameter (Inch) 1/8
- Shank Length (Decimal Inch) 1.1000
- Flute By Diameter Ratio 4xD
- Spiral Type Regular
- UNSPSC Code 23241600
(Description).

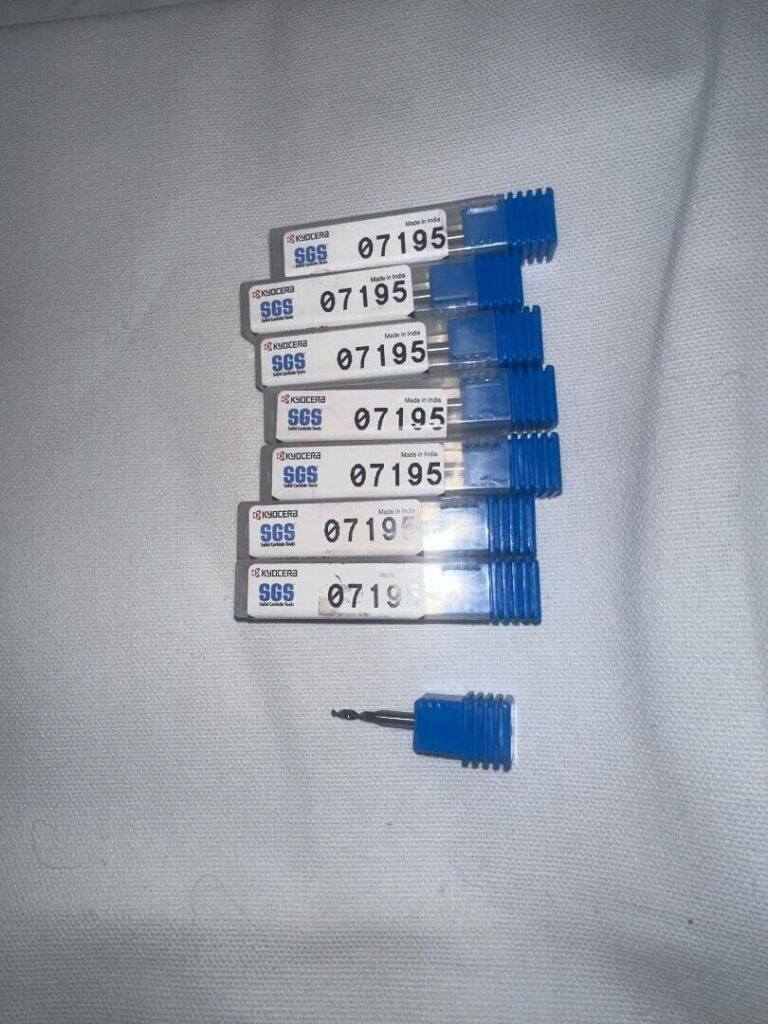

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date
Lister#
Loc
BRAND: SGS
MPN: 07195
