Description
SGS Micro Drill Bits 4ct 0.0106″ Dia 118 deg Pt solid carbide 07746
MSRP: $50
- Drill Bit Size (Decimal Inch) 0.0106
- Tool Material Solid Carbide
- Flute Length (Decimal Inch) 0.1496
- Flute Length (mm) 3.80
- Coating/Finish Bright/Uncoated
- Coolant Through No
- Drill Point Angle 118
- Cutting Direction Right Hand
- Maximum Drilling Depth (mm) 3.80
- Number Of Flutes 2
- Series M226
- Overall Length (mm) 38
- Flute Type Spiral
- Shank Type Straight-Cylindrical
- Point Type Four Facet
- Tool Application Very Small Hole Drilling
- Web Thinning Web-Thinned
- Drill Bit Diameter Tolerance +0.00 to ?0.01 mm
- Primary Workpiece Material Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
- Primary Workpiece Material Code P; S; H; K; M; N
- Standards KSPT ISO
- Shank Diameter (Decimal Inch) 0.1181
- Shank Diameter (mm) 3.00
- Shank Length (mm) 34.20
- Flute By Diameter Ratio 14xD
- Spiral Type Regular
- UNSPSC Code 23241600

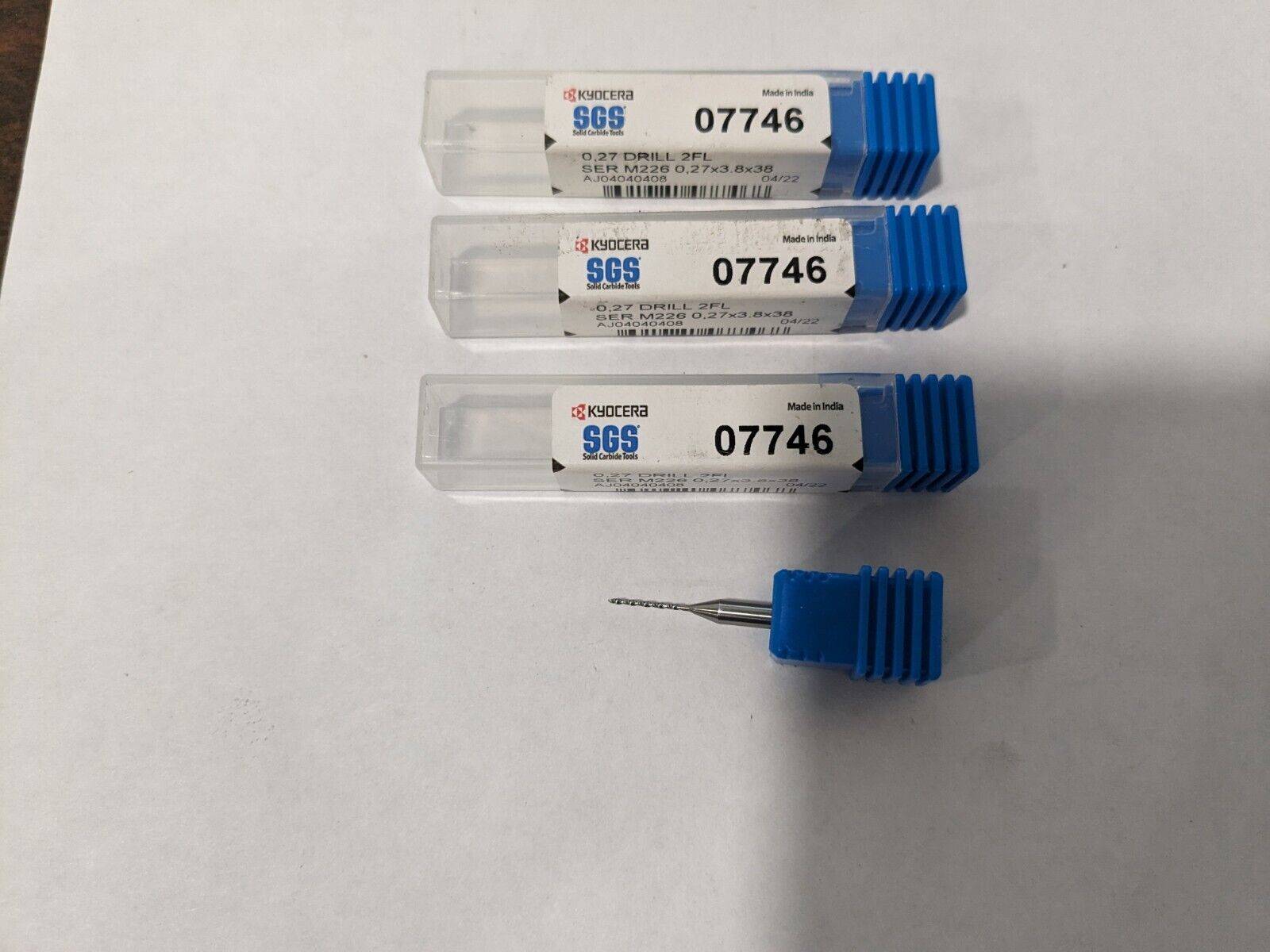

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
apr 18 24
HS5112
Ace S2-2
BRAND: SGS
UNIT TYPE: Unit
MPN: 07746
ITEM TYPE: n/a
COUNTRY/REGION OF MANUFACTURE: Unknown
UNIT QUANTITY: n/a
CALIFORNIA PROP 65 WARNING: n/a
