Description
SECO Turning Insert: VNMG434-MR4-48 883, Solid Carbide 10pk 00009692
MSRP: $80
- Insert Style VNMG
- Insert Size Code 434
- Insert Shape Diamond 35°
- Included Angle 35 degree
- Inscribed Circle (Decimal Inch) 0.5000
- Corner Radius (Decimal Inch) 0.0630
- Insert Material Carbide
- Manufacturer Grade 883
- Coating/Finish Bright/Uncoated
- Relief Angle 0 °
- Wiper Edge No
- Insert Thickness (Decimal Inch) 0.1874
- Insert Hand Neutral
- Number Of Cutting Edges 4
- Insert Shape Code V
- Corner Radius (Inch) 1/16
- Hole Diameter (Decimal Inch) 0.2028
- Maximum Depth of Cut (Decimal Inch) 0.8031
- Inscribed Circle (Inch) 1/2
- Inscribed Circle (mm) 12.70
- Insert Holding Method Pin; Clamp; Lever Lock
- Width (Inch) 1/2 in
- Insert Thickness (Inch) 3/16
- Clearance Code N
- Tolerance Code M
- Series VNMG-MR4
- Coating Process Uncoated
- Length Range (Decimal Inch) 0.7000 – 10.0000
- Rake Negative
- Insert Length (Decimal Inch) 1.7322
- Primary Workpiece Material Superalloys & Titanium
- Primary Workpiece Material Code S
- Secondary Workpiece Material Code H; K; M; N
- Iso Code VNMG220416-MR4
- Standards ISO; ANSI
- Manufacturers Catalog Number 00009692
- Material Grade S20; S30; S10
- Proprietary Coating Designation Uncoated
- UNSPSC Code 23242105
- Lead Angle 35 degree
- Coating Classification Uncoated
- Chip Breaker MR4
- Cutting Edge Style T-Land
- Industry Standard Number VNMG434-MR4
- Width (Decimal Inch – 4 Decimals) 0.5000 in
- Multi-Use Tool Yes
- Full Radius No
- Multi-Use Application Facing; Profiling; Turning; Back Turning

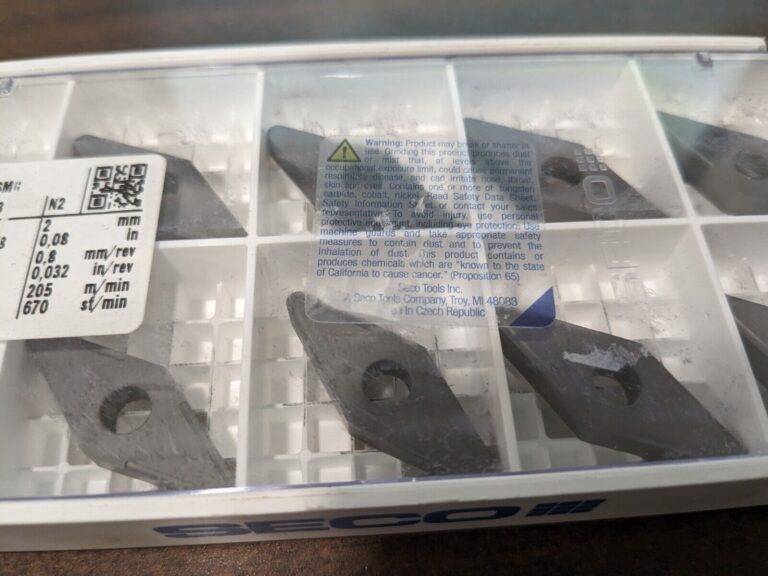

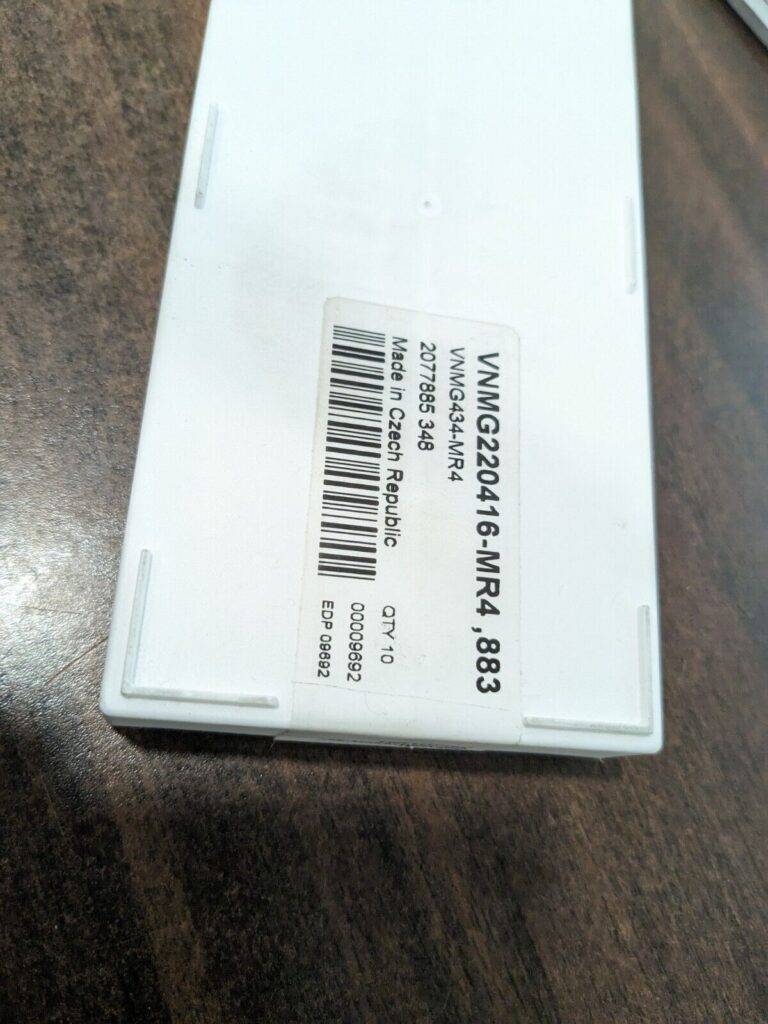

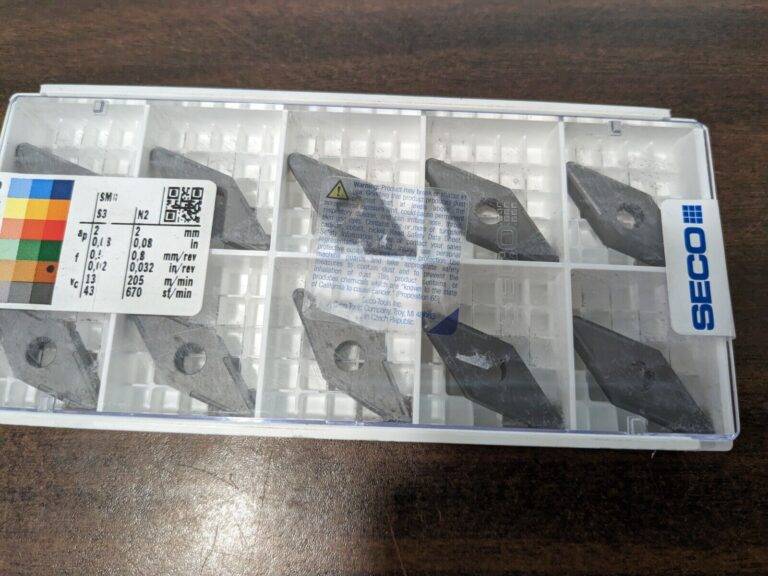

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
feb 19 24
HS443
moon 10
BRAND: SECO
INSERT MATERIAL: Carbide
MPN: 00009692
INSERT TYPE: Turning Insert
