Description
SECO Turning Insert 2pk: SNMN 222S CBN300, PCBN 00097859
MSRP: $230
- ANSI Insert Code SNMN222
- ISO Insert Code SNMN060308
- Relief Angle 0
- Insert Style SNMN
- Corner Radius (Inch) 1/32
- Corner Radius (Decimal Inch) 0.0315
- Included Angle 90
- Manufacturer Grade CBN300
- Coating/Finish Bright/Uncoated
- Wiper Edge No
- Insert Hand Neutral
- Insert Thickness (Inch) 1/8
- Insert Thickness (Decimal Inch) 0.1252
- Series SNMN-Flat Top
- Inscribed Circle (Decimal Inch) 0.2500
- Inscribed Circle (Inch) 1/4
- Insert Material PCBN
- Insert Shape S – Square
- Chip Breaker Operation Flat Top
- Grade Characteristics Cast Iron (K) – High Wear-Resistance to High Toughness
- Side Clearance Negative
- Number Of Cutting Edges 8
- Insert Shape Code S
- Maximum Depth of Cut (Decimal Inch) 0.0752
- Insert Holding Method Clamp
- Width (Inch) 1/4
- Clearance Code N
- Tolerance Code M
- Coating Process PCBN
- Length Range (Decimal Inch) 0.0000 – 0.3000
- Rake Negative
- Insert Length (Decimal Inch) 0.2500
- Insert Length (Inch) 1/4
- Primary Workpiece Material Cast Iron
- Primary Workpiece Material Code K
- Secondary Workpiece Material Hard Material
- Secondary Workpiece Material Code H
- Iso Code SNMN060308S
- Standards ISO; ANSI
- Manufacturers Catalog Number 00097859
- Material Grade K20; K30; K10; K01
- Proprietary Coating Designation Uncoated
- Lead Angle 90
- Coating Classification Uncoated
- Chip Breaker Flat Top
- Rake Angle 0
- Cutting Edge Style Honed; Chamfered
- Industry Standard Number SNMN222S
- Width (Decimal Inch – 4 Decimals) 0.2500
- Width (mm – 2 Decimals) 6.35
- Multi-Use Tool Yes
- Full Radius No
- Multi-Use Application Facing; Turning; Boring
- ANSI Size Code 222
- ISO Size Code 060308
- UNSPSC Code 23242105
- Insert Size Code 222
- Country of Origin Sweden
- Ordered as Part # 97859
(Description).

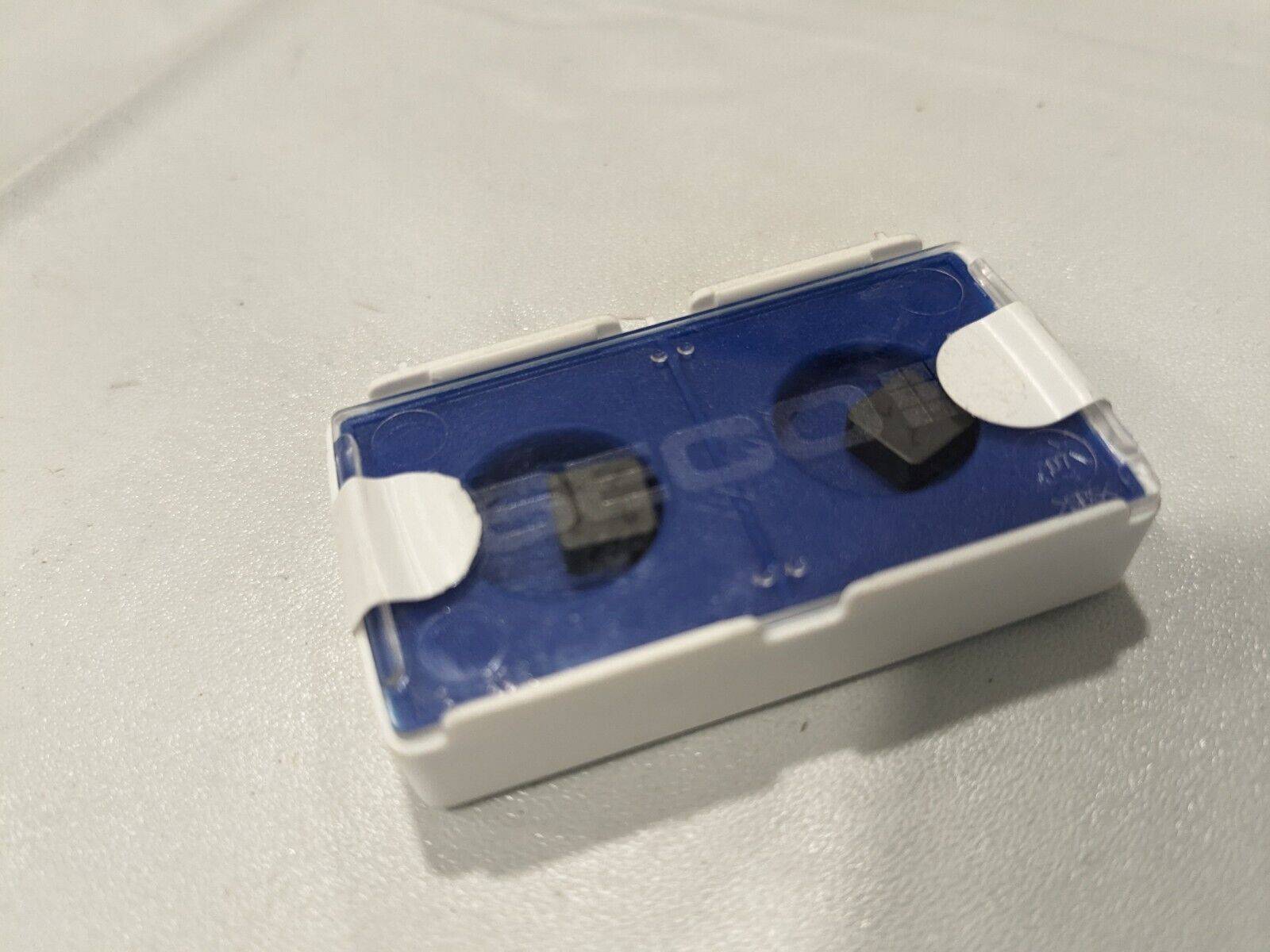

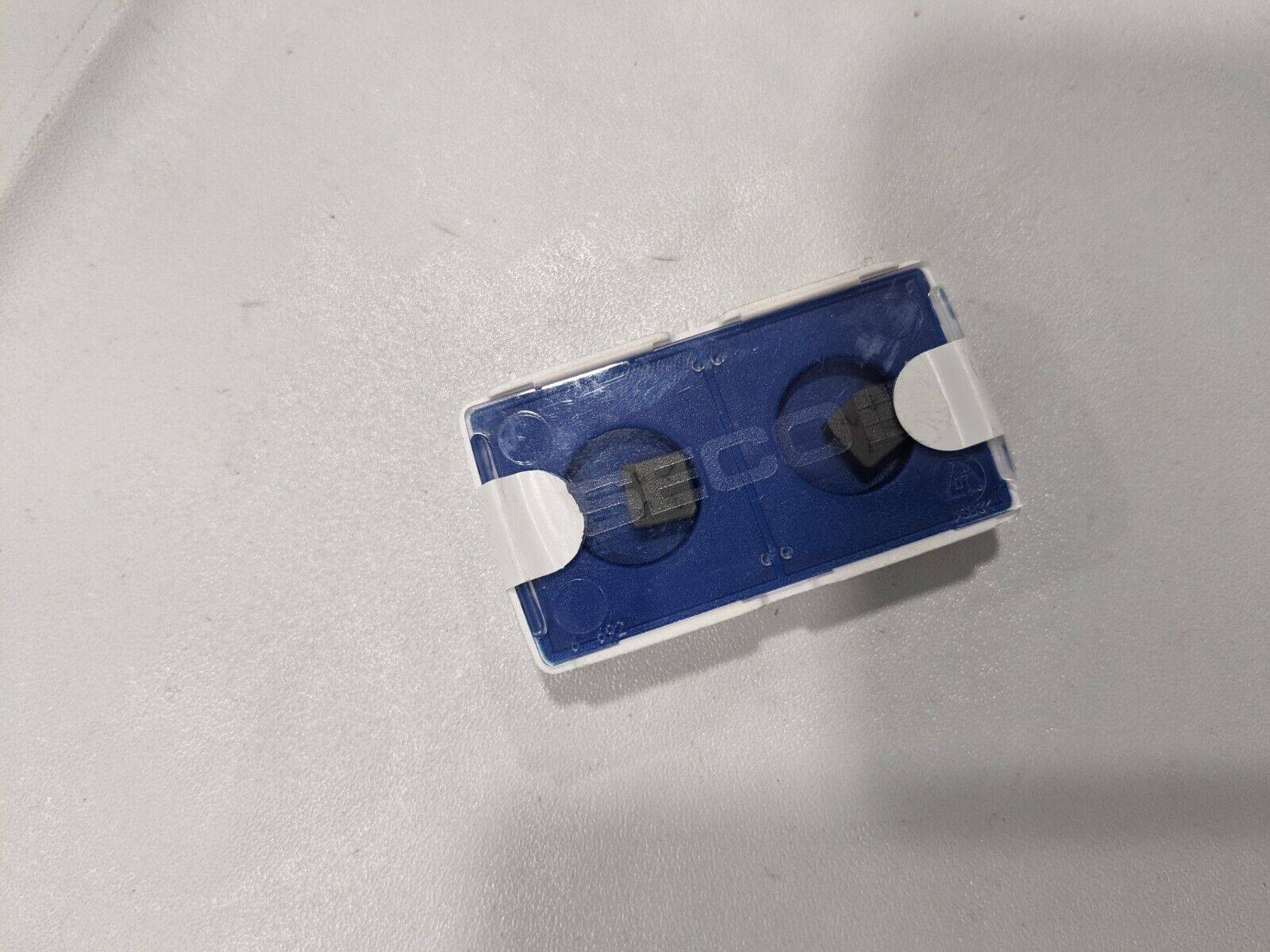

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
January 22nd 2025
HS 8280
Kasi G4
BRAND: SECO
UNIT TYPE: Unit
INSERT MATERIAL: CBN
MPN: 00097859
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: Unknown
UNIT QUANTITY: see description
CALIFORNIA PROP 65 WARNING: See description
